HX6101S-4M9-CAT1EG-MF-B
4MP HD Integrated Camera Module · 4G Camera Module
- Maker:
- Haixin Weishi
- SoC:
- Hi3516CV610
- Sensor:
- SC4336P
- Listed:
- 2025
Haixin Weishi
4MP HD Integrated Camera Module
The 4MP integrated camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.264 and H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support remote monitoring with mobile phones.
Features
- High sensitivity, high S/N CMOS image sensor
- Using Hi3516CV610
- The highest pixel can reach 400W, and the highest resolution can reach 4MP(2560x1440)
- H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile
- phone monitoring
- Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，
- DDNS，NTP，UPNP，RTSP and so on.
- Support humanoid recognition and vehicle recognition
- Support alarm recording to TF card
- Supports both static IP and dynamic IP (DHCP)
- Support up to 6 users browsing simultaneously (3 users per stream)
- Provide motion detection alarm function (area, sensitivity can be set)
- Support Micro SD card, max 128GB Micro SD card
- Support mobile phone downloading and playback SD card recordings
| Main processor | Hi3516CV610 |
|---|---|
| Image sensor | 1/3”CMOS sensor |
| IR-cut | support |
| Video compression | Support H.265, H.264 High Profile,H.264 Main Profile and H.264 Baseline |
| Audio compression | G.726/G.711 |
| Maximum image size | 400W(2560x1440) |
| Main stream | 400W（2560x1440） |
| Sub stream | 640x360 |
| Frame rate | 400W 20fps(50HZ), 20fps(60HZ) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| ONVIF | Support ONVIF 2.4 protocol |
| Size | 38x11.5x56mm (length, width and height) |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power supply | DC12V 2A |
| Power consumption | 1.6W |

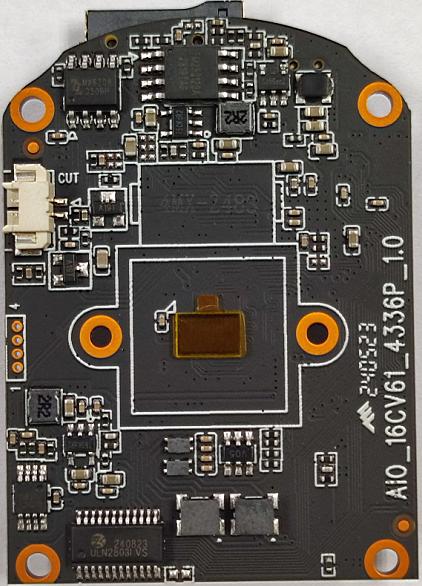

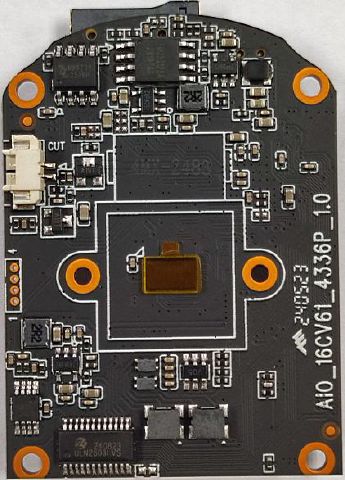

| PCB marking | AIO_16CV61_4336P_1.0 |
| Sensor (from the PCB marking) | SC4336P |
Photos
Files
- catalogue_camhi_20260409.pdf (document, 2.2 MB)
