HX9101S-5M12G-38-B
5MP HD Camera Module · IP Camera Module
- Maker:
- Haixin Weishi
- SoC:
- T41NQ
- Listed:
- 2025
Haixin Weishi
5MP HD Camera Module
The 5MP low lux HD camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support ONVIF, support RTSP, support alarm pictures upload to FTP server and remote monitoring with mobile phones.
Features
- High sensitivity, high S/N CMOS image sensor
- Using Ingenic T41NQ
- The highest pixel can reach 500W, and the highest resolution can reach (2880x1620)
- H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile
- phone monitoring
- Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，
- DDNS，NTP，UPNP，RTSP and so on.
- Support ONVIF protocol
- Support manufacturer DDNS and third-party DDNS
- Support sending alarm images via email
- Support uploading alarm pictures and alarm videos to FTP server
- Support timed capture of images to FTP server
- Support both static IP and dynamic IP (DHCP)
- Support P2P Plug and Play
- Support IE, Google, and Firefox browsers
- Support up to 6 users browsing simultaneously (3 users per stream)
- Provide motion detection alarm function (area, sensitivity can be set)
- Support humanoid recognition, vehicle recognition, and pet recognition
- Support Micro SD card, Max 128GB Micro SD card
- Support APP downloading and replaying SD card recordings
- Support alarm recordings upload to cloud (requires to purchase cloud storage package)
| Main processor | Ingenic T41NQ |
|---|---|
| Image sensor | 1/2.7”CMOS sensor |
| IR-cut | support |
| Video compression | Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
| Audio compression | G.711 |
| Maximum image size | 500W(2880x1620) |
| Main stream | 500W(2880x1620)，400W（2560x1440） |
| Sub stream | 800x600，640x480，800x480、640x352 |
| Frame rate | 12.5fps(50HZ), 15fps(60HZ) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| ONVIF | Support ONVIF 2.4 protocol |
| Wi-Fi | WiFi 802.11b/g/n Wireless network interface |
| Size | (length, width）38x38 |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power supply | DC12V 2A |
| Power consumption | 1.5W |

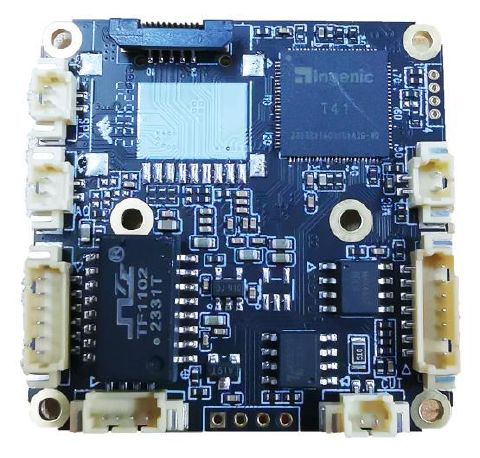

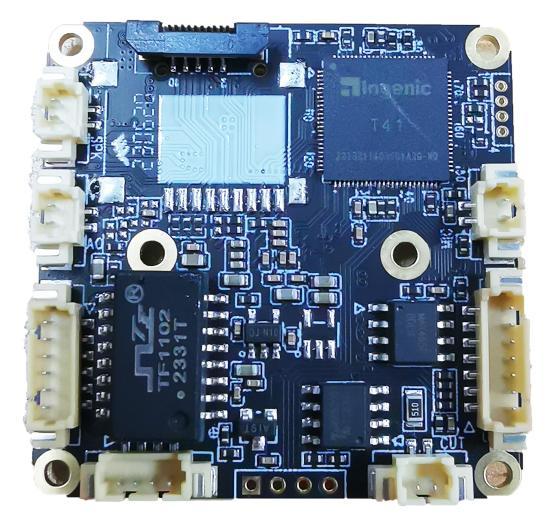

Photos
Files
- catalogue_camhi_20260409.pdf (document, 2.2 MB)
