HX9101SW4-4KV-MF-4
4K 8MP Integrated Camera Module · IP Camera Module
- Maker:
- Haixin Weishi
- SoC:
- T41NQ
- Sensor:
- OS08C10
- Listed:
- 2025
Haixin Weishi
4K 8MP Integrated Camera Module
The 4K low lux HD 38 camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.
Features
- High sensitivity, high S/N CMOS image sensor
- Using T41NQ
- The highest pixel can reach 800W, and the highest resolution can reach 4K(3840x2160)
- H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile
- phone monitoring
- Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，
- DDNS，NTP，UPNP，RTSP and so on.
- Support ONVIF protocol
- Support manufacturer DDNS and third-party DDNS
- Support sending alarm images via email
- Support uploading alarm pictures and alarm videos to FTP server
- Support timed capture of images to FTP server
- Support both static IP and dynamic IP (DHCP)
- Support IE, Google, and Firefox browsers
- Support up to 6 users browsing simultaneously (3 users per stream)
- Provide motion detection alarm function (area, sensitivity can be set)
- Supports humanoid recognition, vehicle recognition, and pet recognition
- Support Micro SD card, max 128GB Micro SD card
- Support mobile phone downloading and playback SD card recordings
| Main processor | T41NQ |
|---|---|
| Image sensor | 1/2.8”08C10 CMOS sensor |
| Lens | M12,4mm HD lens |
| IR-cut | support |
| Video compression | Support H.265 Main Profile |
| Audio compression | G.711 |
| Maximum image size | 4K(3840x2160) |
| Main stream | 4K(3840x2160),4M(2560x1440),2M(1920x1080) |
| Sub stream | 720P(1280x720),Q720P(640x352) |
| Frame rate | 10fps(50HZ), 10fps(60HZ) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| ONVIF | Support ONVIF 2.4 protocol |
| Wi-Fi | WiFi 802.11b/g/n dual band wireless network |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power supply | DC12V 2A |
| Power consumption | 3W |
| PCB marking | AIO_T41Q_08C10_1.0 |
| Sensor (from the PCB marking) | OS08C10 |

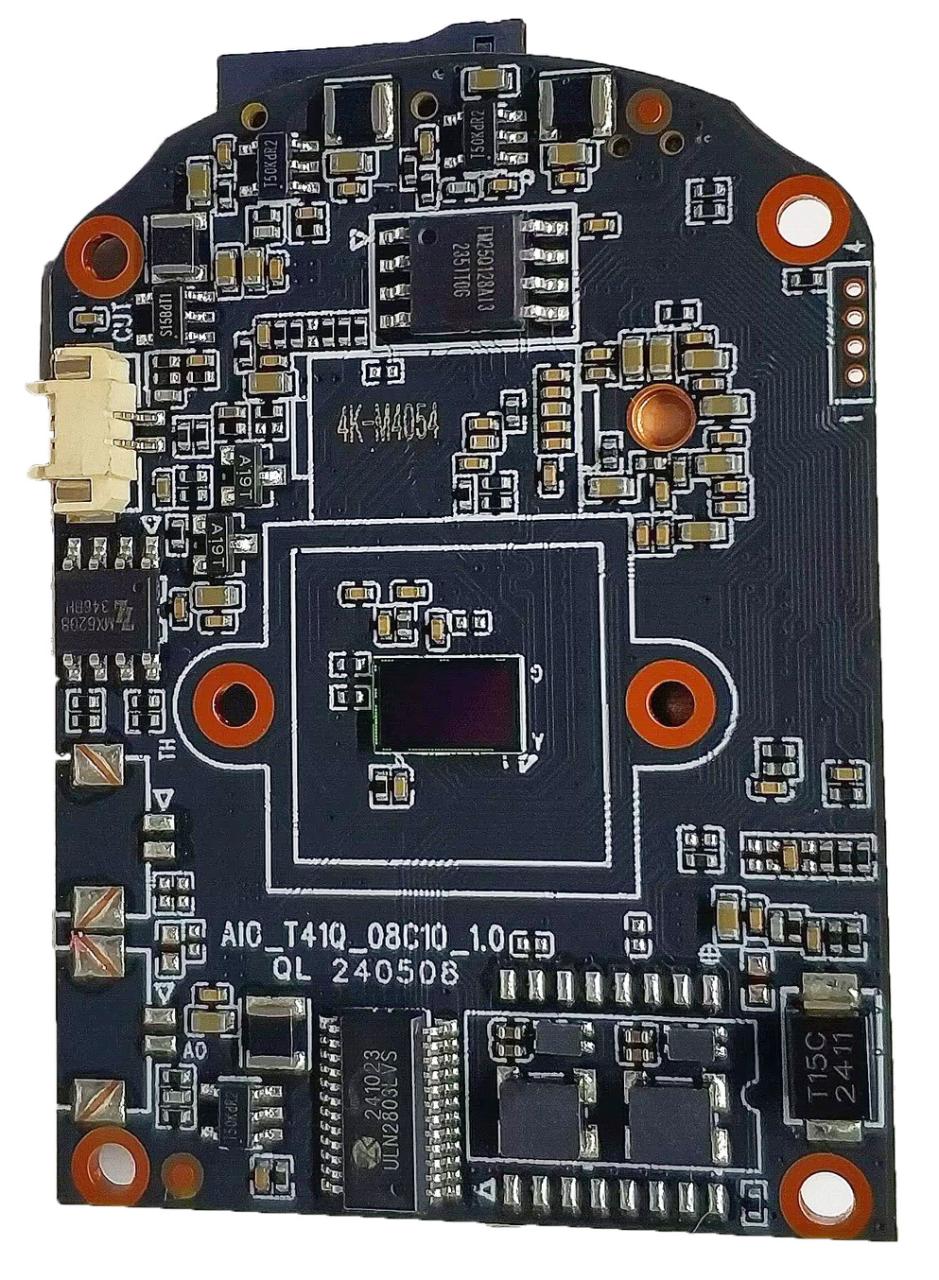

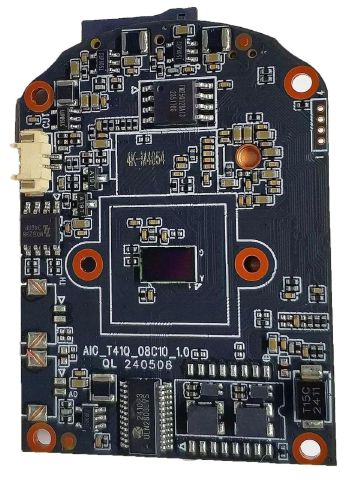

Photos
Files
- catalogue_camhi_20260409.pdf (document, 2.2 MB)
