BMLCKL5AD
Network Camera
- Maker:
- Longse
- Listed:
- 2023
Longse
5MP Outdoor Active Deterrence Bullet Network Camera
Features
- High quality imaging with 5MP resolution
- 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
- Support H.264/H.264+/H.265/H.265+ Compression
- Support Warm light LED 4000K and red & blue strobe light
- Housing:Metal, IP67
| Series | Active Deterrence |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| Resolution | 5MP |
| Effective Pixels | 2616(H)*1964(V) |
| Compression | H.264/H.264+/H.265/H.265+ |
| Audio Compression | G711A/U,AAC,MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| Focal Length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 72°, diagonal FOV 124°; 4 mm, horizontal FOV 80°, vertical FOV 56°, diagonal FOV 107° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focus Control | Fixed |
| Aperture | F1.6 |
| Pixels | 5MP |
| Supplement Light | IR:4PCS, Warm light:4PCS |
| Supplement Light Distance | IR:50m, Warm light:40m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 2592*1944@30fps |
| Main Stream 2 | 2560*1440@30fps |
| Main Stream 3 | 1920*1080@30fps; 1280*720@30fps |
| Sub Stream 1 | 1280*720@30fps |
| Sub Stream 2 | 720*480@30fps |
| Sub Stream 3 | N/A |
| Tri Stream | N/A |
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Intelligent Analysis | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human and vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human and vehicle movement), Illegal Parking(based on vehicle shape), Heat Map |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC, Scene Change Detection |
| Full Color | Support |
| Corridor Pattern | Support |
| Defog Mode | N/A |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Built in Mic+Built in Speaker |
| Alarm | Default: Alarm I/O |
| SD Card Slot | External, Support Max 512GB |
| RS485 | N/A |
| Housing | Metal,IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 900mA |
| Dimension | 95 x 88 x 268 mm |
| Weight | 1156g |

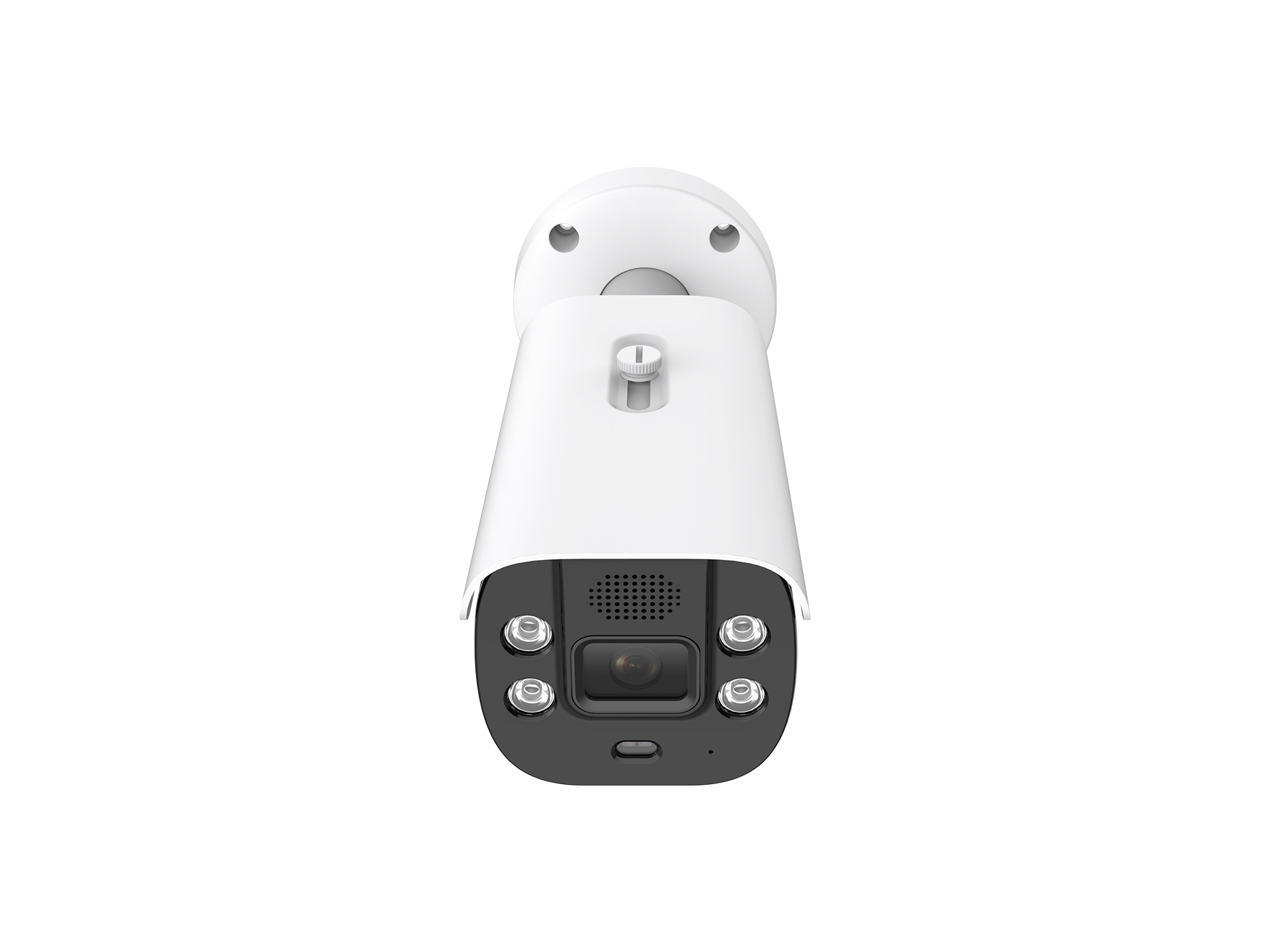

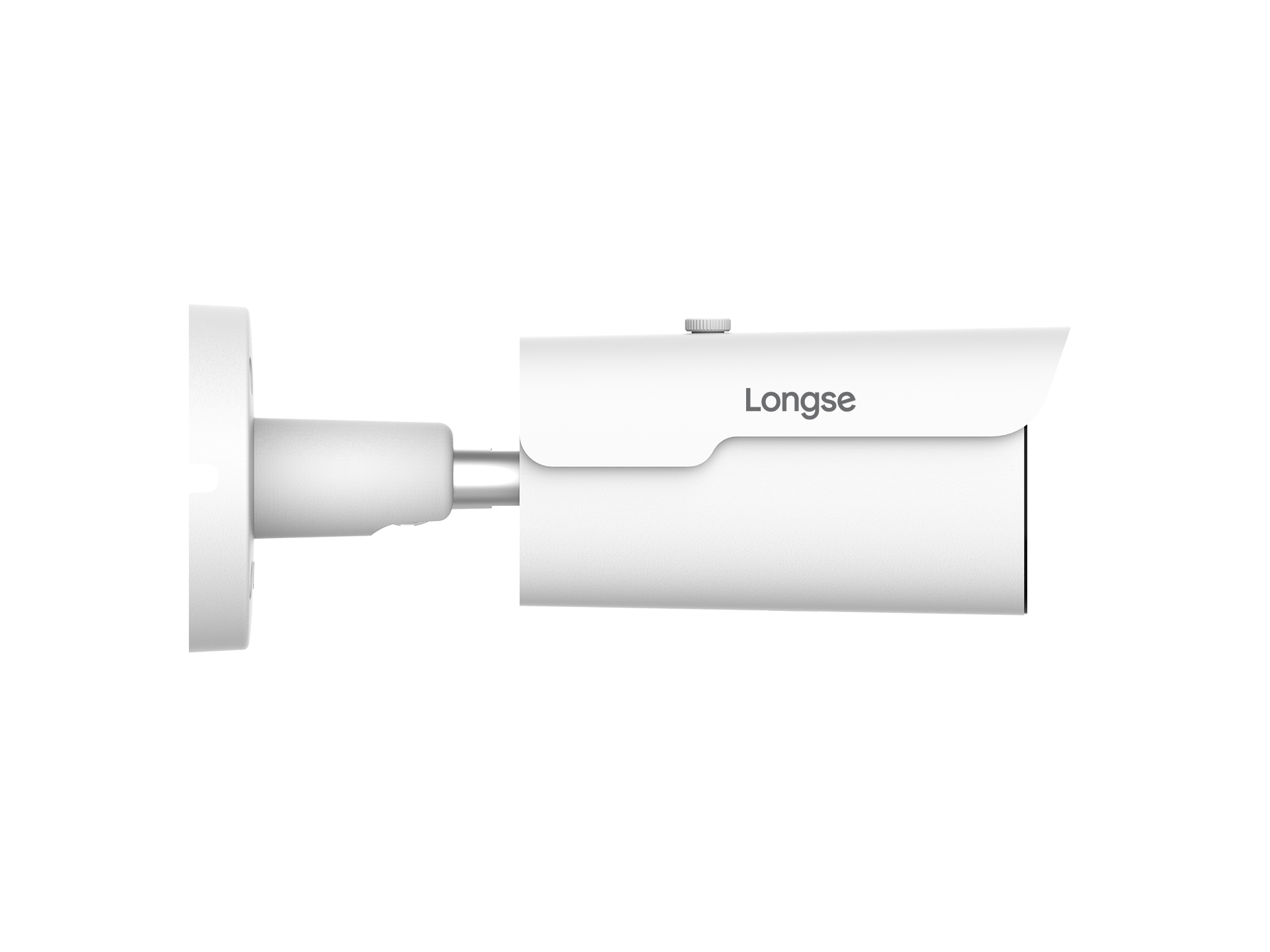

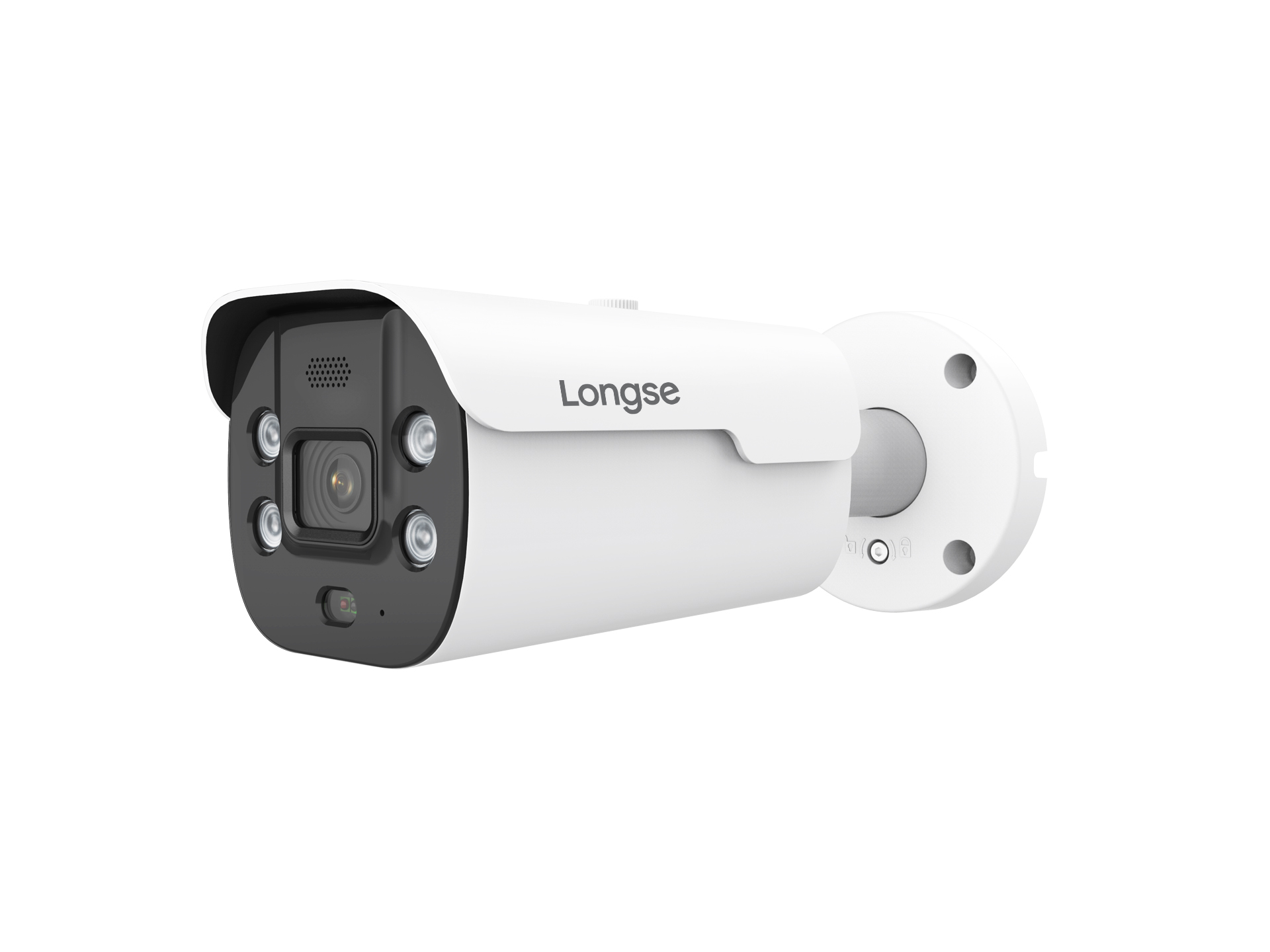

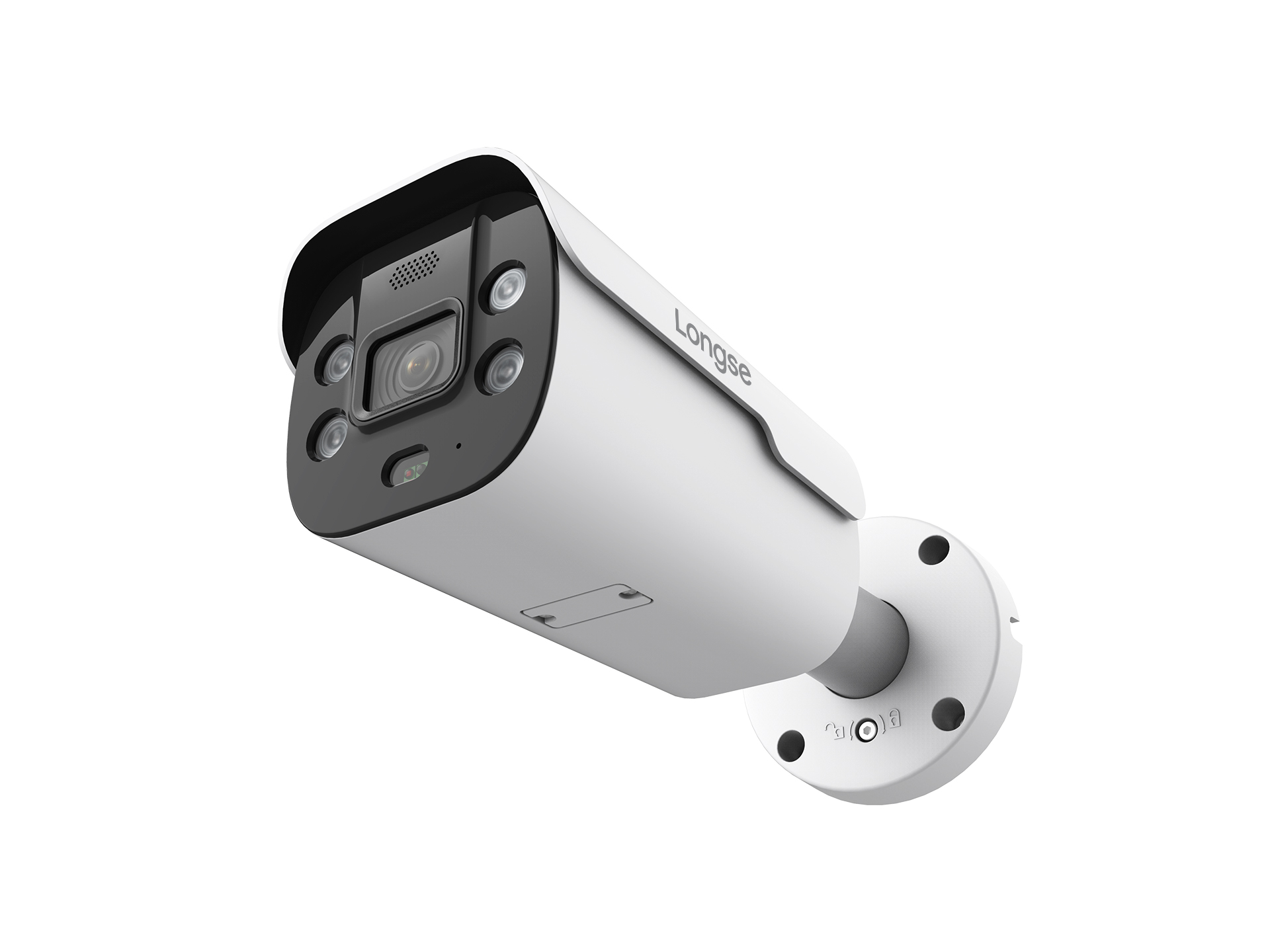

Photos
