BMMDNP8AC
Network Camera
- Maker:
- Longse
- Listed:
- 2026
Longse
8MP AI ISP Fixed Bullet Network Camera
Features
- 1/1.8"SONY Sensor,Novatek SOC,120dB HDR
- Main Stream: 4MP@30fps(Default)/60fps/90fps,
- 1080P@30fps(Default)/60fps/90fps,720P@30fps(Default)/60fps/90fps,
- With Internal POE, Built-in Mic,External SD Card Slot, Alarm I/O
| Series | AI ISP |
|---|---|
| Image Sensor | 1/1.8" SONY Starvis2 Back-illuminated CMOS sensor |
| Resolution | 8MP |
| Effective Pixels | 3856(H)*2180(V) |
| Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| Audio Compression | G711A/U,AAC,MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.0001 Lux@(F1.0, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Focal Length & FOV | 4 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 131°; 6 mm, horizontal FOV 92°, vertical FOV 49°, diagonal FOV 111° |
| Lens Type | Fixed focal lens, 4 and 6 mm optional |
| Focus Control | Fixed |
| Aperture | F1.0 |
| Pixels | 8MP |
| Supplement Light | IR: 3PCS, Warm light: 3PCS |
| Supplement Light Distance | IR: 50m, Warm light: 40m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 3840*2160@60fps, 3200*1600@60fps |
| Main Stream 2 | 2560*1440@60fps, 1920*1080@60fps |
| Main Stream 3 | 1280*720@60fps |
| Sub Stream 1 | 1280*720@30fps |
| Sub Stream 2 | 720*480@30fps |
| Sub Stream 3 | N/A |
| Tri Stream | 1280*720@30fps, 720*480@30fps |
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Intelligent Analysis | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human and vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human and vehicle movement), Face Detection, Illegal Parking(based on vehicle shape and license plates), License Plate Detection, Abandoned Object Detection, Removed Object Detection, Heat Map, Face Recognition |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Distortion, Scene Change Detection |
| Full Color | Support |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Built in Mic+Built in Speaker; Option: Audio I/O; Support Sound Detection |
| Alarm | Default: Alarm I/O |
| SD Card Slot | Default: External SD card slot (Max 512GB) |
| RS485 | N/A |
| Housing | Main Body: Metal, Rain Cover:Plastic, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -30℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 900mA |
| Dimension | 89.0 x 81.1 x 245.1 mm |
| Weight (N.W./G.W.) | Approx. 1000 g / Approx. 1200 g |

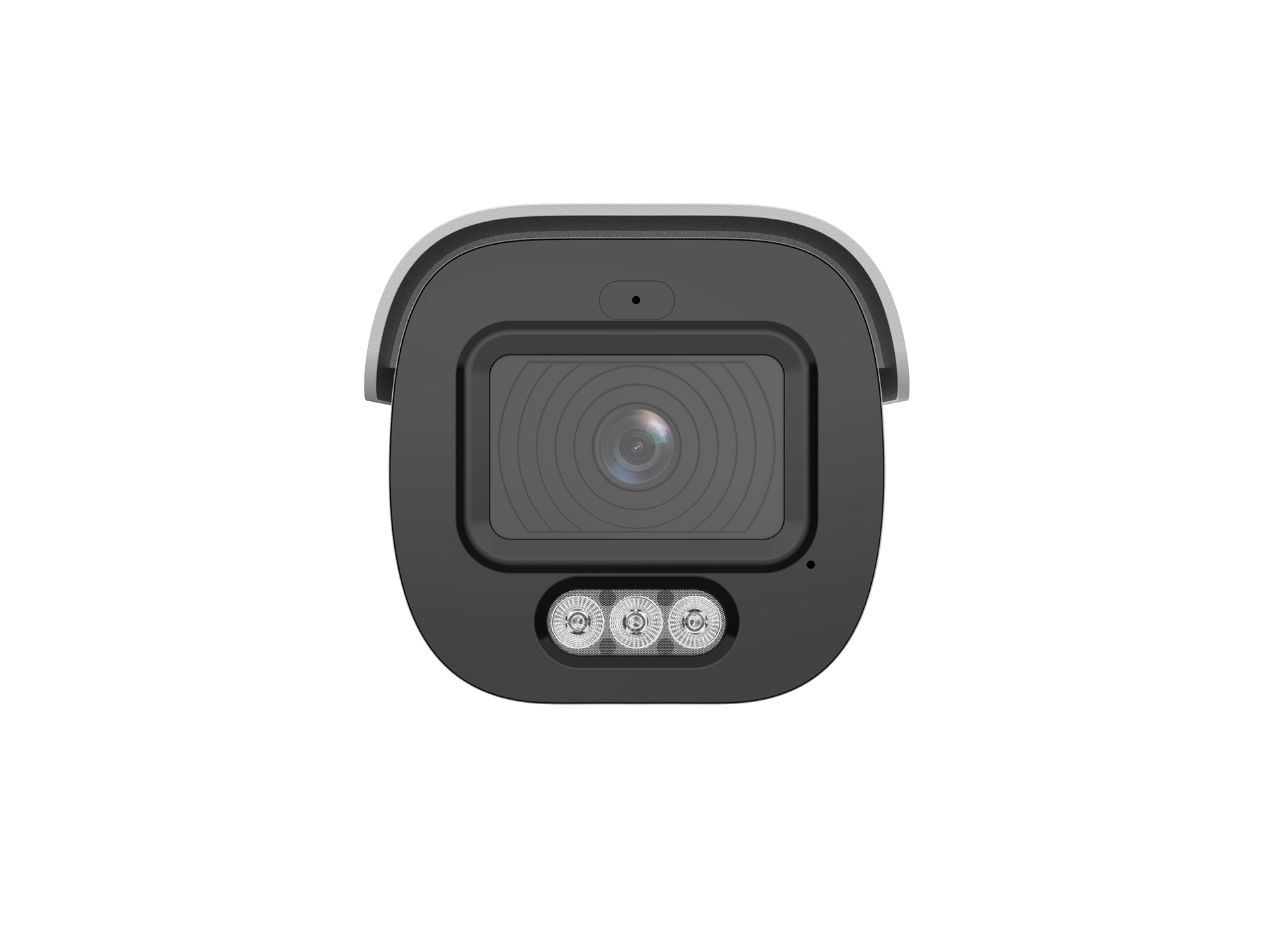

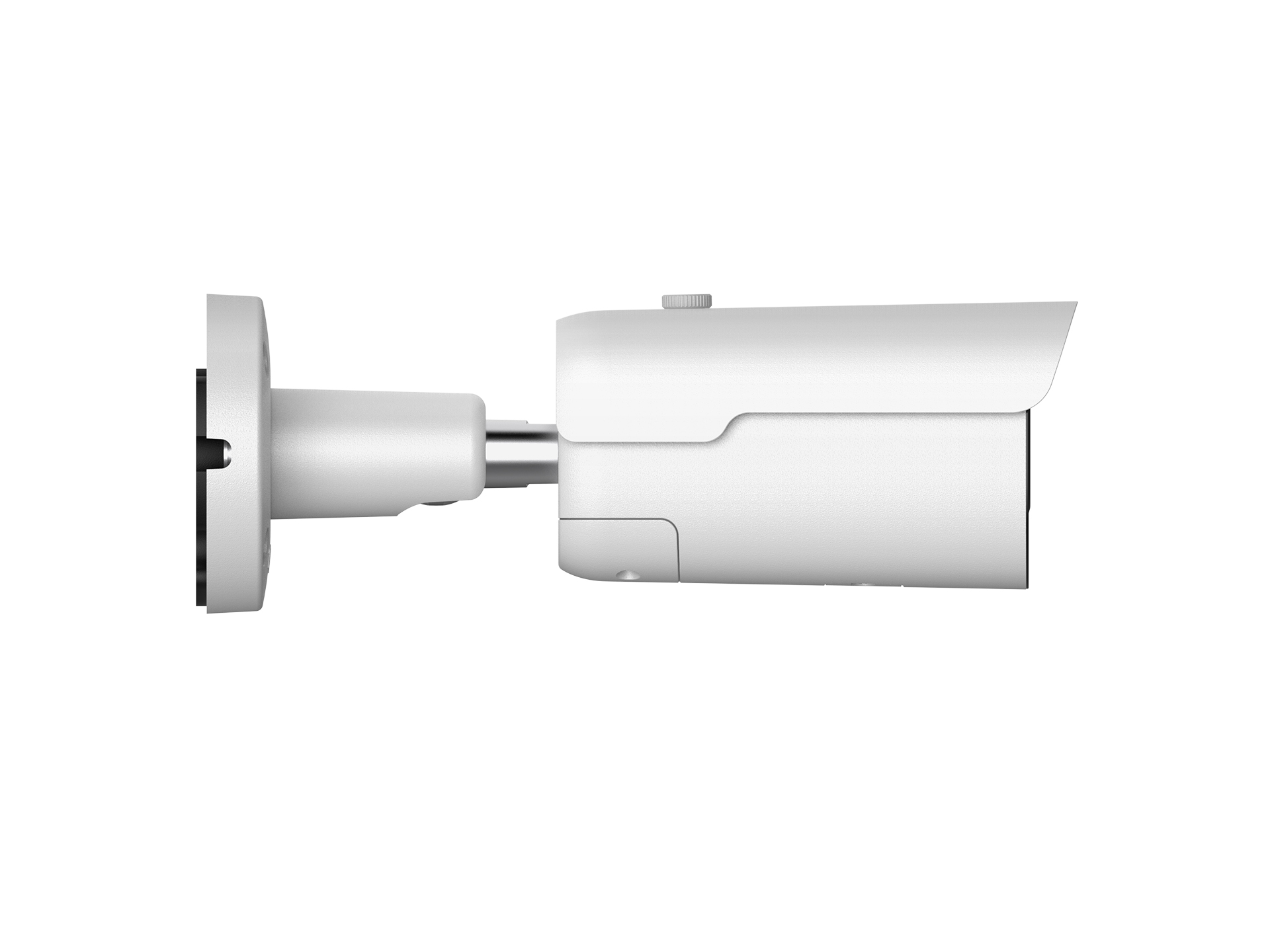

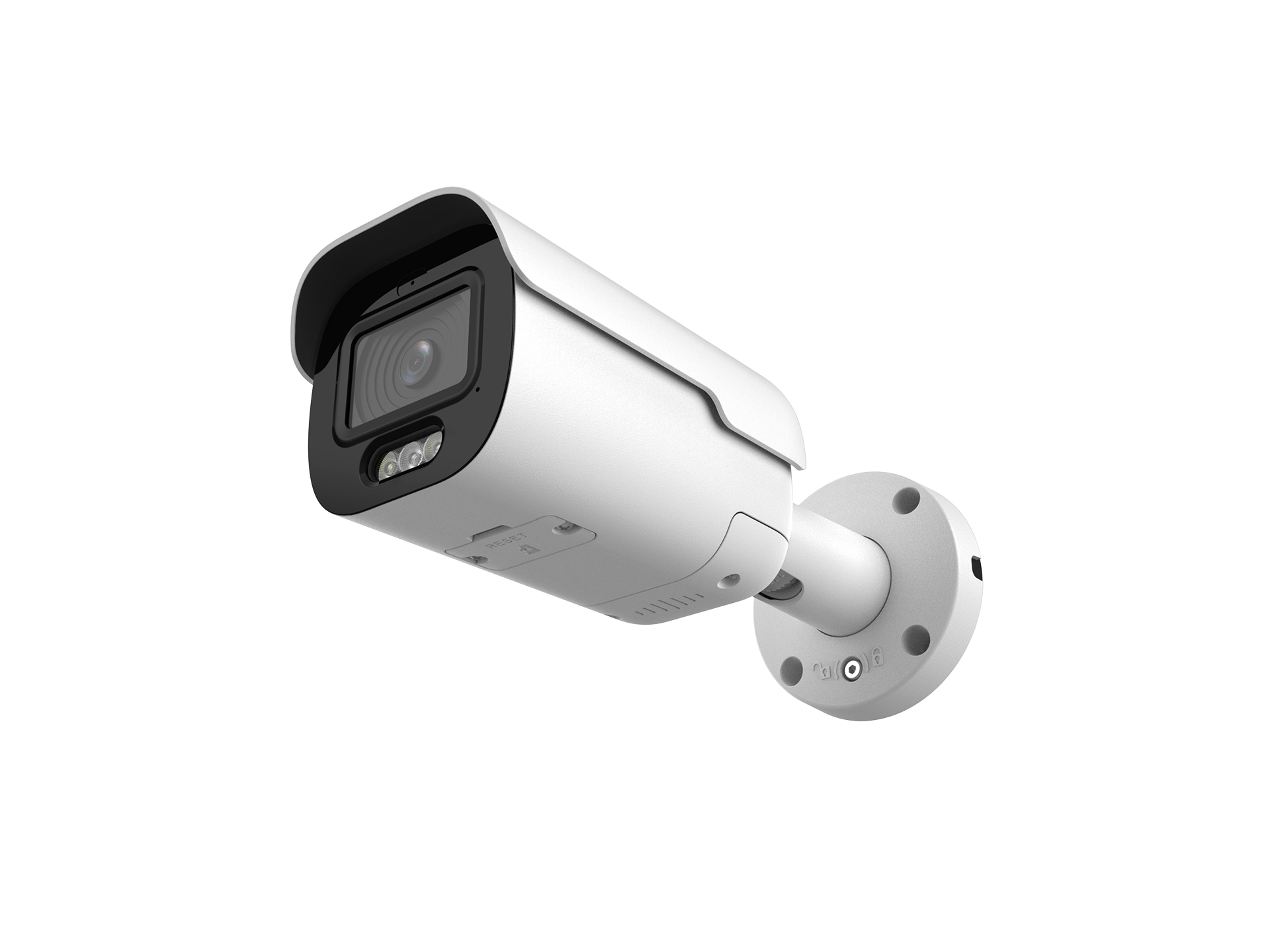

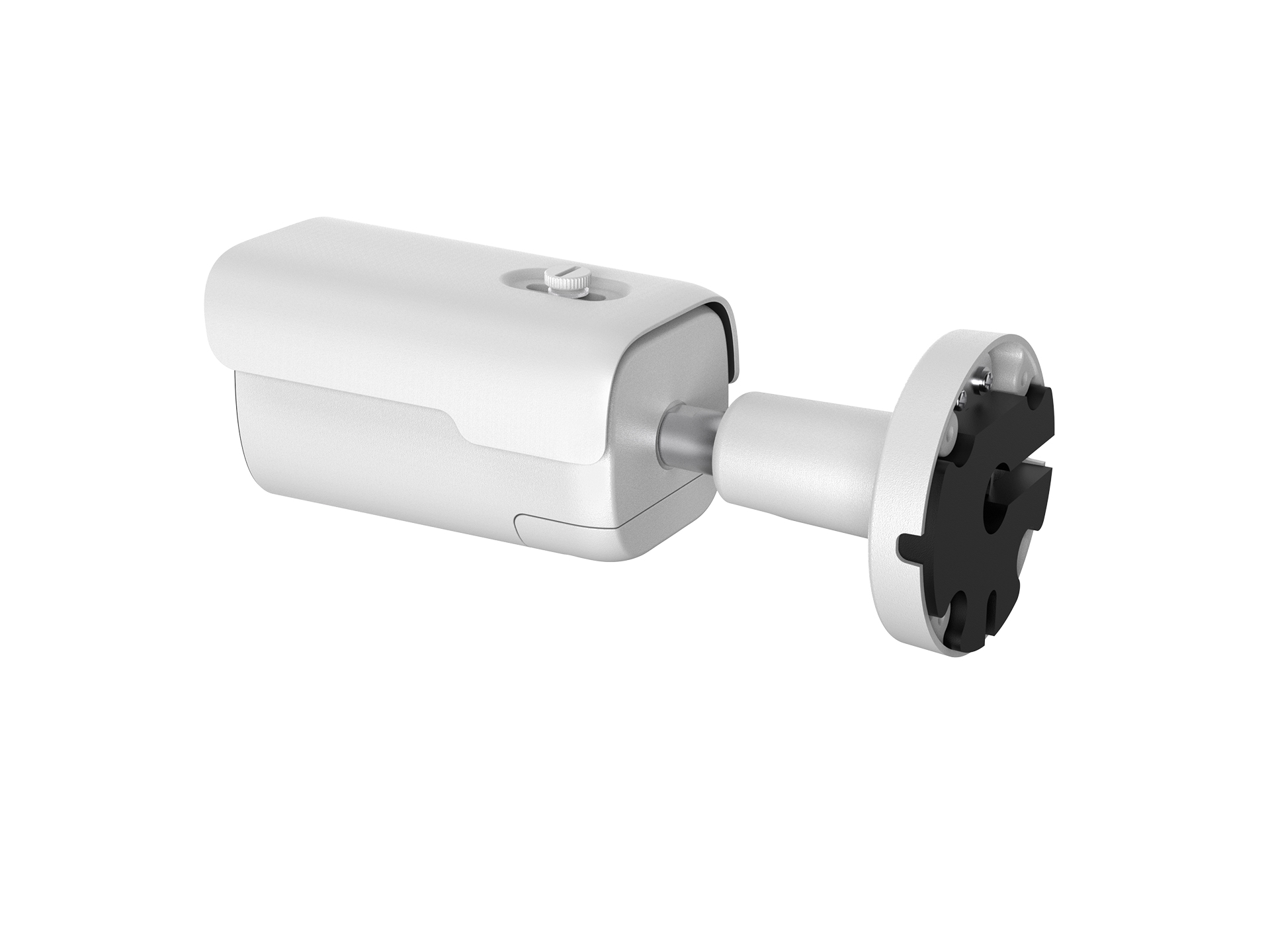

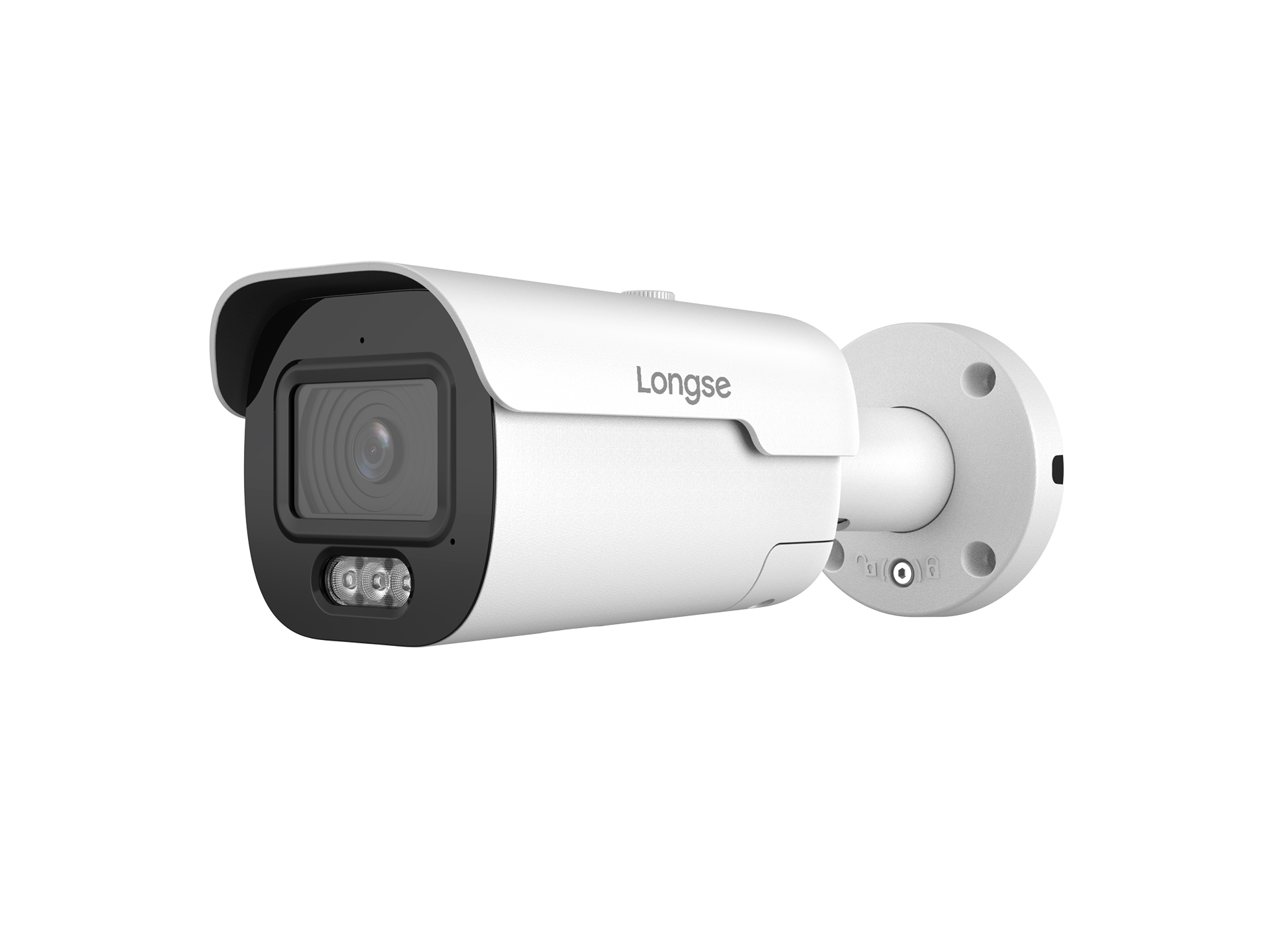

Photos
Files
- BMMDNP8AC-datasheet.pdf (document, 6.8 MB)
