BMMEBRL5RC-X5
Network Camera
- Maker:
- Longse
- Listed:
- 2026
Longse

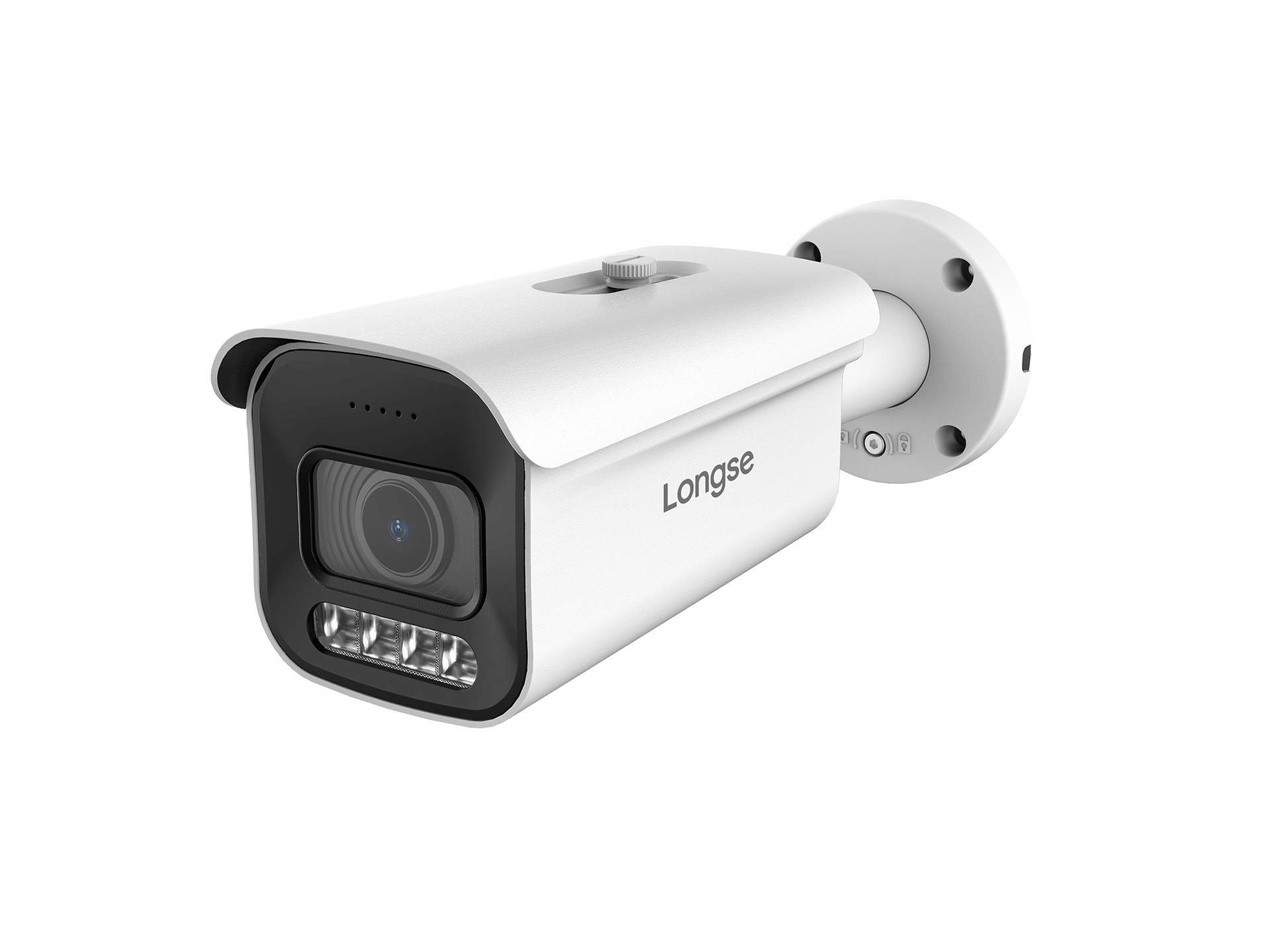

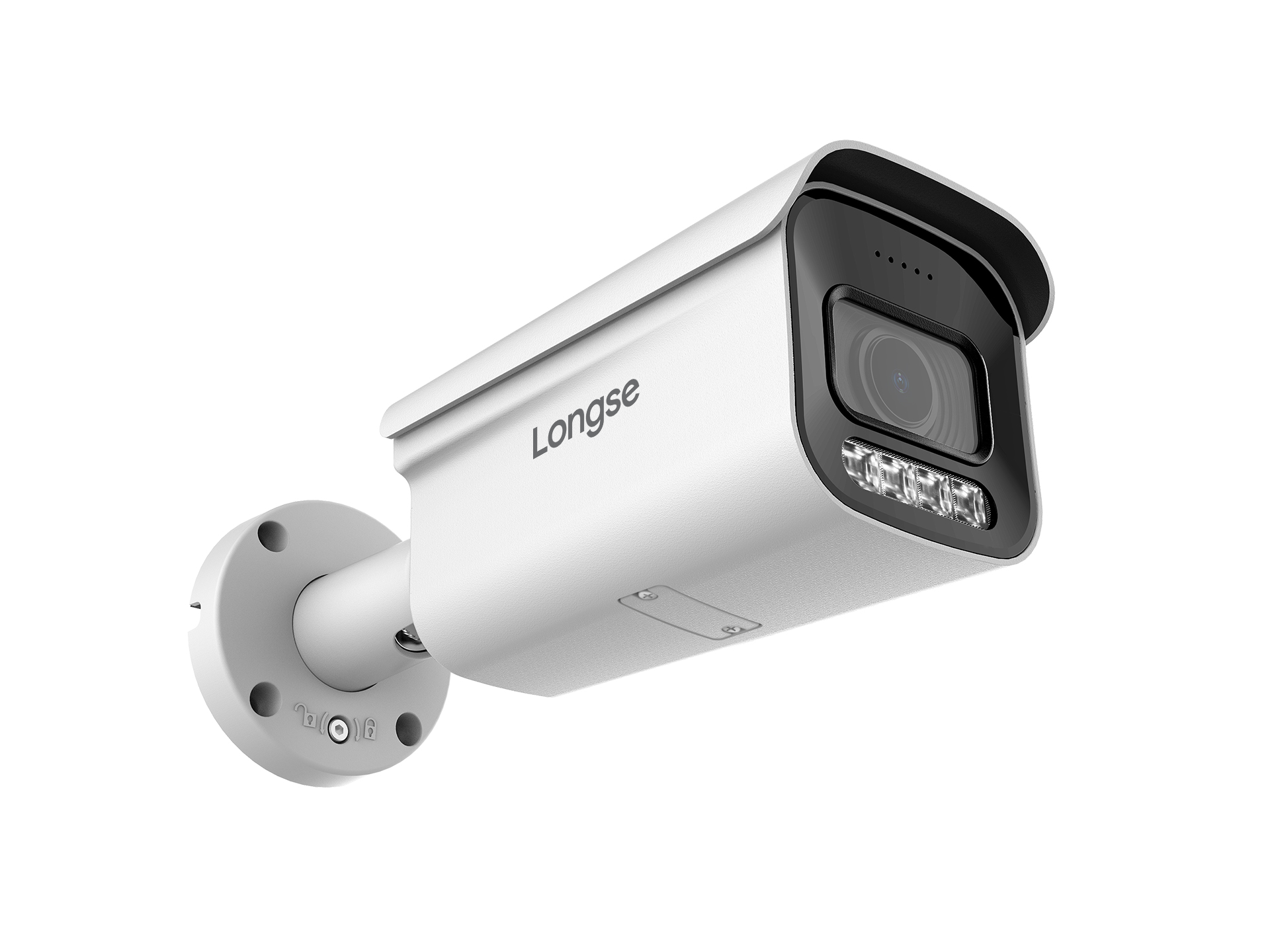

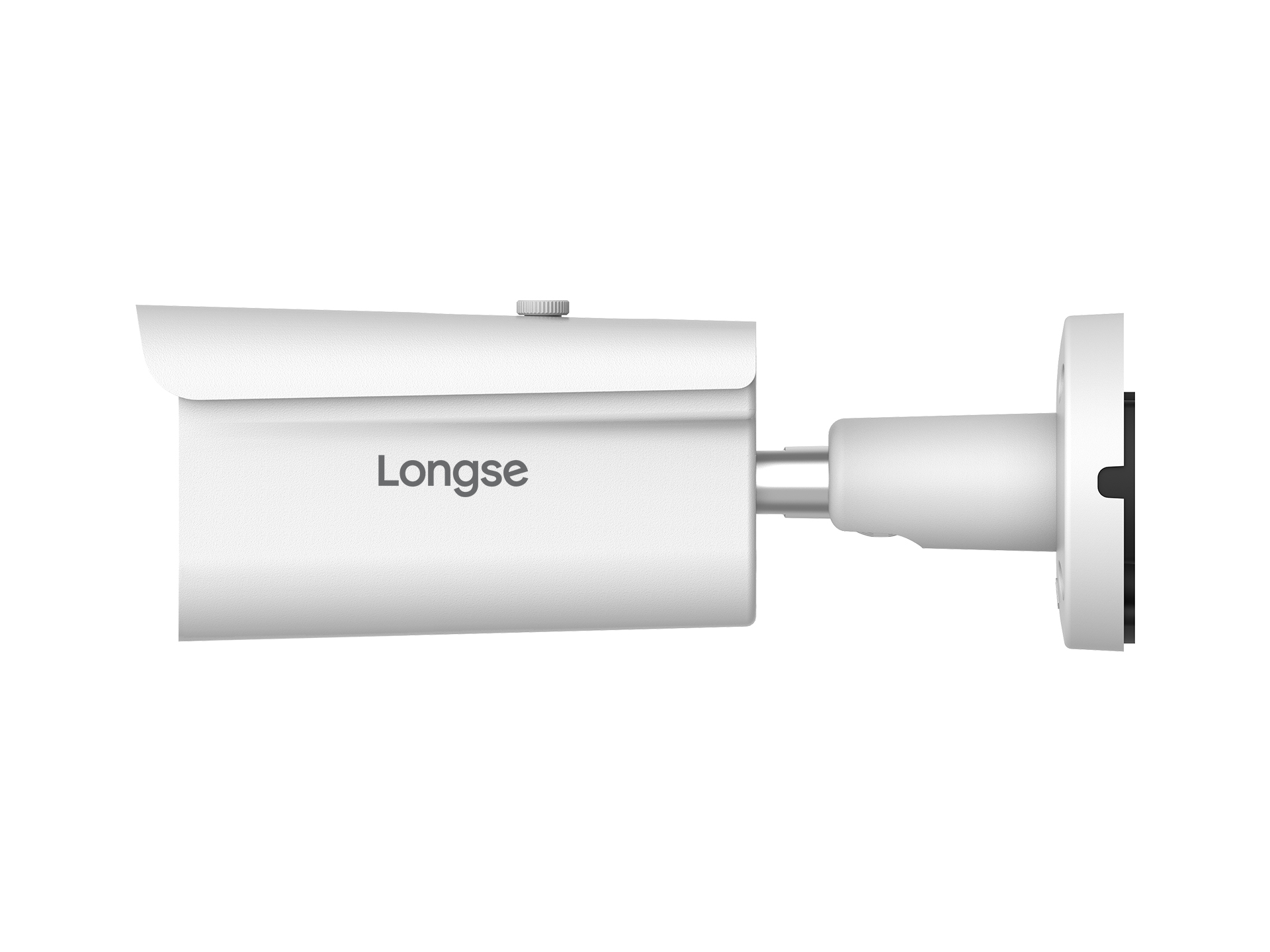

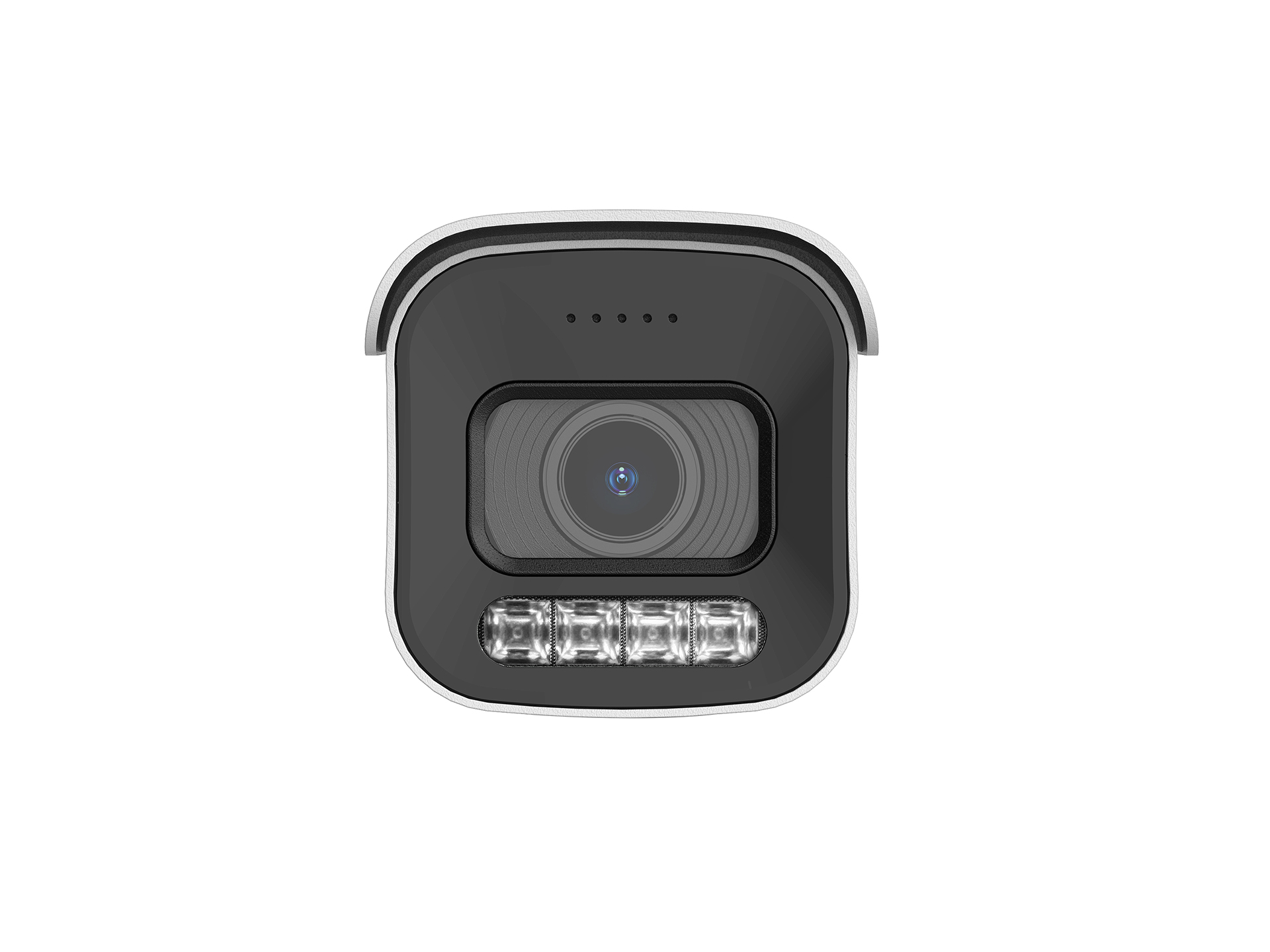

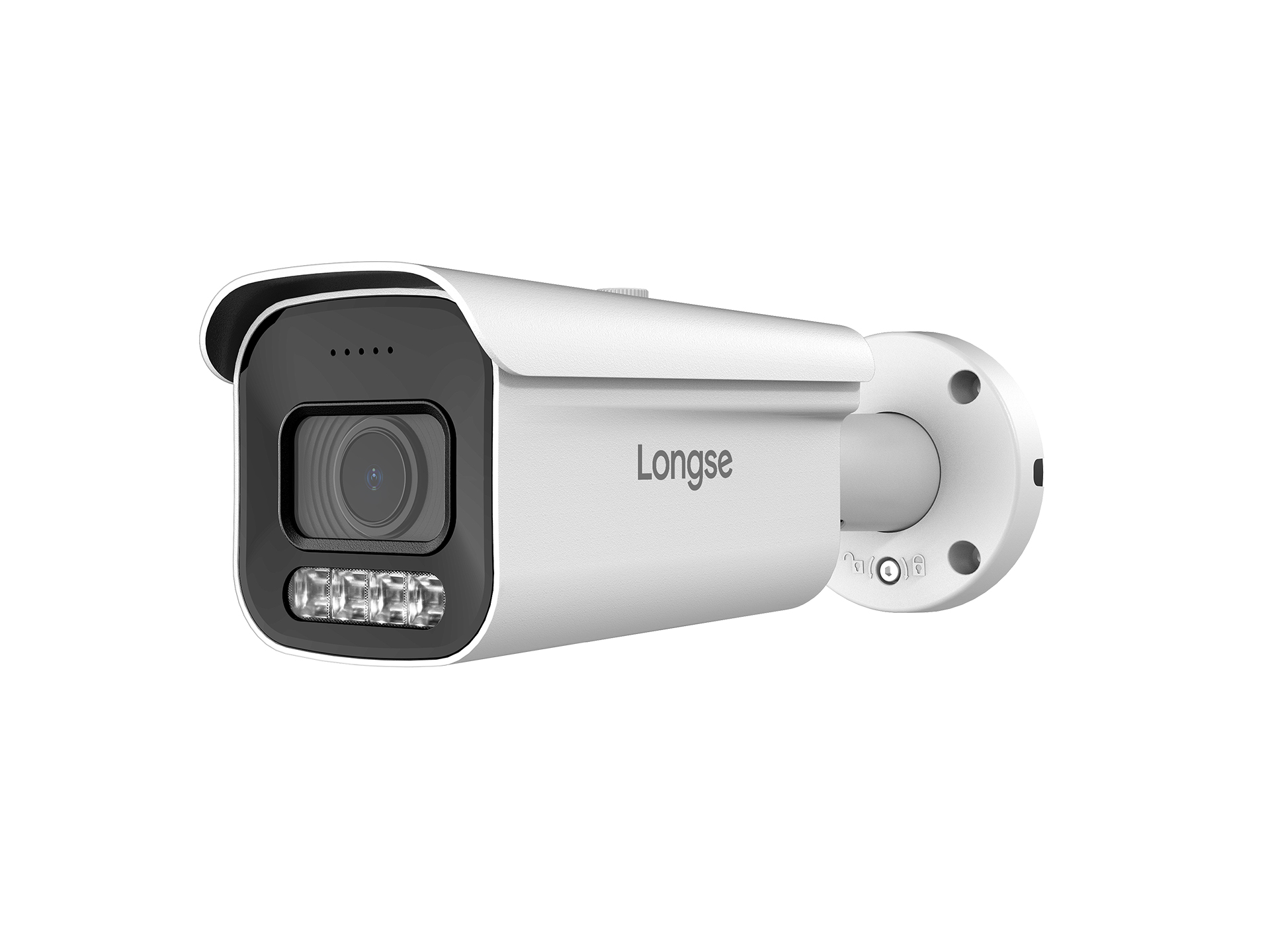

5MP Outdoor Hybrid Light Varifocal Bullet Network Camera
Features
- High quality imaging with 5MP resolution
- Focal Length: 2.7-13.5mm Motor Zoom
- 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
- Support H.264/H.264+/H.265/H.265+/MJPEG Compression
- Minimum Illumination：0.003 lux@(F1.6, AGC ON)
- Infrared Distance：50m, Warm Light Distance：40m
- Support WDR: 120dB
- Housing: Cover (Plastic), Main Body (Metal), IP67
| Series | Pro |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis2 Back-illuminated CMOS sensor |
| Resolution | 5MP |
| Effective Pixels | 2608 (H) × 1964 (V) |
| Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| Audio Compression | G711A/U,AAC,MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Focal Length & FOV | 2.7~13.5mm, horizontal FOV 28°~98°, vertical FOV 21°~71°, diagonal FOV 35°~133° |
| Lens Type | Varifocal Lens |
| Focus Control | Auto Focus |
| Aperture | F1.6~F3.3 |
| Pixels | AF-5MP |
| Supplement Light | IR 4PCS, Warm light 4PCS |
| Supplement Light Distance | IR 50m, Warm light 40m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 2592*1944@30fps; 2560*1440@30fps |
| Main Stream 2 | 1920*1080@30fps |
| Main Stream 3 | 1280*720@30fps |
| Sub Stream 1 | 1280*720@30fps |
| Sub Stream 2 | 720*480@30fps |
| Sub Stream 3 | N/A |
| Tri Stream | 1280*720@30fps; 720*480@30fps |
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Intelligent Analysis | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human and vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human and vehicle movement), Face Detection, Illegal Parking(based on vehicle shape and license plates), License Plate Detection, Abandoned Object Detection, Removed Object Detection, Heat Map |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Mirror，Distortion，Scene Change Detection |
| Full Color | Support |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default:Built in Mic; Option: Audio I/O; Support Sound Detection |
| Alarm | Default: Without; Option: Alarm I/O |
| SD Card Slot | Default: External SD card slot (Max 512GB) |
| RS485 | N/A |
| Housing | Main Body: Metal Rain Cover:Plastic, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -30℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 680mA |
| Dimension | 90.8 x 91.5 x 262.51 mm |
| Weight (N.W./G.W.) | Approx. 1070 g / Approx. 1300 g |
Photos
Files
- BMMEBRL5RC-X5-datasheet.pdf (document, 5.1 MB)
