BMSCFG400W
Wi-Fi Camera
- Maker:
- Longse
- Listed:
- 2022
Longse
4MP Outdoor IR Fixed Bullet WIFI IP Camera
Features
- High quality imaging with 4MP resolution
- 1/3"Progressive Scan CMOS Sensor
- Support H.264/H.264+/H.265/H.265+/MJPEG Compression
- Support WIFI, WIFI Range：No obstacles 400m Max.
- Support DWDR
- Housing: Metal, IP67
| Image Sensor | 1/3" Progressive Scan CMOS Sensor |
|---|---|
| Resolution | 4MP |
| Effective Pixels | 2576(H)*1456(V) |
| Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| Audio Compression | G.711A/U, AAC |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Focus Length & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°; 4 mm, horizontal FOV 81°, vertical FOV 41°, diagonal FOV 96°; 6 mm, horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59° |
| Lens Type | Fixed focal lens, 2.8, 4 and 6 mm optional |
| Focus Control | Fixed |
| Aperture | F1.6 |
| Pixels | 4MP |
| Infrared LED | 2PCS |
| Infrared Distance | 30M |
| IR Status | Auto Control |
| IR Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES, Support QR Code |
| POE | N/A |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 2688*1512@25fps |
| Main Stream 2 | 2560*1440@30fps |
| Main Stream 3 | 1920*1080@30fps; 1280*720@30fps |
| Sub Stream 1 | 1280*720@30fps |
| Sub Stream 2 | 720*480@30fps |
| Sub Stream 3 | N/A |
| Tri Stream | N/A |
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Antena | 3dbi |
| Hotspot | N/A |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n/ax),2.4Ghz |
| WIFI Range | No obstacles 400m Max. |
| Intelligent Analysis | Intrusion Detetion(based on human and Vehicle Detection), Motion Detection(support enable the detection based on human and Vehicle movement) |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Distortion |
| Corridor Pattern | Support |
| ROI | Support |
| Defog Mode | Support |
| BLC | Support |
| WDR | DWDR |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Built in Mic; Option: Audio In; Option: Audio I/O |
| Alarm | N/A |
| SD Card Slot | Default: Without; Option: External SD card slot (Max 512GB) |
| RS485 | N/A |
| Housing | Metal, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 550mA |
| Dimension | 70.07 x 67.5 x 169.49 mm |
| Weight (N.W./G.W.) | Approx. 420 g / Approx. 500 g |

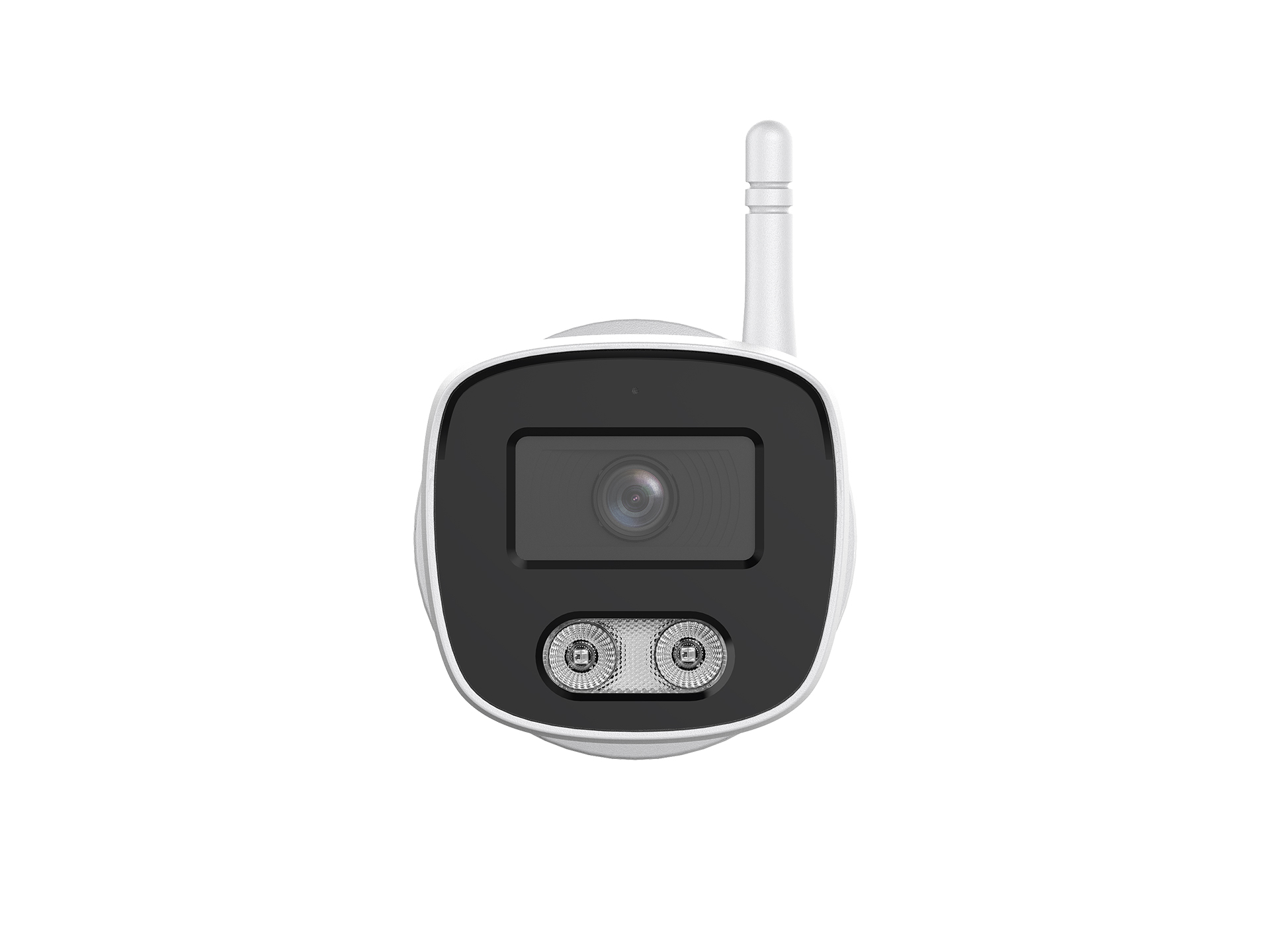

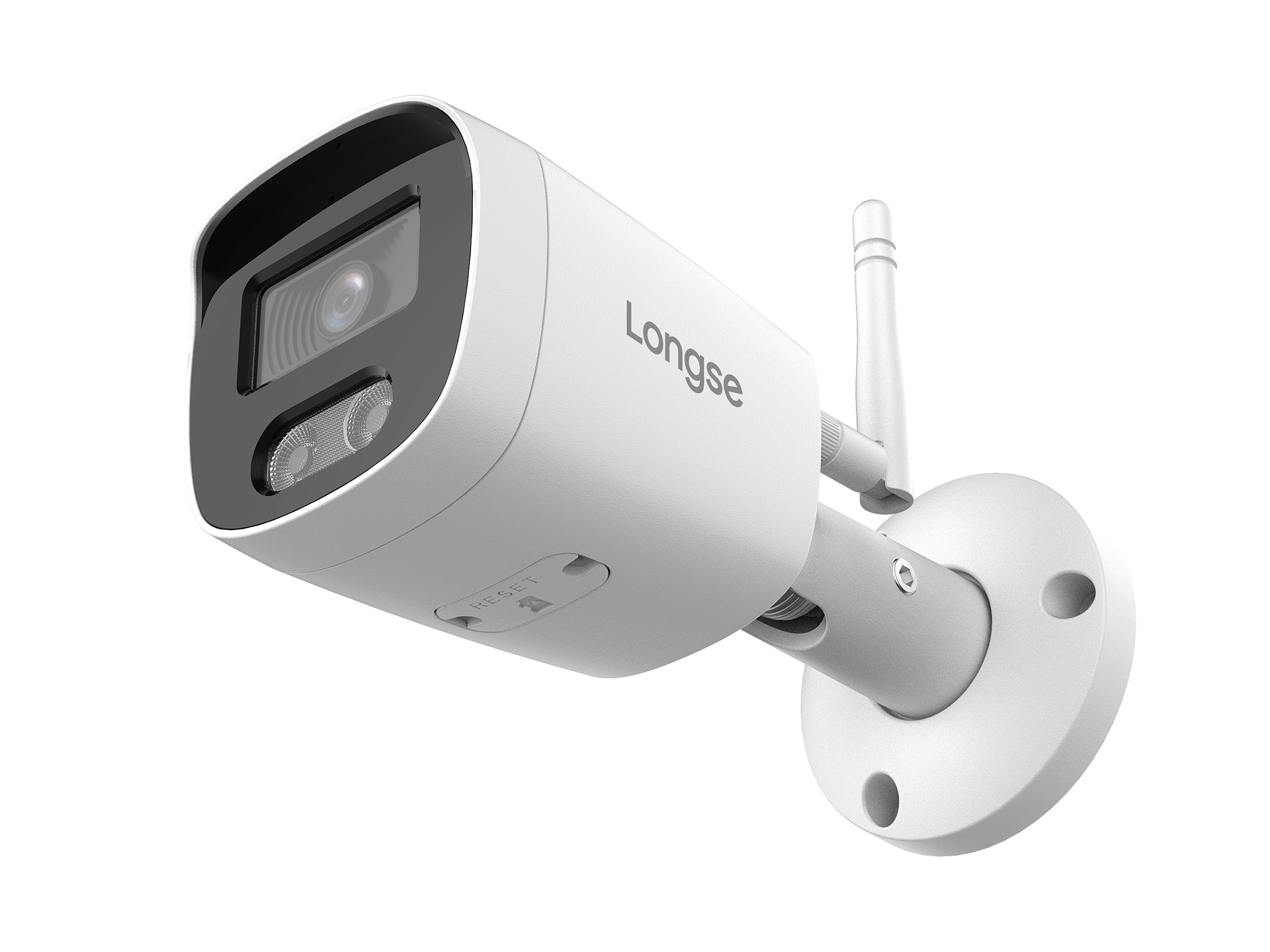

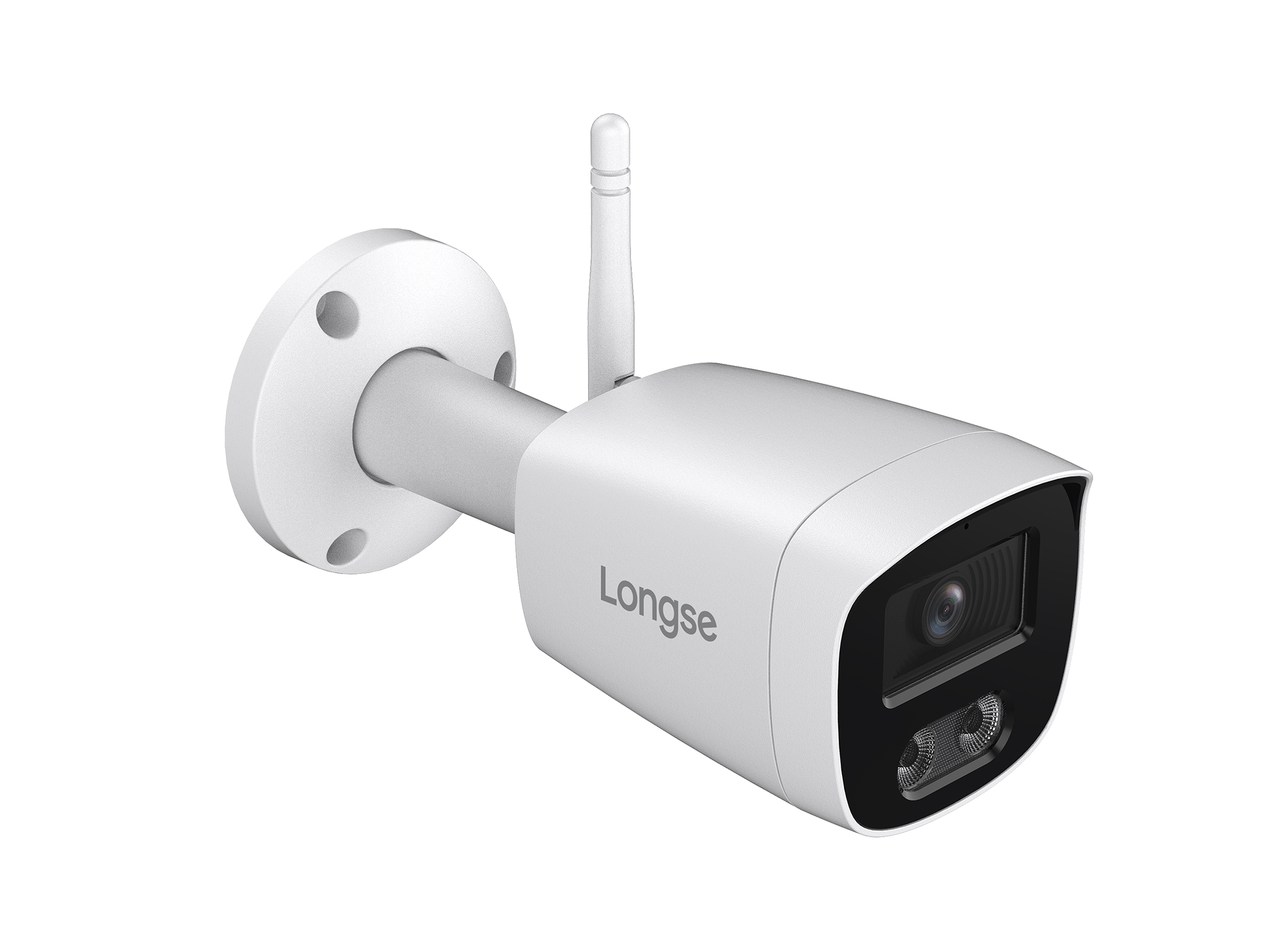

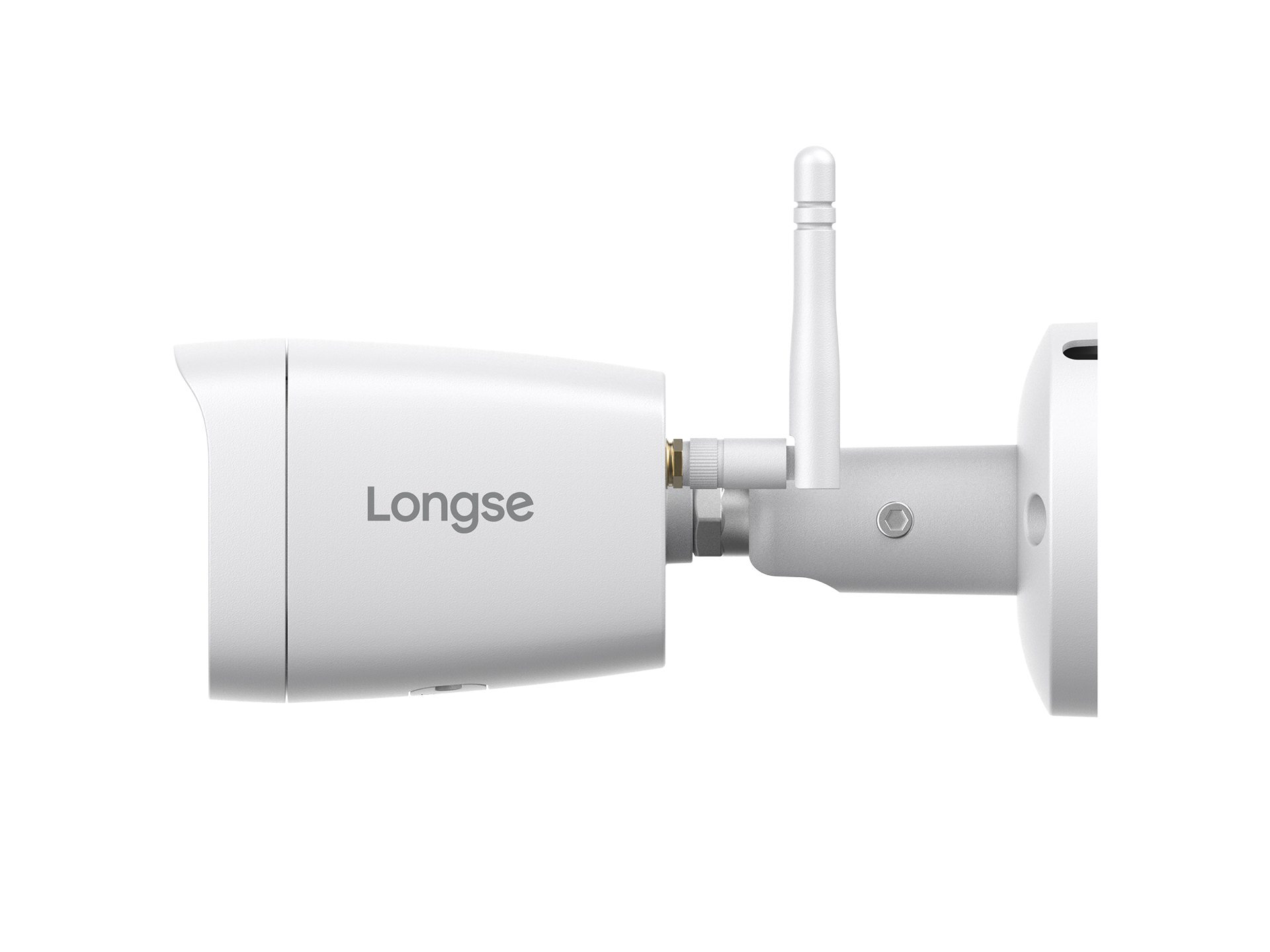

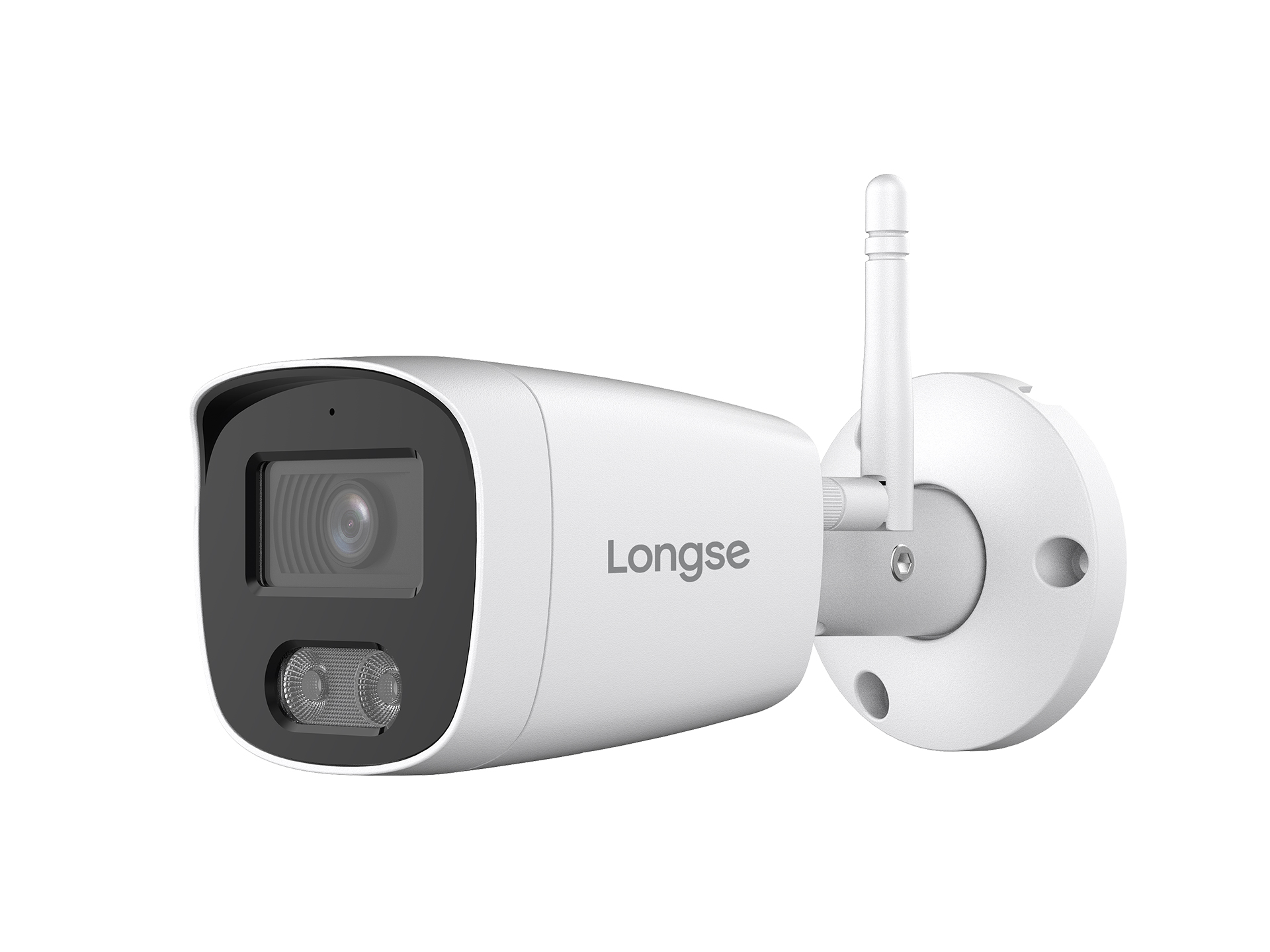

Photos
Files
- BMSCFG400W-datasheet.pdf (document, 2.3 MB)
