BMSCKL8R
Network Camera
- Maker:
- Longse
- Listed:
- 2022
Longse
8MP Outdoor Infrared Fixed Bullet Network camera
Features
- High quality imaging with 8MP resolution
- 1/2.8"SONY Starvis Back-illuminated CMOS sensor
- Support H.264/H.265/H.264+/H.265+/JPEG/AVI Compression
- Minimum Illumination：0.05 Lux，Infrared Distance：25m
- Support WDR
- Housing: Metal , IP67
| Series | Value |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| Resolution | 8MP |
| Effective Pixels | 3864(H)*2192(V) |
| Compression | H.264/H.265/H.264+/H.265+ |
| Audio Compression | G711A/U,AAC,MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimum Illumination | Color: 0.005 Lux@(F1.6, AGC ON), B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°; 4 mm, horizontal FOV 84°, vertical FOV 48°, diagonal FOV 97°; 6 mm, horizontal FOV 53°, vertical FOV 30°, diagonal FOV 60° |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focus Control | Fixed |
| Aperture | F1.6 |
| Pixels | 8MP |
| Supplement Light | 2PCS |
| Supplement Light Distance | 40m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 3840*2160@25fps |
| Main Stream 2 | 2560*1440@25fps |
| Main Stream 3 | 1920*1080@25fps, 1280*720@25fps |
| Sub Stream 1 | 1280*720@25fps |
| Sub Stream 2 | 720*480@25fps |
| Sub Stream 3 | N/A |
| Tri Stream | N/A |
| IE Browser | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Intelligent Analysis | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human, vehicle and non-motor vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human, vehicle and non-motor vehicle movement), Face Detection(not support other AI functions while enable face detection), Illegal Parking(based on vehicle shape and license plates), License Plate Detection, Abandoned Object Detection, Removed Object Detection, Heat Map |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC, Scene Change Detection |
| Full Color | N/A |
| Corridor Pattern | Support |
| Defog Mode | N/A |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Without; Option: Built in Mic; Option: Audio In; Option: Audio I/O |
| Alarm | N/A |
| SD Card Slot | Default: Without; Option: External SD card slot (Max 512GB) |
| RS485 | N/A |
| Housing | Metal, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -30℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 700mA |
| Dimension | 70.04 x 67.5 x 169.49mm |
| Weight (N.W./G.W.) | Approx. 423 g / Approx. 500 g |

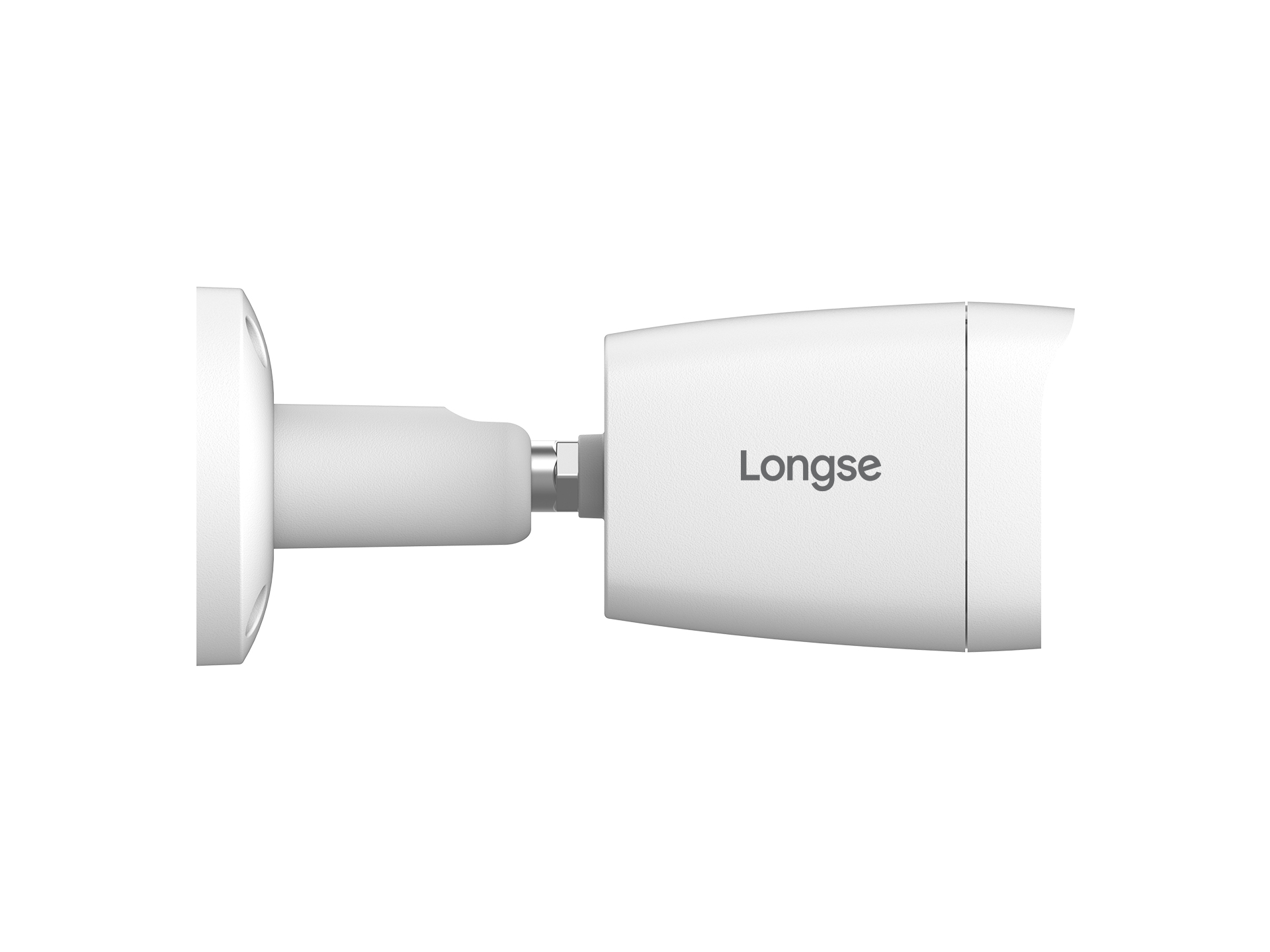

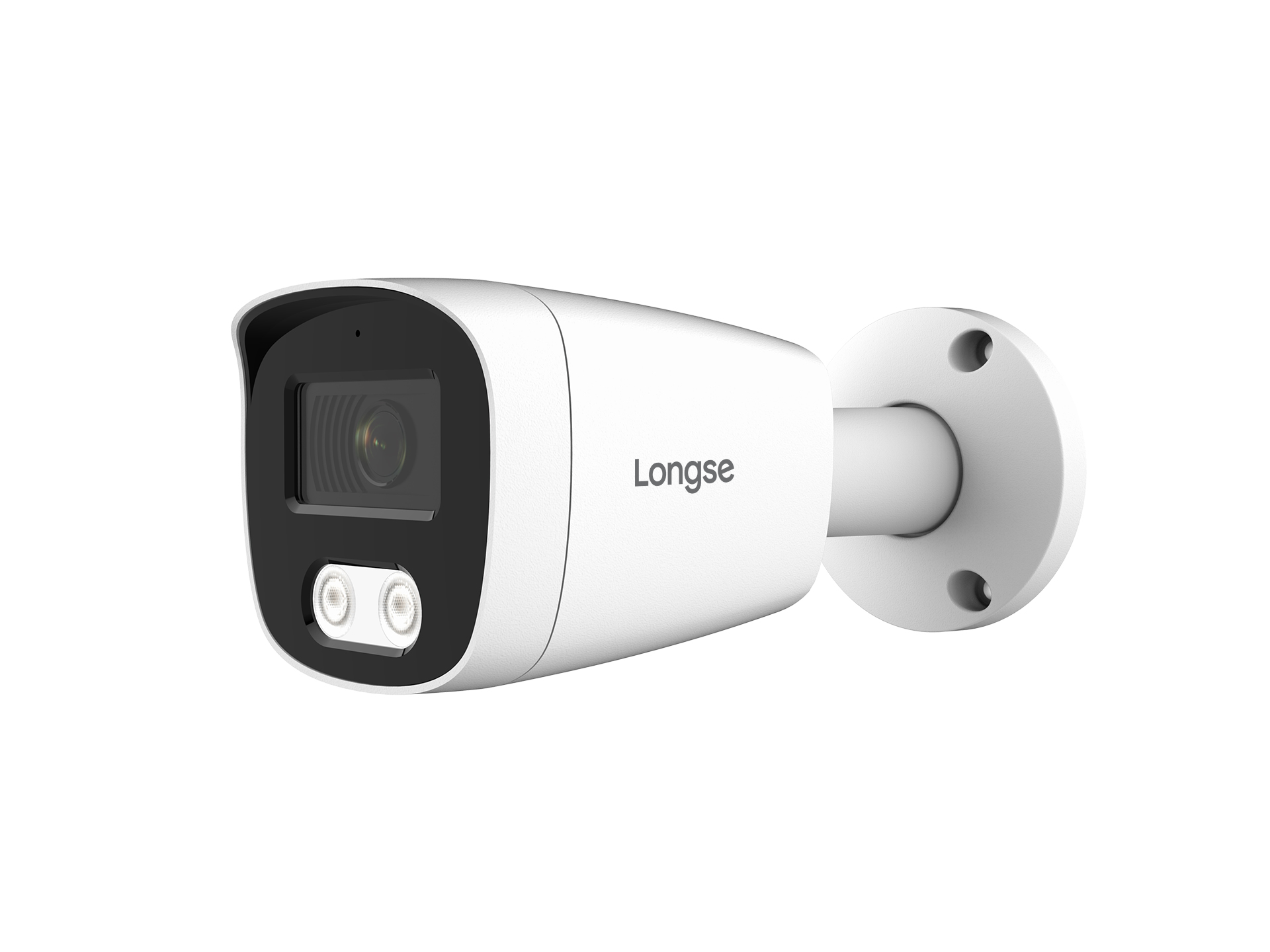

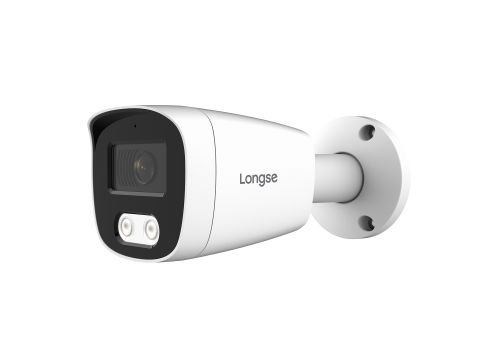

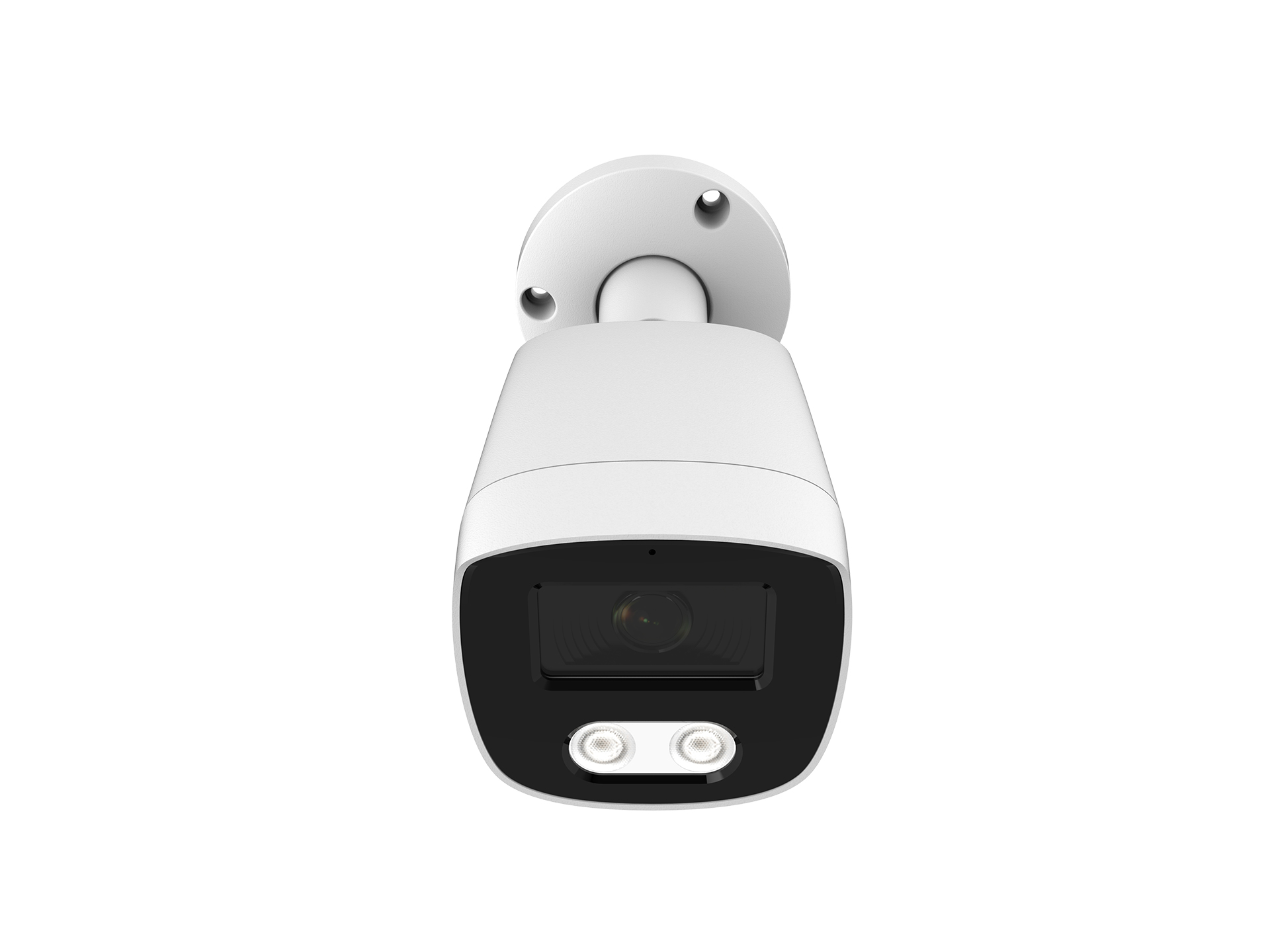

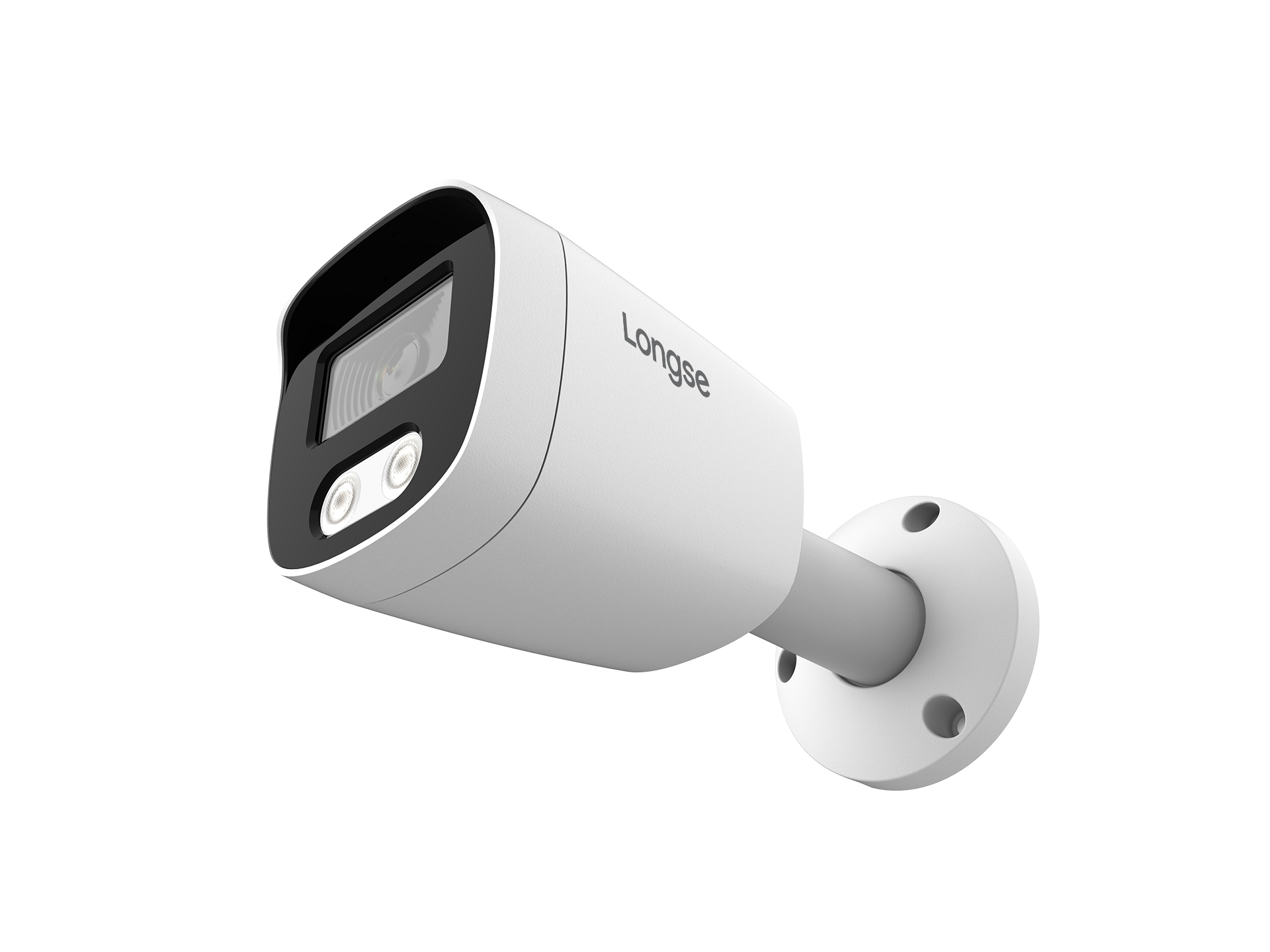

Photos
Files
- BMSCKL8R-datasheet.pdf (document, 3.3 MB)
