BMSCRC2RC
Network Camera
- Maker:
- Longse
- Listed:
- 2026
Longse
2MP Outdoor Eco Series Fixed Bullet Network camera
Features
- High quality imaging with 2MP resolution
- 1/3.3"Progressive Scan CMOS
- 4mm (3.6mm) Fixed Lens, 2.8mm
- Optional; H.264/H.265/MJPEG
- Support DWDR, BLC, HLC, 2D/3D DNR
- ONVIF 24.12 (Profile S/T), CGI, P2P
- Housing: Metal, IP67
| Series | Eco |
|---|---|
| Image Sensor | 1/3.3" CMOS Sensor |
| Resolution | 2MP |
| Effective Pixels | 1920(H)*1080(V) |
| Compression | H.264/H.265/MJPEG |
| Audio Compression | G711A/U,AAC |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimum Illumination | Color: 0.05 Lux@(F2.0, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 83.9°, vertical FOV 47.1°, diagonal FOV 96.8°; 4 mm, horizontal FOV 63.4°, vertical FOV 34.9°, diagonal FOV 74.5° |
| Lens Type | Fixed focal lens, 2.8 and 4mm optional |
| Focus Control | Fixed |
| Aperture | F2.0 |
| Pixels | 3MP |
| Supplement Light | IR 2PCS; Warm light 2PCS |
| Supplement Light Distance | IR 40m; Warm light 30m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, UDP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T), CGI |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 1920*1080@25fps |
| Main Stream 2 | 1280*720@30fps |
| Main Stream 3 | N/A |
| Sub Stream 1 | 720*480@30fps |
| Sub Stream 2 | 640*360@30fps |
| Sub Stream 3 | 352*288@30fps |
| Tri Stream | N/A |
| IE Browser | Microsoft Edge, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Intelligent Analysis | Intrusion detection(based on human and vehicle detection), Motion Detection(supports the detection based on human movement) |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, HLC, Distortion |
| Full Color | Support |
| Corridor Pattern | N/A |
| Defog Mode | N/A |
| ROI | N/A |
| BLC | Support |
| WDR | DWDR |
| Motion Detection | Support(support enable the detection based on human movement only) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Built in Mic; Option: Audio In |
| Alarm | N/A |
| SD Card Slot | N/A |
| RS485 | N/A |
| Housing | Metal, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -30℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 215mA |
| Dimension | 70.04 x 67.5 x 169.49mm |
| Weight (N.W./G.W.) | Approx. 423 g / Approx. 500 g |

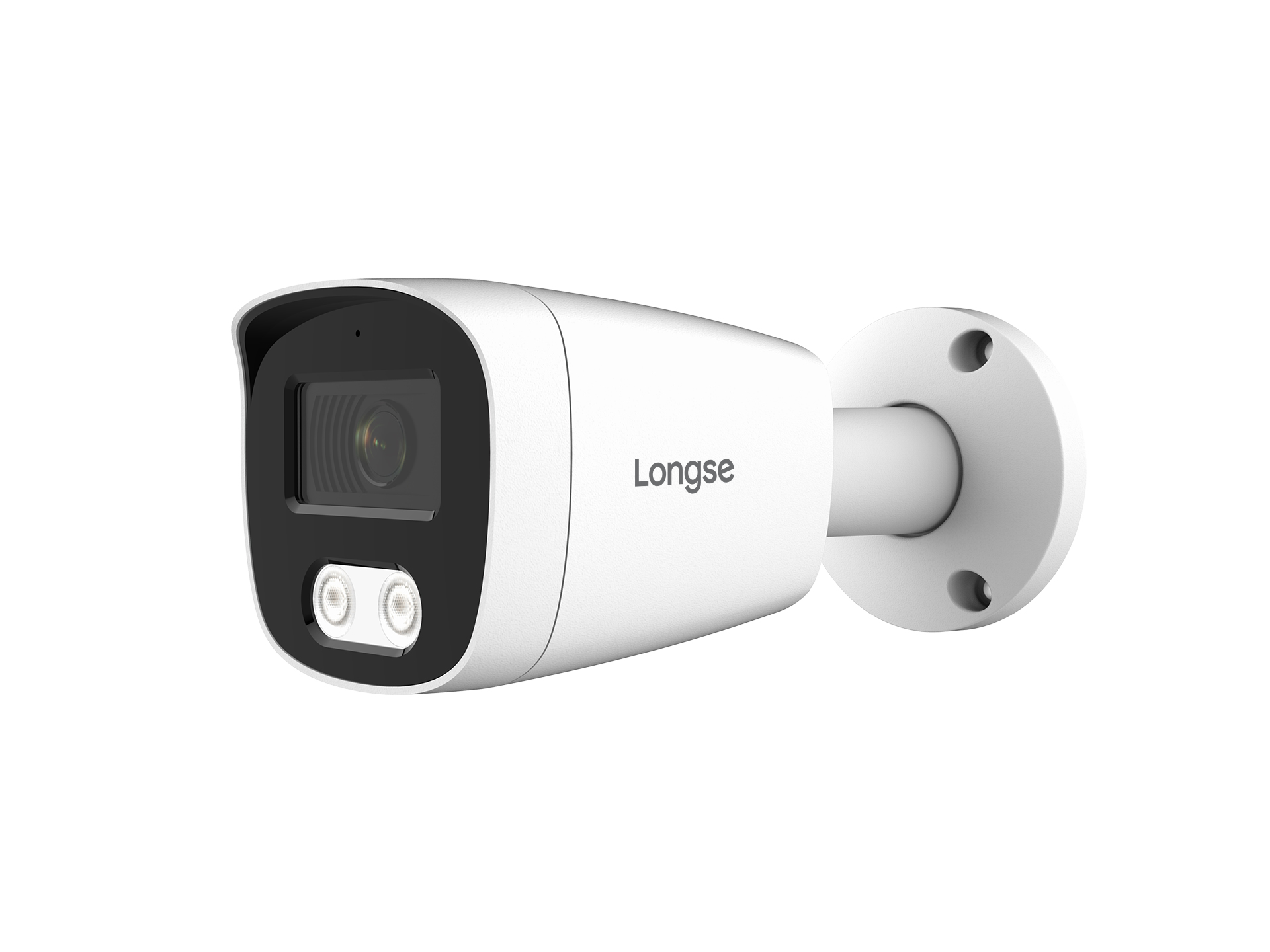

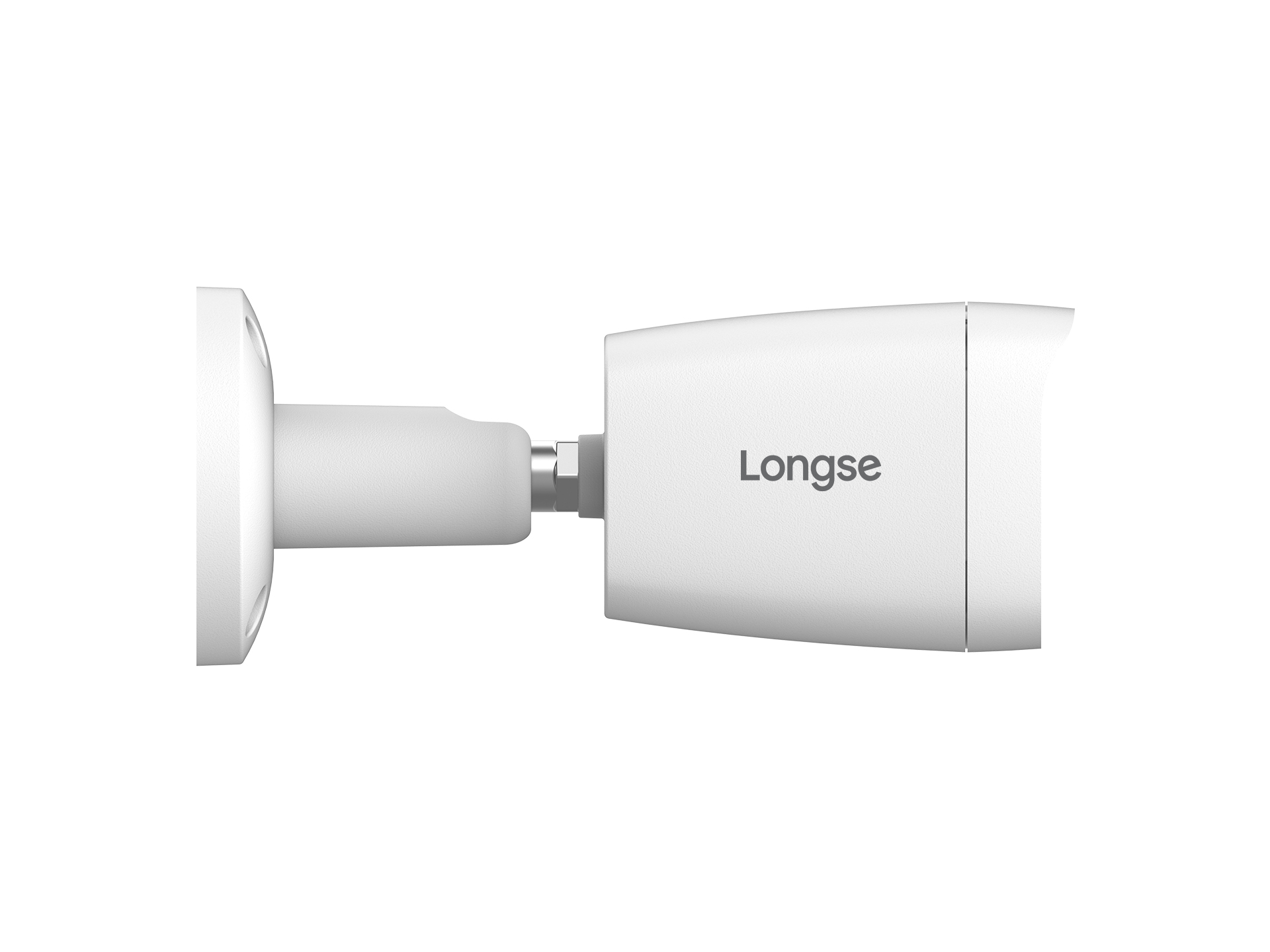

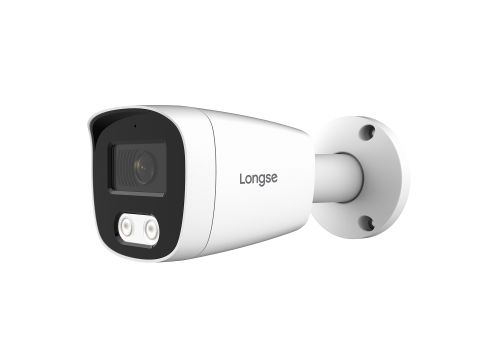

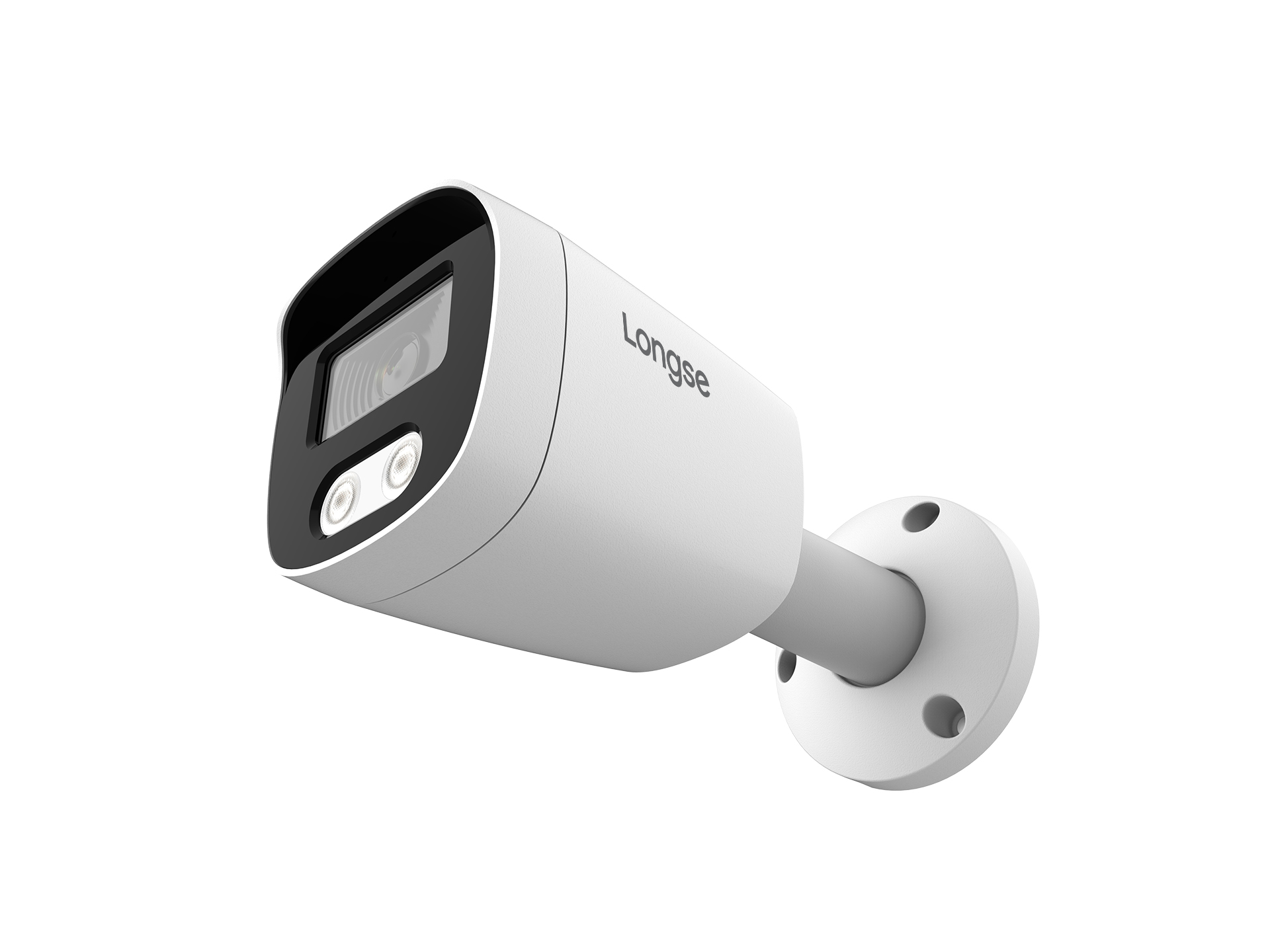

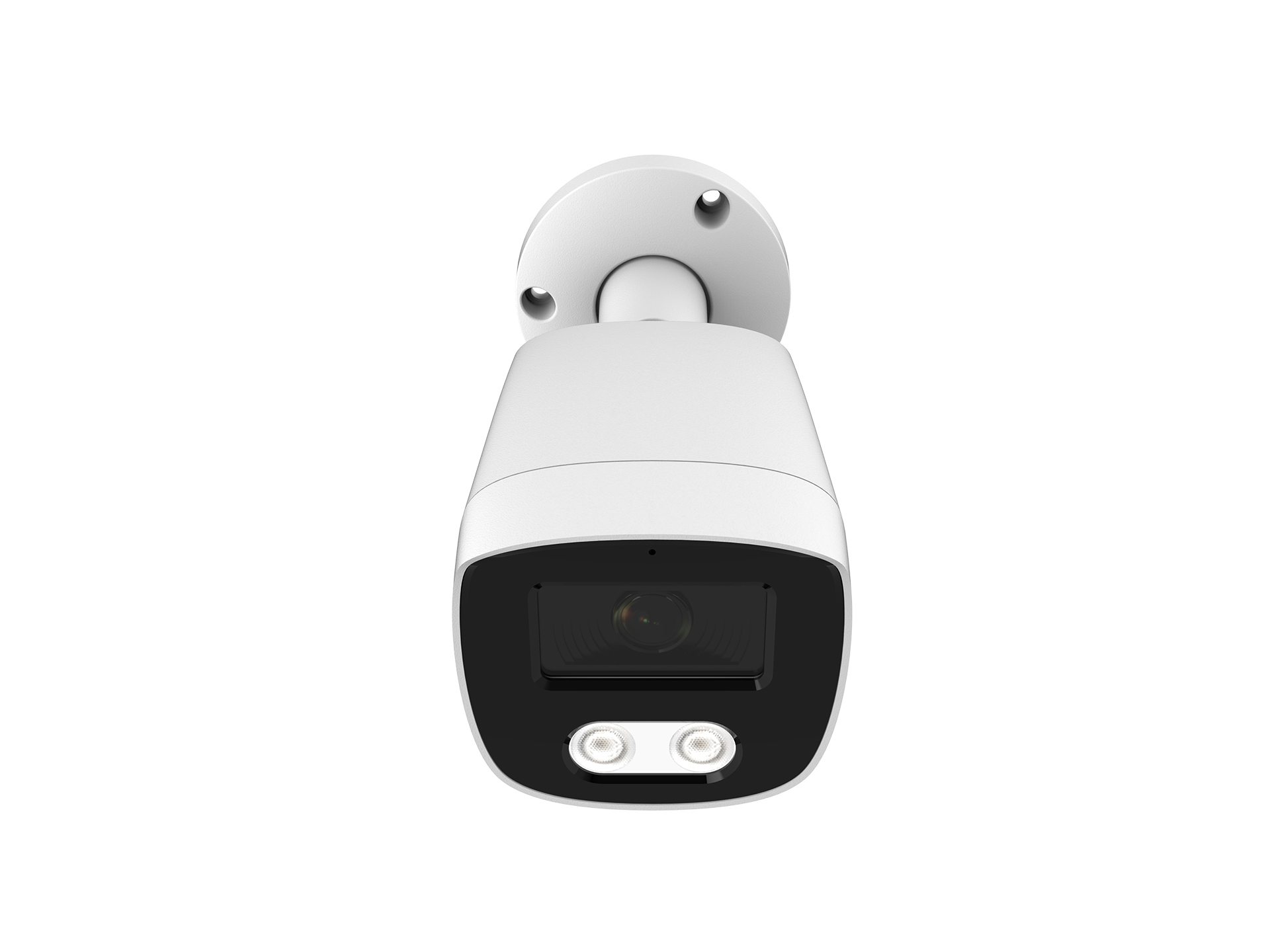

Photos
Files
- BMSCRC2RC-datasheet.pdf (document, 3.3 MB)
