DMMABRL5R
Network Camera
- Maker:
- Longse
- Listed:
- 2026
Longse
5MP Fixed Network Camera
Features
- High quality imaging with 5MP resolution
- 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
- Support H.264/H.264+/H.265/H.265+/MJPEG Compression
- Minimum Illumination：0.003Lux
- Infrared Distance：30m
- Support WDR: 120dB
- Housing: Metal, IP67
| Series | Pro |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis2 Back-illuminated CMOS sensor |
| Resolution | 5MP |
| Effective Pixels | 2608 (H) × 1964 (V) |
| Compression | H.264/H.264+/H.265/H.265+/MJPEG |
| Audio Compression | G711A/U,AAC,MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimum Illumination | Color: 0.003 Lux@(F1.6, AGC ON), B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 72°, diagonal FOV 124°; 4mm, horizontal FOV 80°, vertical FOV 56°, diagonal FOV 107°; 6 mm, horizontal FOV 50°, vertical FOV 37°, diagonal FOV 64° |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focus Control | Fixed |
| Aperture | F1.6 |
| Pixels | 5MP |
| Supplement Light | 2PCS |
| Supplement Light Distance | 30m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 2592*1944@60fps; 2560*1440@60fps |
| Main Stream 2 | 1920*1080@60fps |
| Main Stream 3 | 1280*720@60fps |
| Sub Stream 1 | 1280*720@60fps |
| Sub Stream 2 | 720*480@60fps |
| Sub Stream 3 | N/A |
| Tri Stream | 1280*720@60fps; 720*480@60fps |
| IE Browser | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Intelligent Analysis | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human, vehicle and non-motor vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human, vehicle and non-motor vehicle movement), Face Detection, Illegal Parking(based on vehicle shape and license plates), License Plate Detection, Abandoned Object Detection, Removed Object Detection, Heat Map, Video Structured Analytics |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Mirror，Distortion，Scene Change Detection |
| Full Color | N/A |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Built in Mic; Option: Audio In; Support Sound Detection |
| Alarm | Default: Without |
| SD Card Slot | Default: Without; Option: External SD card slot (Max 512GB) |
| RS485 | N/A |
| Housing | Metal, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -30℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 430mA |
| Dimension | φ 126.8 x 93.8 mm |
| Weight (N.W./G.W.) | Approx. 500 g / Approx. 600 g |

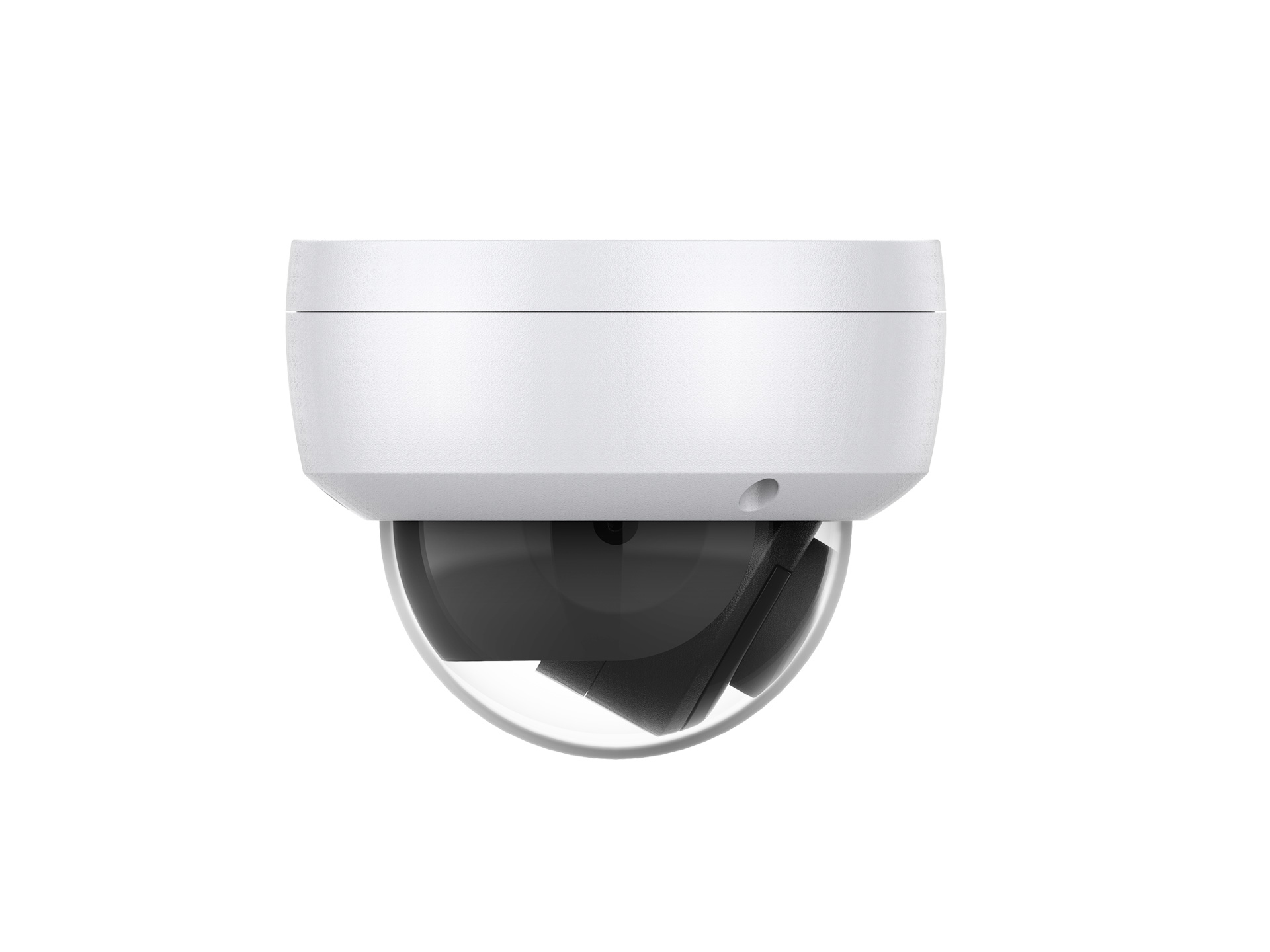

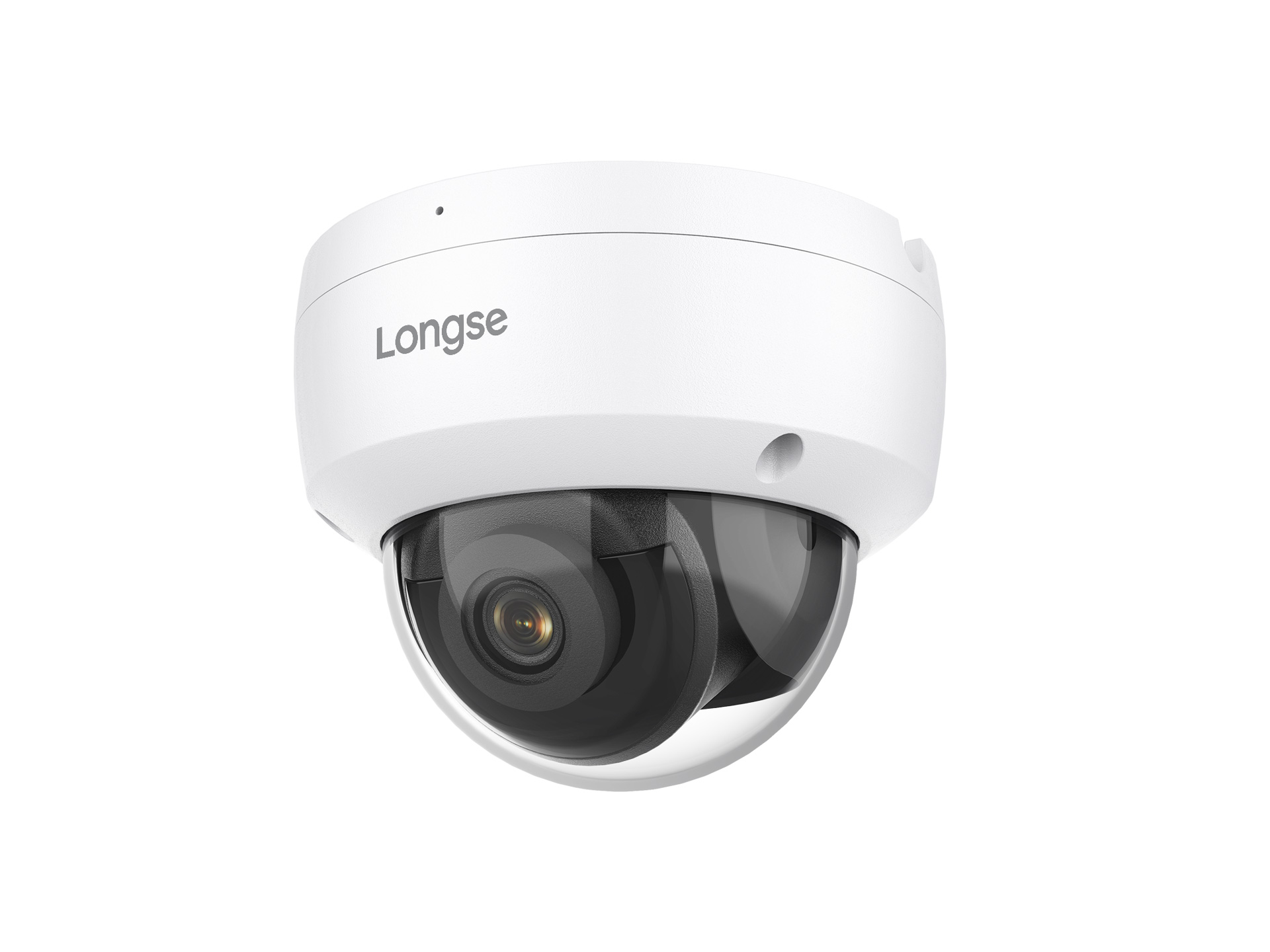

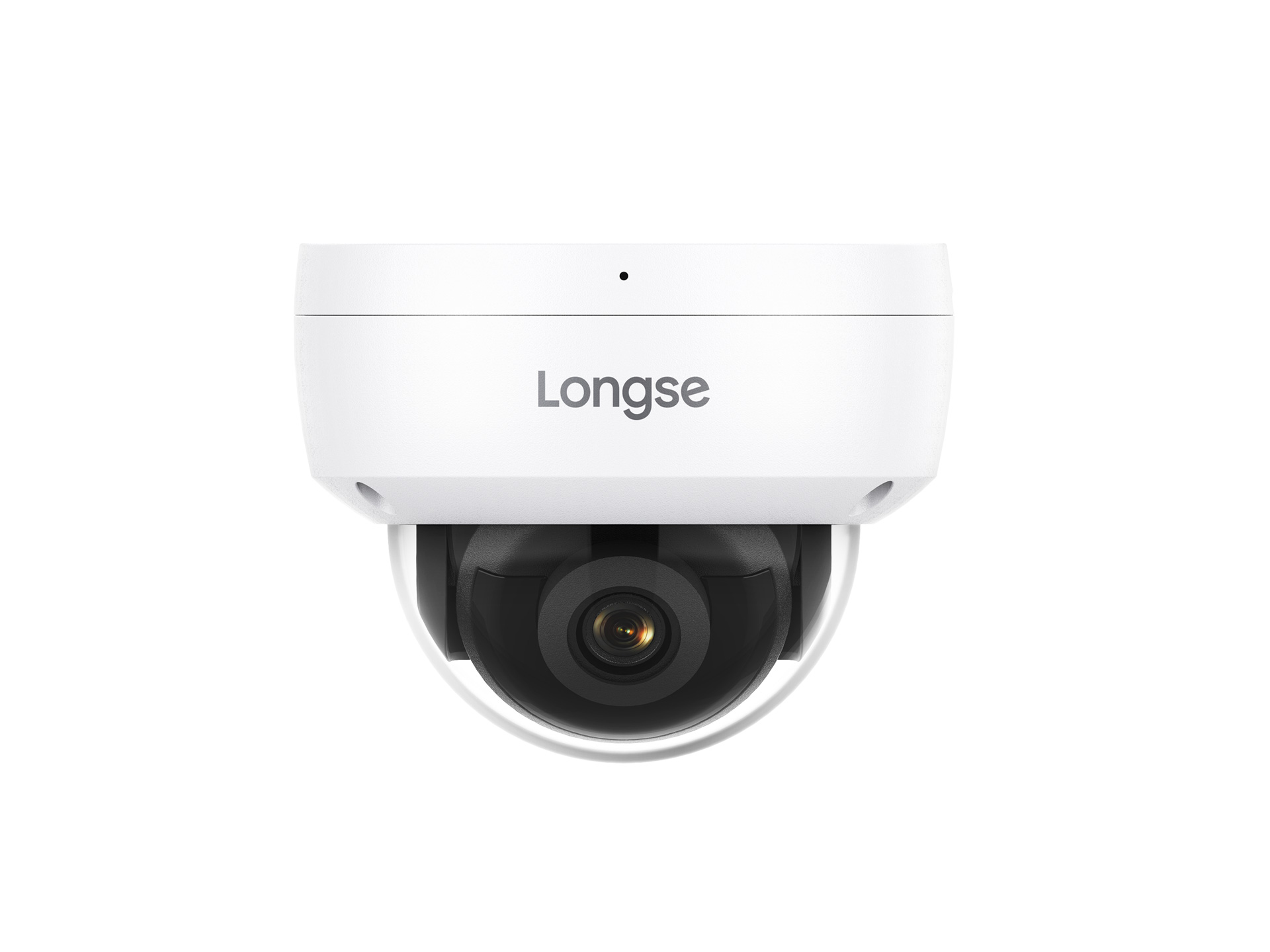

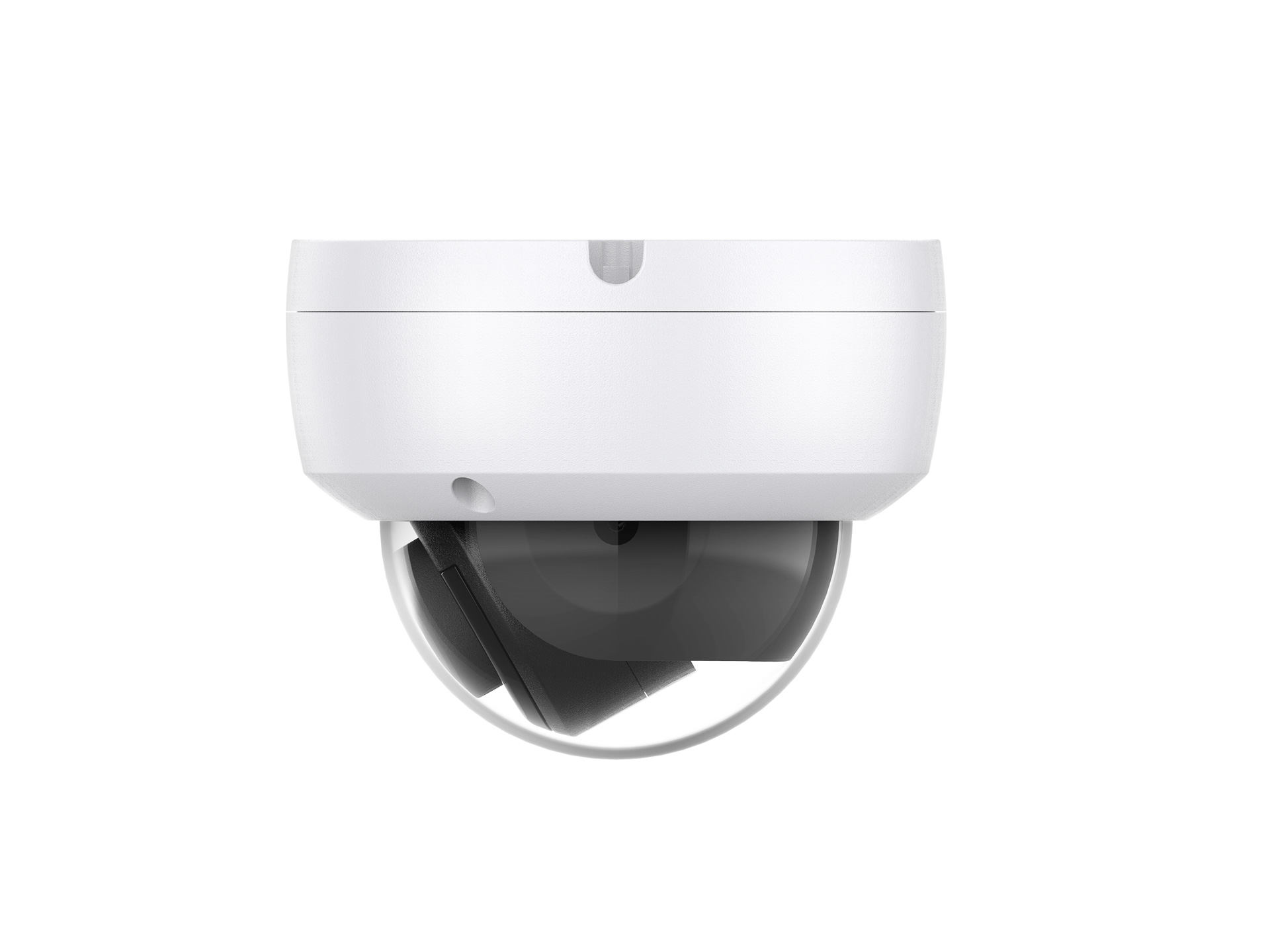

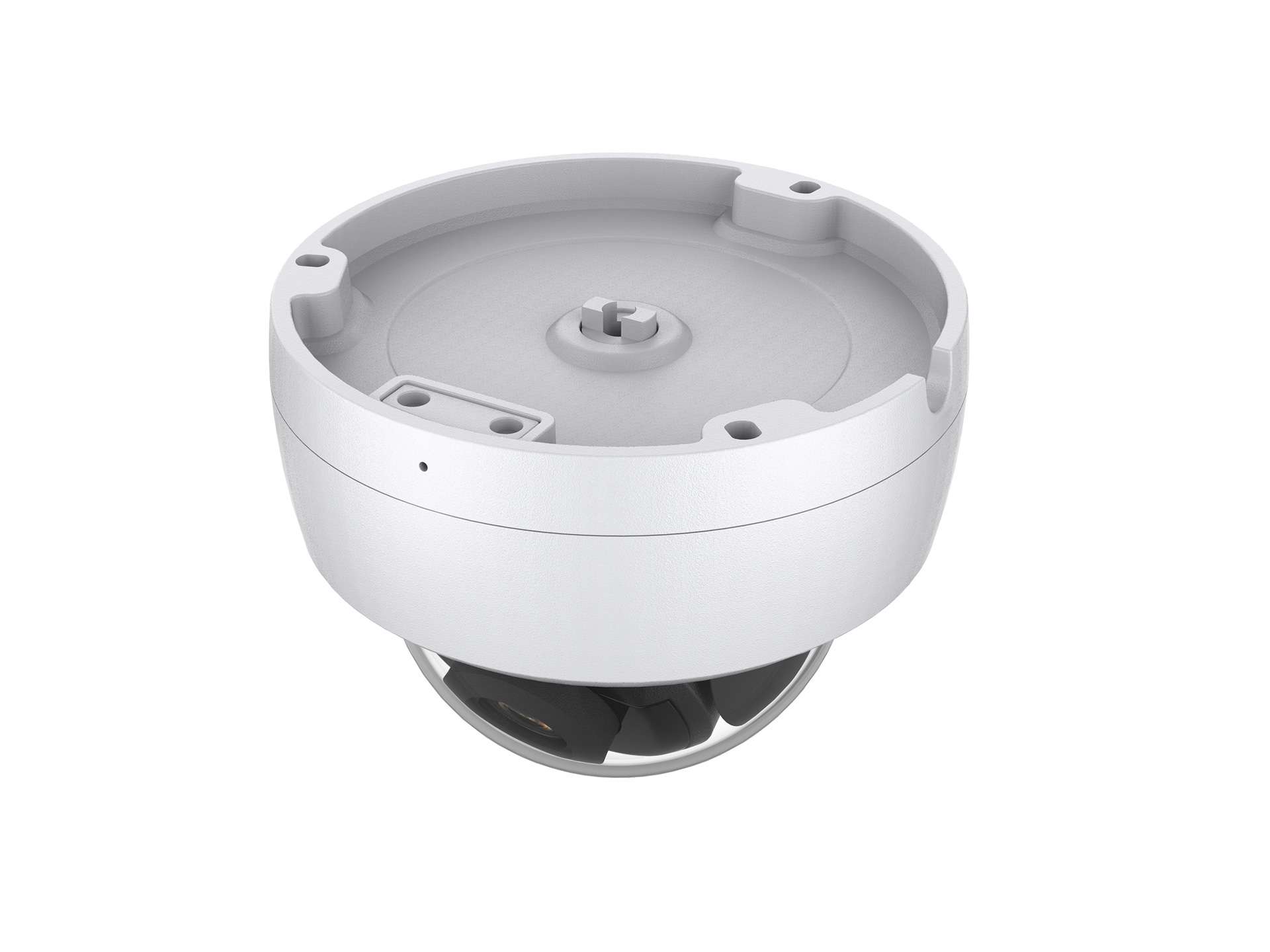

Photos
Files
- DMMABRL5R-datasheet.pdf (document, 2.5 MB)
