PT4A118XIGL500
PTZ Camera
- Maker:
- Longse
- Listed:
- 2022
Longse

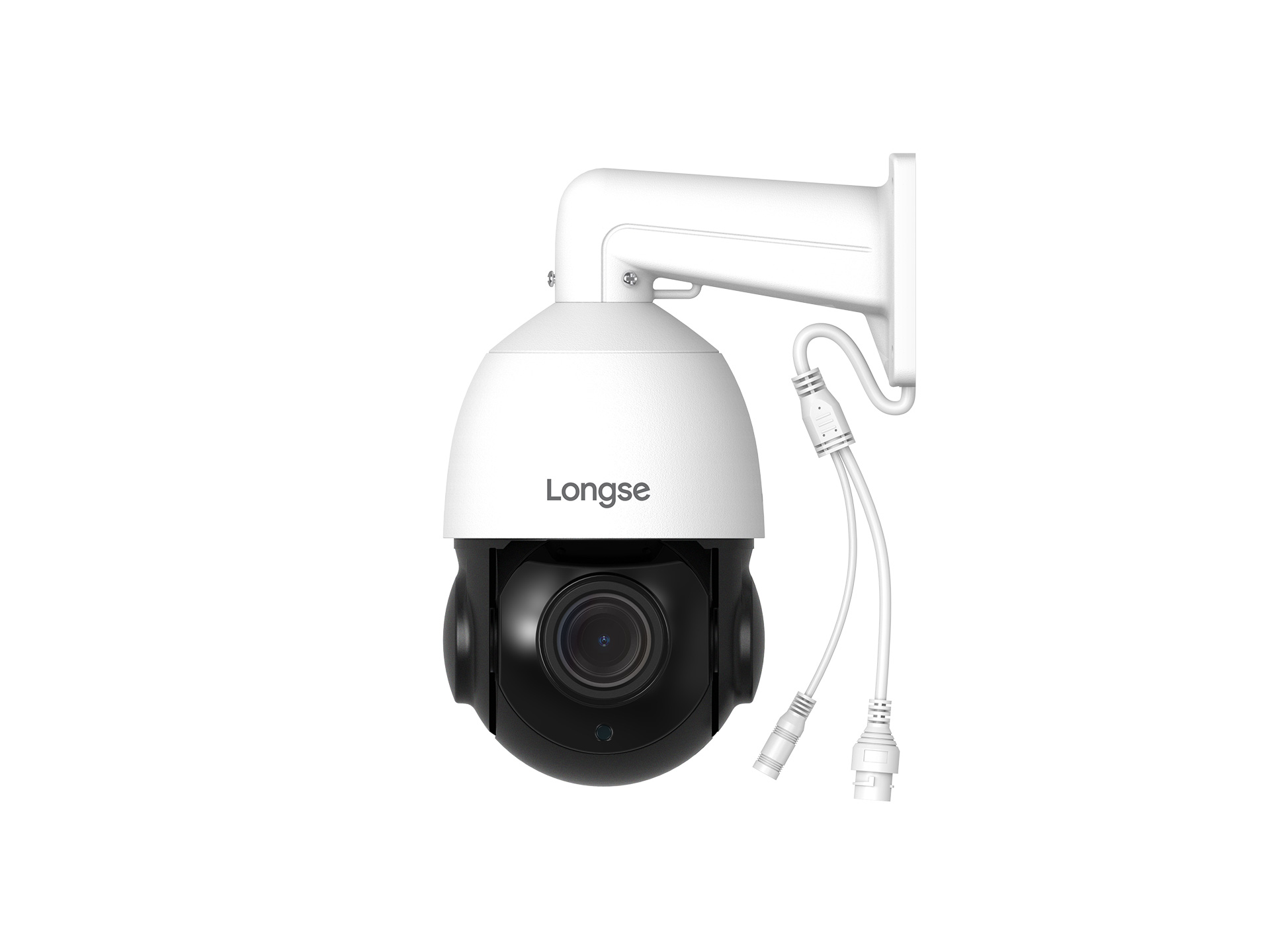

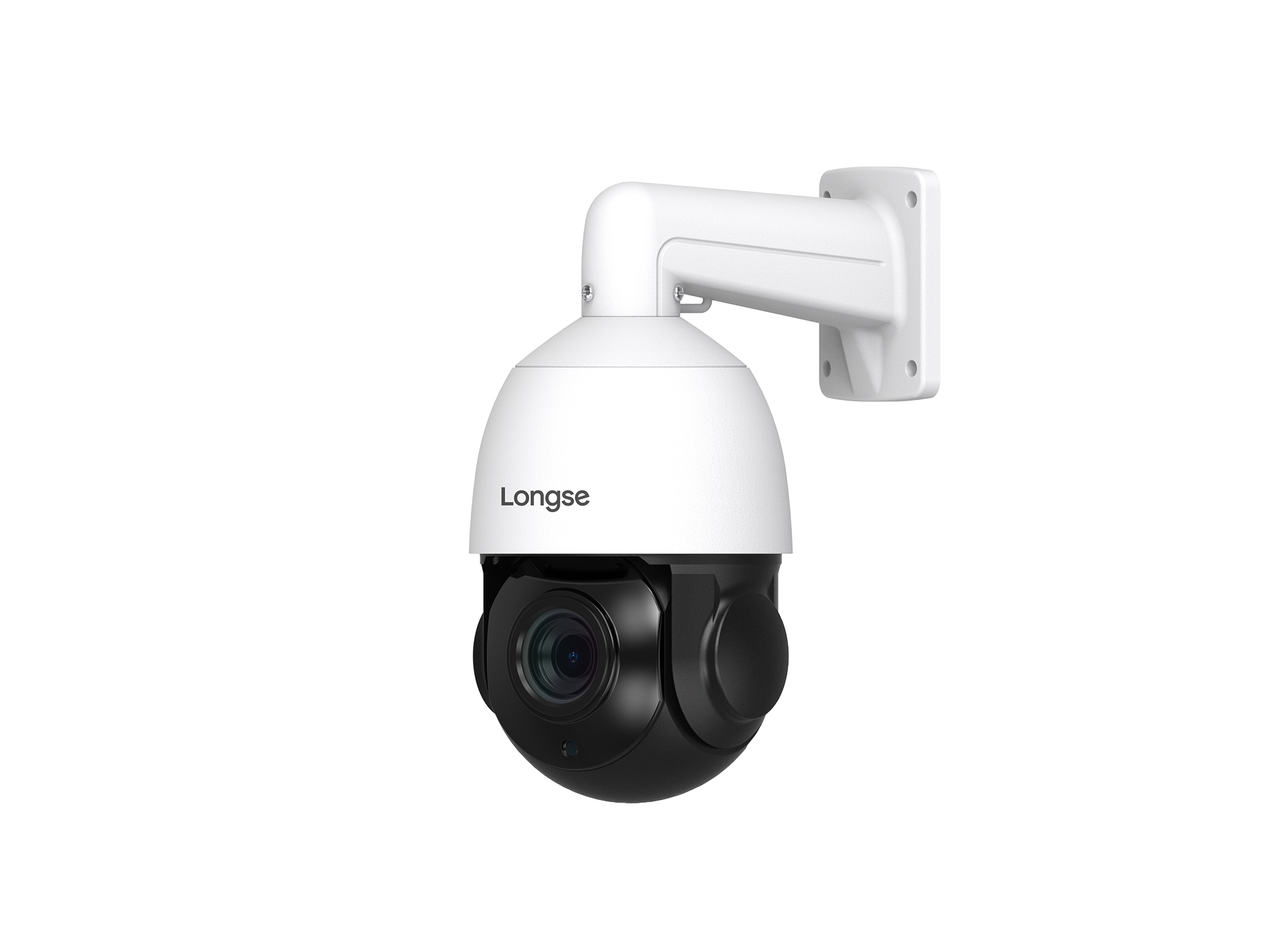

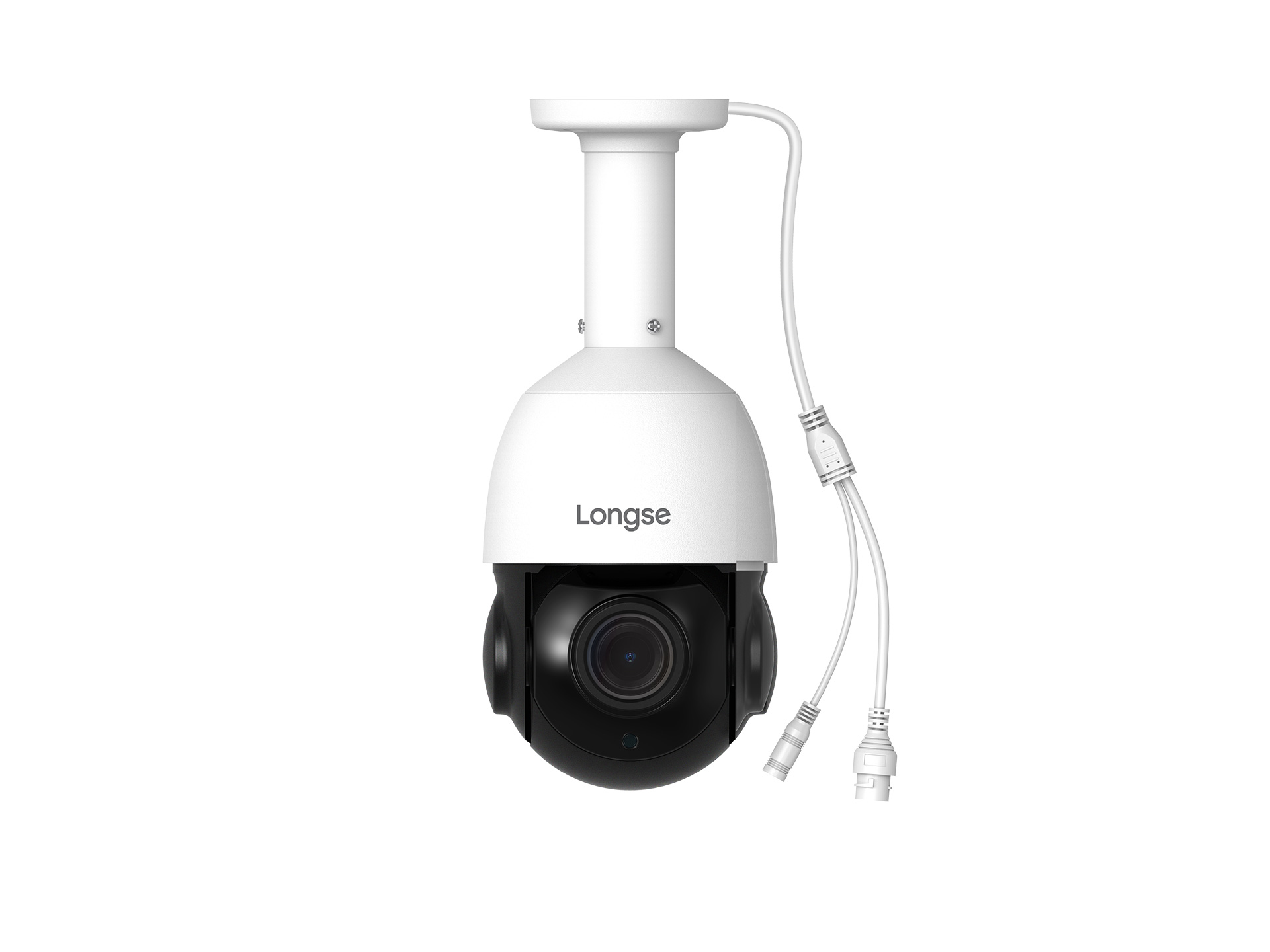

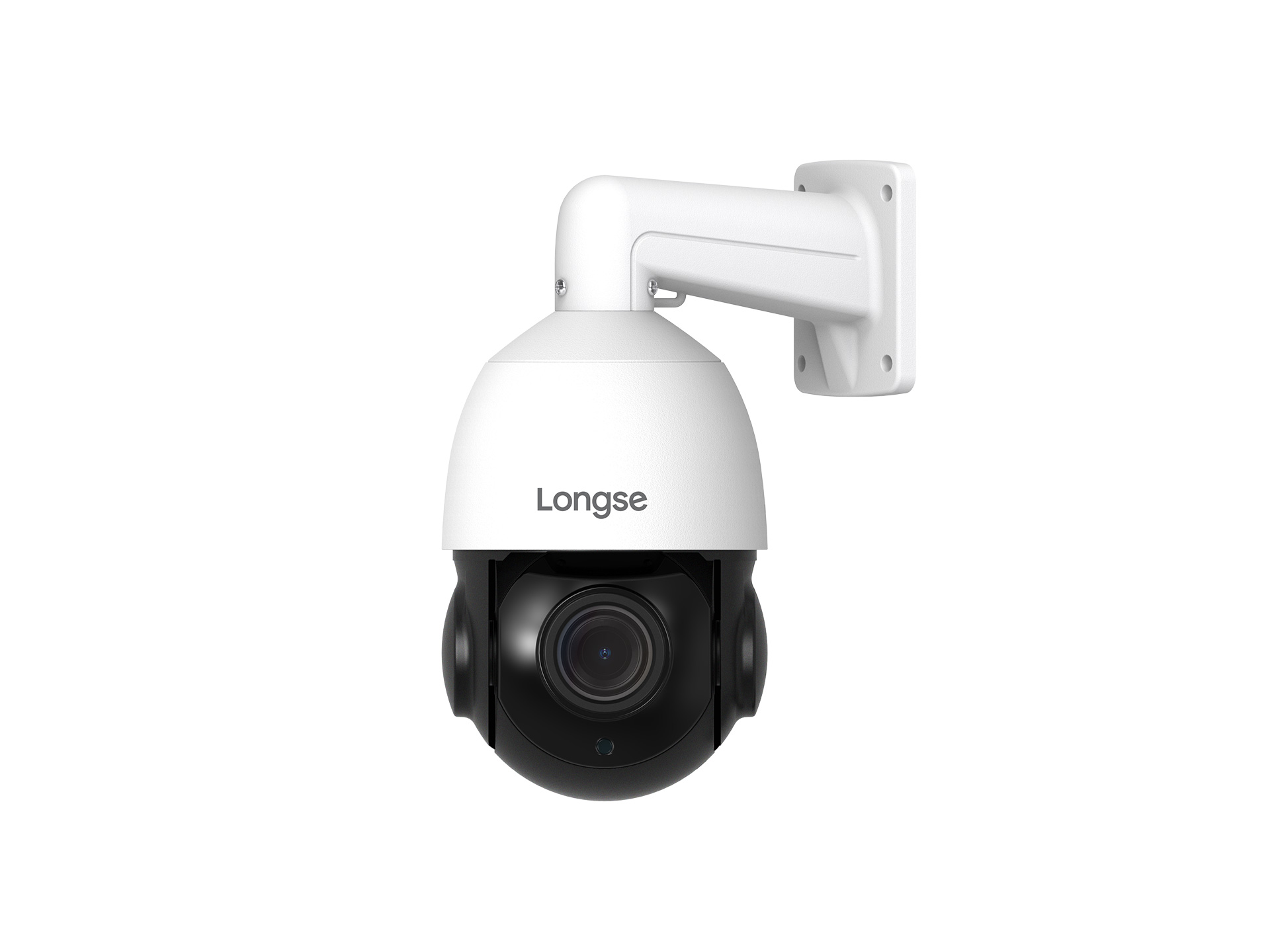

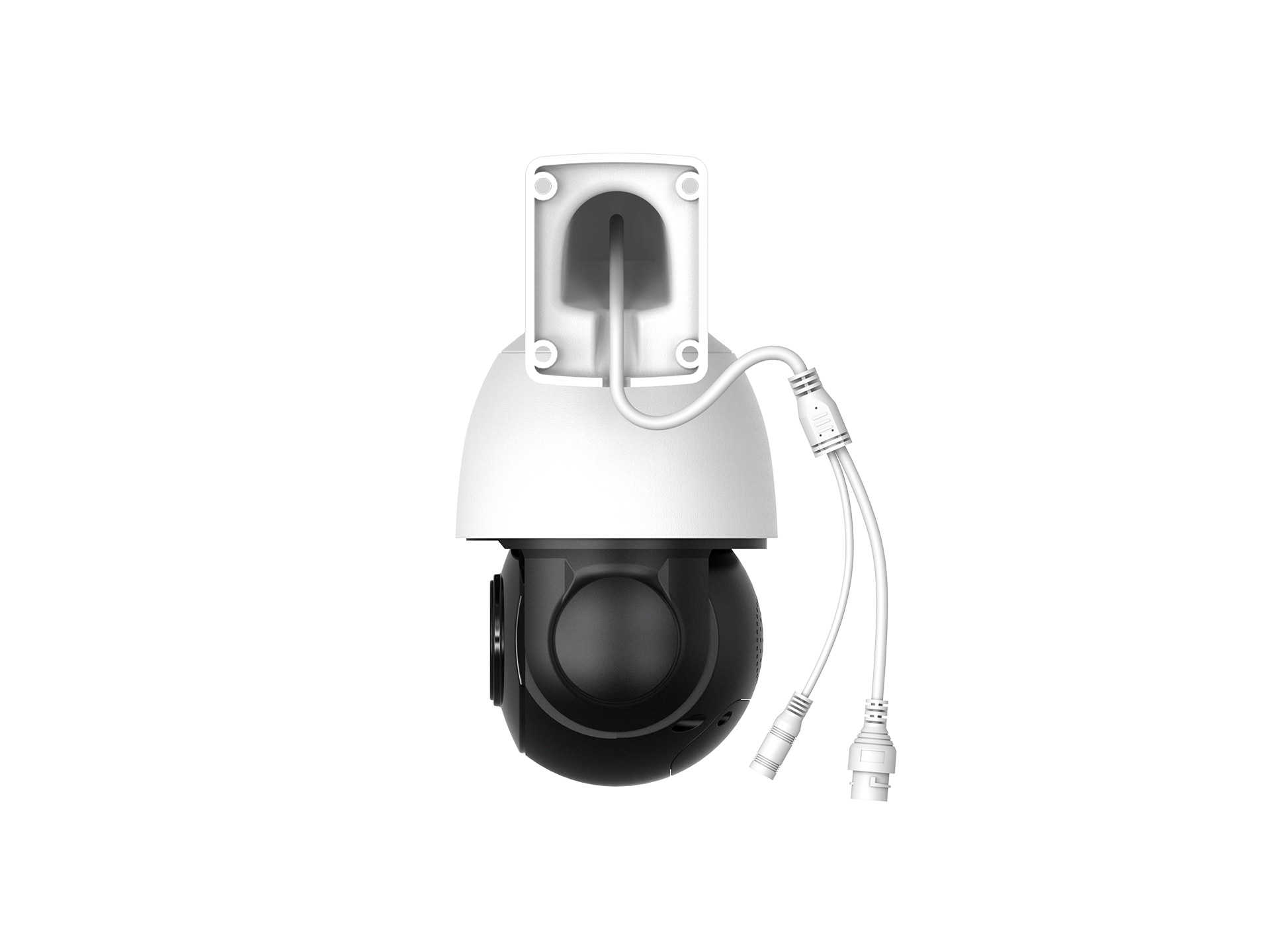

5MP 18X Optical Zoom Outdoor AI Tracking Speed Dome Camera
Features
- High quality imaging with 5MP resolution
- 1/2.8"Progressive Scan CMOS Sensor
- Support H.264/H.265/H.264+/H.265+ Compression
- Horizontal Rotation Speed：80°/S
- Horizontal Rotation Range：0°~360°
- Tilt Rotation Speed: 30°/S
- Tilt Rotation Range:0°~93°
- 18X Optical Zoom
- Support3D Human Tracking/ Motion detection based on human detection/ Intrusion Detection based on human detection
- IP66
| Series | PTZ |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Horizontal Resolution | 5MP |
| Compression | H.264/H.265/H.264+/H.265+ |
| Minimun Illumination | Color: 0.008 Lux @ (F1.8, AGC ON),B/W: 0 Lux with IR |
| S/N Ratio | 60db |
| Horizontal Rotation Speed | 80°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 30°/S |
| Tilt Rotation Range | 0°~93° |
| Preset Points | 220 |
| Guard Tours | 8 groups |
| Guard Points | Max.20 points |
| Focus Length | 5.35-96.3mm F1.8-F3.9 |
| Focus Control | 18X Optical Zoom |
| Infrared LED | ￠35 x 6PCS |
| IR Range | 80m |
| Day-night mode | AUTO |
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support (PROFILE S,PROFILE T） |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA |
| Main Stream1 | 5MP(2592*1944)@20fps |
| Main Stream2 | 4MP(2560*1440)@25fps |
| Main Stream3 | N/A |
| Main Stream4 | N/A |
| Main Stream5 | N/A |
| Main Stream6 | N/A |
| Sub Stream1 | D1(720*480)@20fps |
| Sub Stream2 | CIF(352*288)@20fps |
| Sub Stream3 | N/A |
| Sub Stream4 | N/A |
| Intelligent Analysis | 3D Human Tracking(Effective Range:5~50M ,Speed: 3~12KM/h) / Motion detection based on human detection/ Intrusion Detection based on human detection |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, Distortion |
| Full Color | N/A |
| Corridor Pattern | N/A |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | 120dB(Not support in 5MP resolution) |
| Motion Detection | Support(support enable the detection based on human movement only) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Czech |
| Audio | Built-in Mic & Speaker |
| Audio Encode | G711A，C711U |
| Alarm | N/A |
| SD Card Slot | Support |
| POE | Optional |
| Weatherproof | IP66 |
| Operating Temperature | Light on: -20~45℃; Light off:-20~55℃ |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12/1.2A(Device power consumption); DC12/3A(Power supply) |
| Lightning Protection | Transient voltage 6000V |
| Dimension | device:136*136*230(mm); package:185*185*285(mm) |
| Weight | device:1.56Kgs; package:2.24Kgs |
Photos
Files
- PT4A118XIGL500-datasheet.pdf (document, 1.9 MB)
