PT7K1KP5RPTZ-X18
PTZ Camera
- Maker:
- Longse
- Listed:
- 2026
Longse

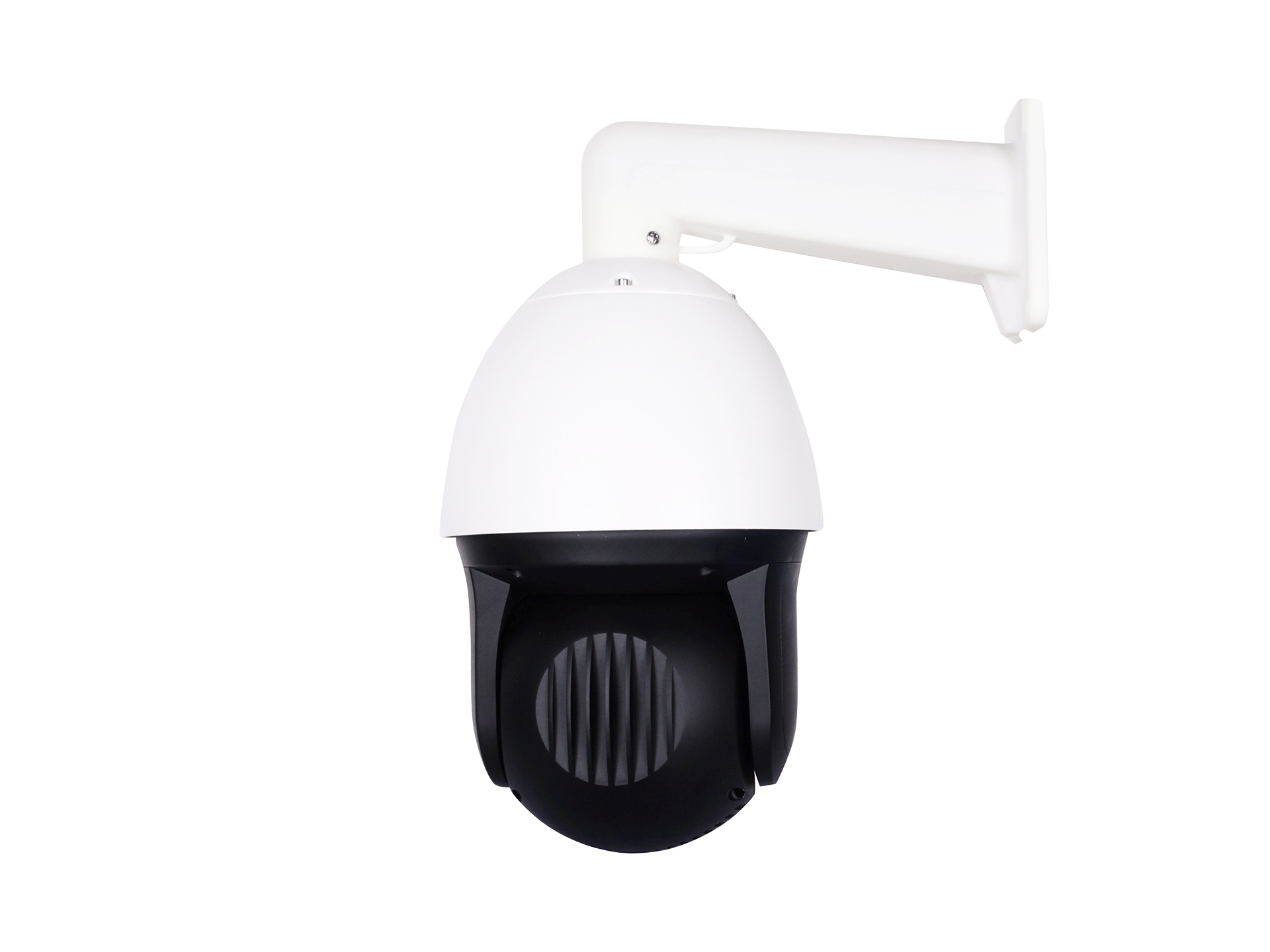

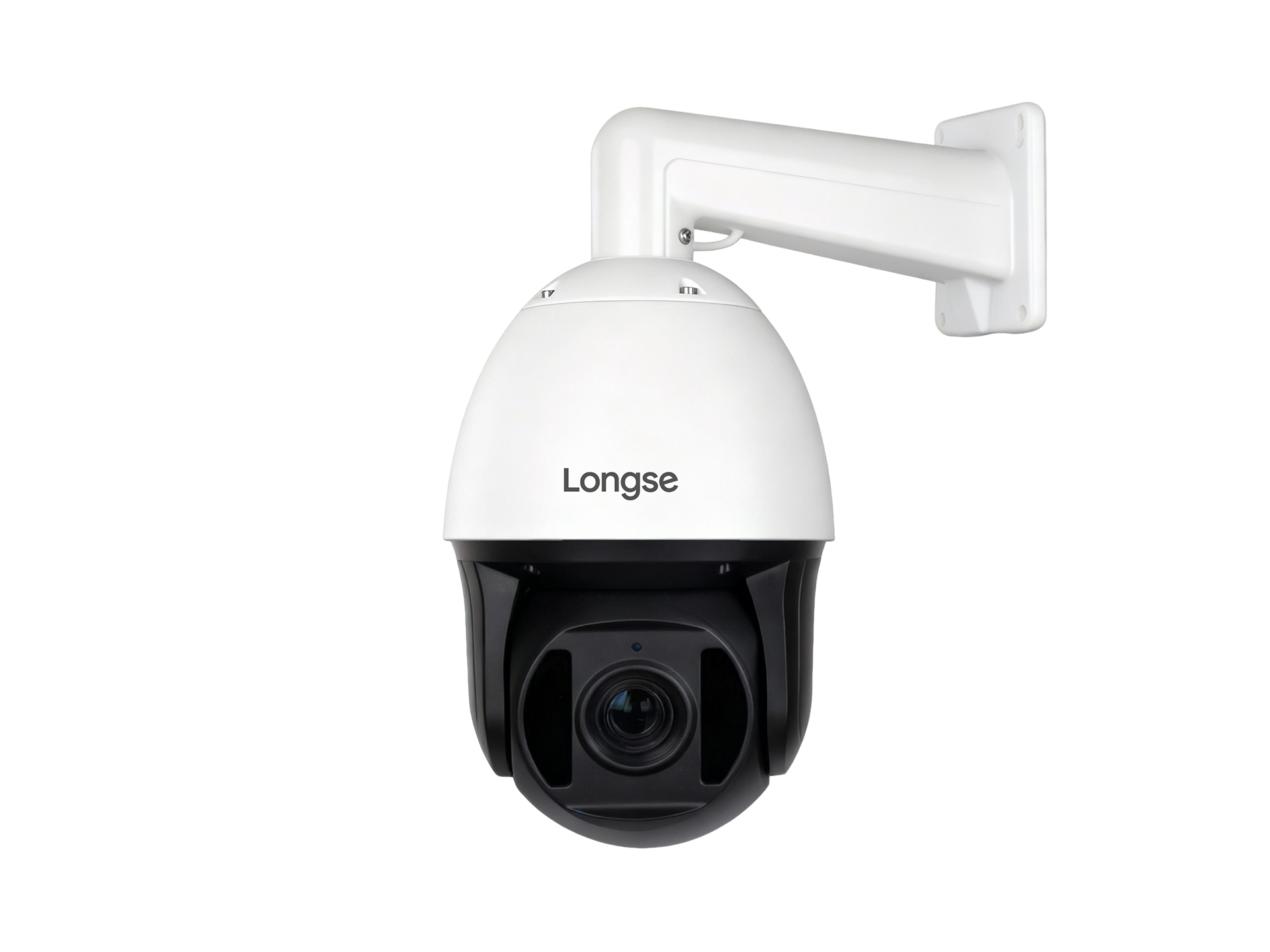

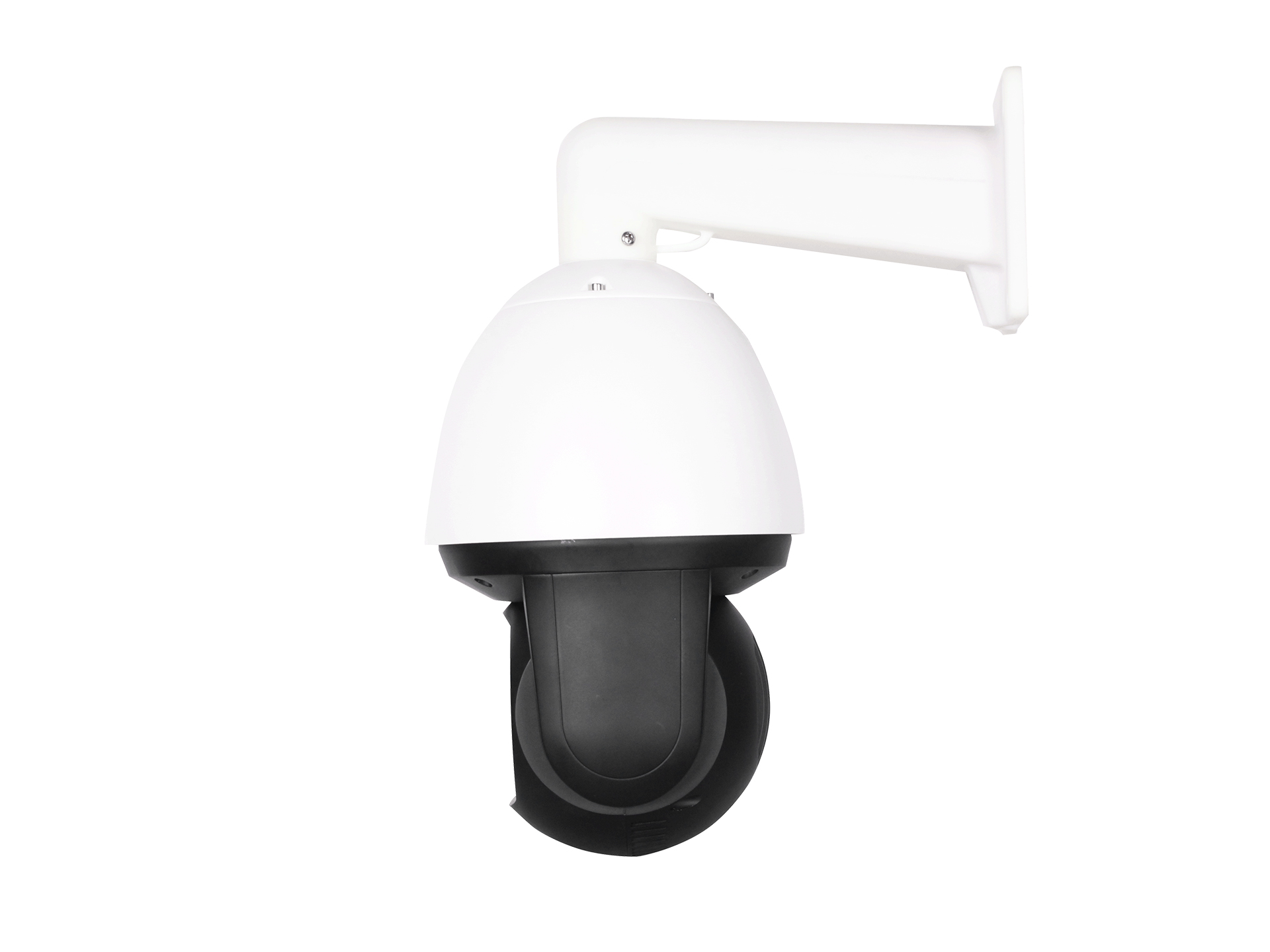

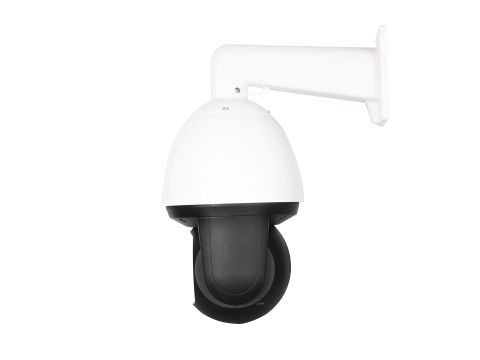

5MP 18X Optical Zoom Outdoor AI Tracking Speed Dome Camera
Features
- High quality imaging with 5MP resolution
- 1/2.8"Progressive Scan CMOS Sensor
- Support H.264/H.265/H.264+/H.265+ Compression
- Horizontal Rotation Speed：60°/S
- Horizontal Rotation Range：0°~360°
- Tilt Rotation Speed: 40°/S
- Tilt Rotation Range:0°~93°
- 18X Optical Zoom
- Support 3D Human Tracking, Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection, Loitering Detection/People Gathering Detection, Motion Detection
- IP66
| Series | PTZ |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
| Horizontal Resolution | 5MP |
| Compression | H.264/H.265/H.264+/H.265+ |
| S/N Ratio | 60db |
| Horizontal Rotation Speed | 60°/S |
| Horizontal Rotation Range | 0°~360° |
| Tilt Rotation Speed | 15°/S |
| Tilt Rotation Range | 0°~93° |
| Preset Points | 220 |
| Guard Tours | 8 groups |
| Guard Points | Max.20 points |
| Focus Length | 5.98-93.9mm F2.57-F3.85 |
| Focus Control | 18X Optical Zoom |
| Infrared LED | 6PCS + 2PCS Laser LED |
| IR Range | 150m |
| Day-night mode | AUTO |
| Network protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, UDP, RTP, RTSP, RTCP, RTMP, NTP, SMTP, PPPoE, SNMP, QoS, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA |
| Main Stream1 | 2592*1944@30fps |
| Main Stream2 | 2560*1440@30fps |
| Main Stream3 | 1920*1080@30fps; 1280*720@30fps |
| Main Stream4 | 1280*720@30fps |
| Main Stream5 | N/A |
| Main Stream6 | N/A |
| Sub Stream1 | 1280*720@30fps |
| Sub Stream2 | 720*480@30fps |
| Sub Stream3 | N/A |
| Sub Stream4 | N/A |
| Intelligent Analysis | 3D Human Tracking(Effective Range:5~50M ,Speed: 3~12KM/h), Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection(based on human and vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human and vehicle movement) |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC |
| Full Color | N/A |
| Corridor Pattern | Support |
| Defog Mode | N/A |
| ROI | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support(support enable the detection based on human and Vehicle movement) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Built-in Mic & Speaker |
| Audio Encode | G711A/U,AAC,MP2L2 |
| Alarm | N/A |
| SD Card Slot | Support |
| POE | Optional |
| Weatherproof | IP66 |
| Operating Temperature | Light on: -30~50℃; Light off:-30~55℃ |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12/1.83A(Device power consumption); DC12/3A(Power supply) |
| Lightning Protection | Transient voltage 4000V |
| Dimension | device:204*204*360mm; package:310*310*440mm |
| Weight | device:2.28Kgs; package:4.05Kgs |
Photos
Files
- PT7K1KP5RPTZ-X18-datasheet.pdf (document, 1.6 MB)
