H4-38
5MP Dual-band Network High-Definition Camera Module · IP Camera Module
- Maker:
- Ruision
- Listed:
- 2026
Ruision
5MP Dual-band Network High-Definition Camera Module
5MP intelligent full color/intelligent dual light；Human/vehicle detection, intelligent applications；38*38 size, ultimate heat dissipation
Features
- 1/3”HD CMOS sensor；
- 5MP HD resolution, support for dual-stream simultaneous output；
- Intelligent detection and light collection, allowing you to see faces clearly at night；
- Large AI algorithm model built into the device；
- Built-in human and vehicle shape detection functions; expanded application scenarios such as electronic fence, cross-border detection, off-duty detection, and passenger flow statistics；
- Support linkage sound and light alarm; alarm sound supports custom recording and text-to-speech；
- Support alarm output, can be linked to red and blue lights and other alarms；
- Support OSD character overlay function, support multi-national OSD language overlay display；
- Support built-in amplifier, can be directly connected to the speaker; support audio output, can be connected to the external sound column；
- Support audio input and output, two-way intercom, audio and video synchronization；
- Support reset function；
- Built-in WEB 2.0 page, supports Edge, Chrome, Safari, Firefox and other non-IE core browsers；
- Support ONVIF protocol and can be connected to third-party NVR；
- Support Privacy protection to protect privacy areas；
- Support network time synchronization；
| D & N format | Black light full-color, intelligent dual light, infrared mode, intelligent face recognition without exposure |
|---|---|
| Image adjustment | Supports automatic white balance, D-WDR, backlight compensation, and adjustable parameters such as brightness, contrast, and chromaticity |
| Privacy occlusion | Support privacy occlusion areas setting |
| Mirror | Support |
| OSD | Support OSD settings, support OSD drag; can overlay and display global OSD languages |
| Electronic fence | Supports detection of human/vehicle shapes, and the device will alarm when entering the warning area； |
| Cross-border detection | Supports detection of human/vehicle shapes, and supports A->B, B->A, and A<->B direction detection; |
| Off-duty detection | Support setting detection area, the device will alarm after a person leaves for a certain period of time, and the alarm will stop after the person returns； |
| Passenger flow statistics | Support counting the number of people entering and leaving, and can superimpose OSD on the screen in real time; daily data can be checked； |
| Voice alarm | Support linked voice broadcast, and voice content can be customized and recorded； |
| IO alarm | Support, can be linked to red and blue light alarm |
| linkage | Support linkage with NVR large screen, local voice, AI recording, push and other functions |
| Compression format | H.264，H.265，H.265+ |
| Resolution | Mainstream：5MP(2880*1620)@30FPS/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080); Sub-stream：448P(800*448)/360P(640*360)/ CIF(352*288) |
| Internet | RJ-45 10M/100M Self-adaption |
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，GB28181，DDNS， Active registration |
| Access protocol | ONVIF protocol / private protocol /CGI |
| EasyVMS | NVR centralized management， client:：EasyVMS |
| Audio compression | G.711U、G.711A |
| Audio input | Support（recommend -36DB MIC） |
| Audio output | Support，Built-in power amplifier（recommend 8Ω2W） |
| Size | 38*38 size，38*38 Hole position |
| Work temperature | -30℃～+60℃ |
| Power supply | DC 12V |
| PCB marking | H4CX-C0-A |

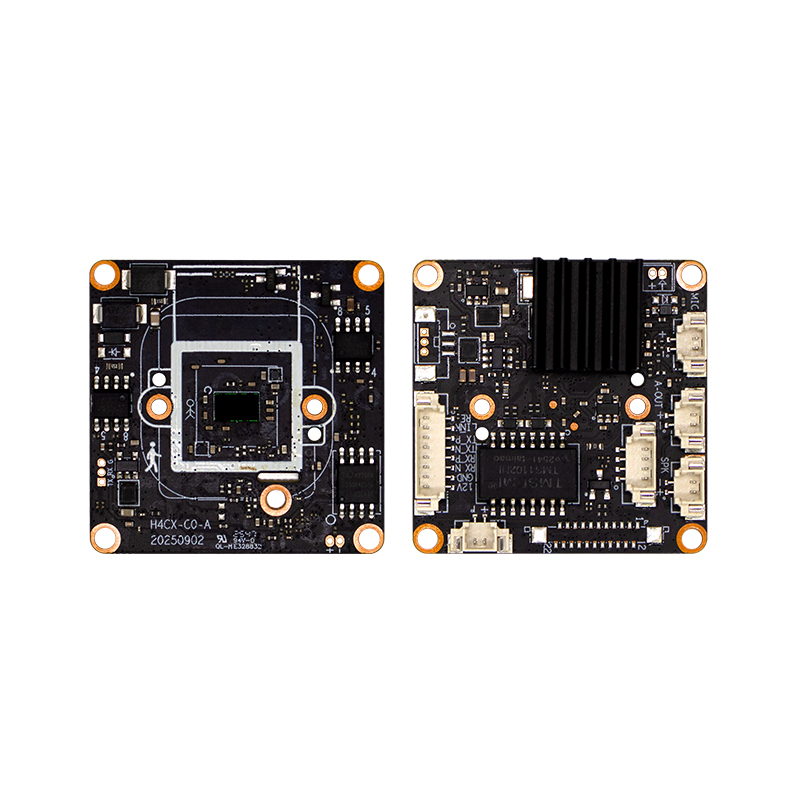

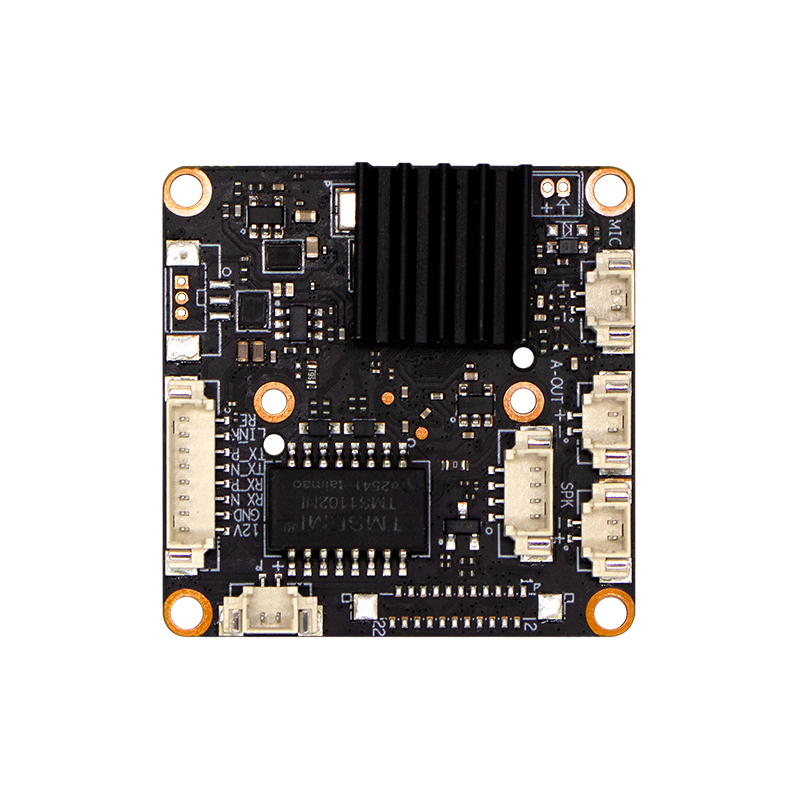

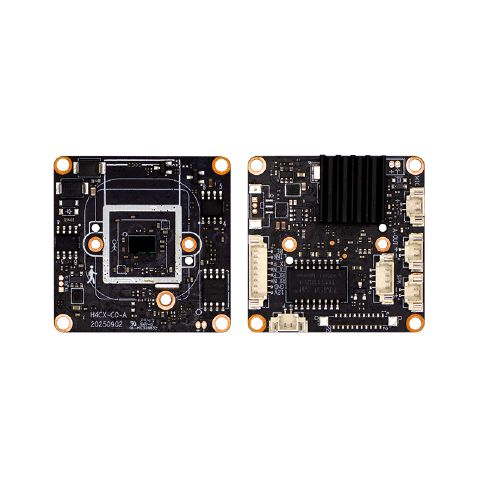

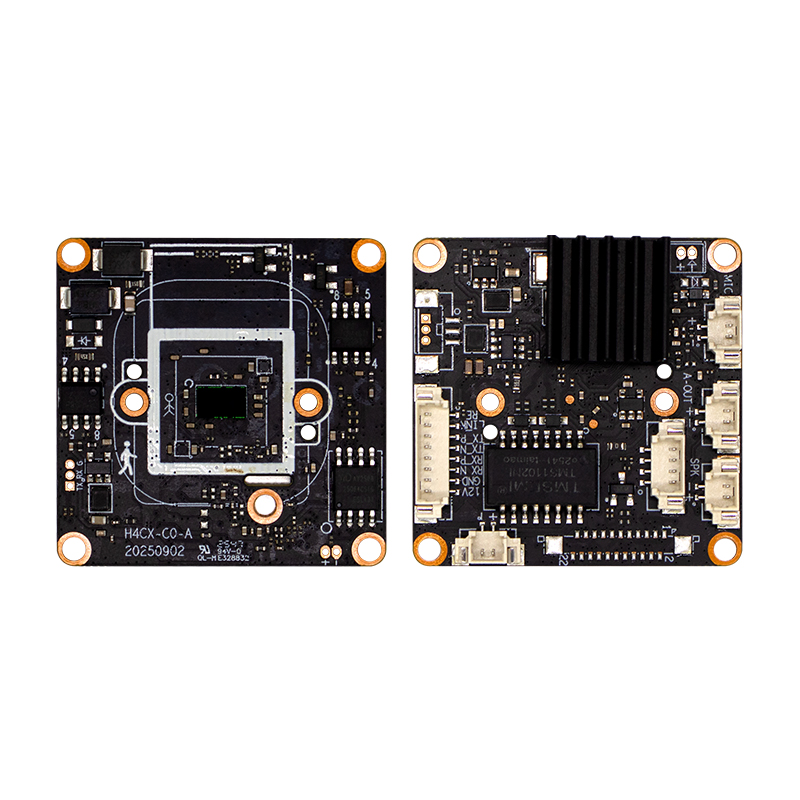

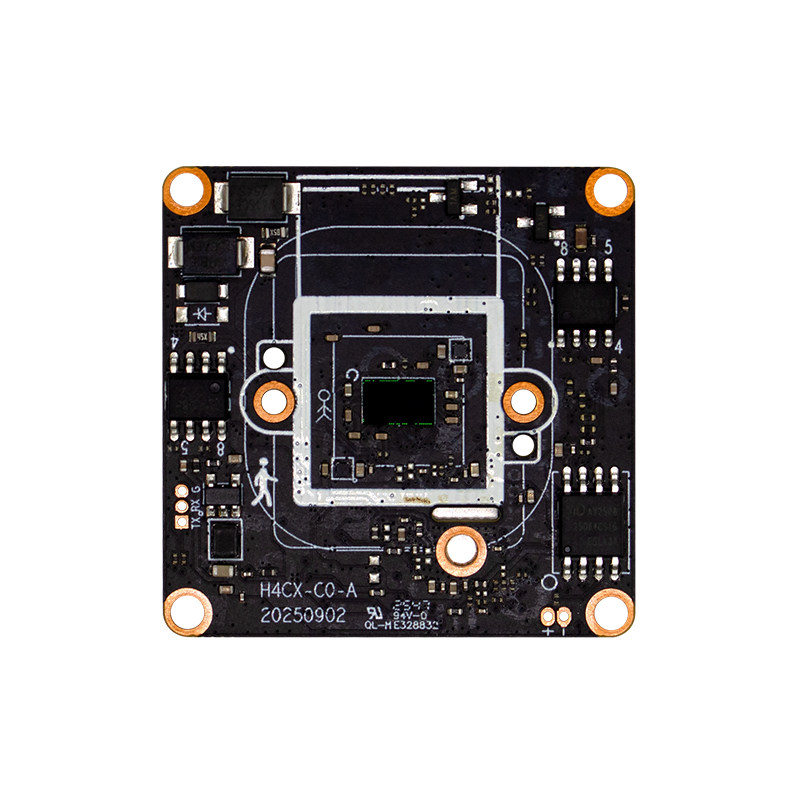

Photos
Files

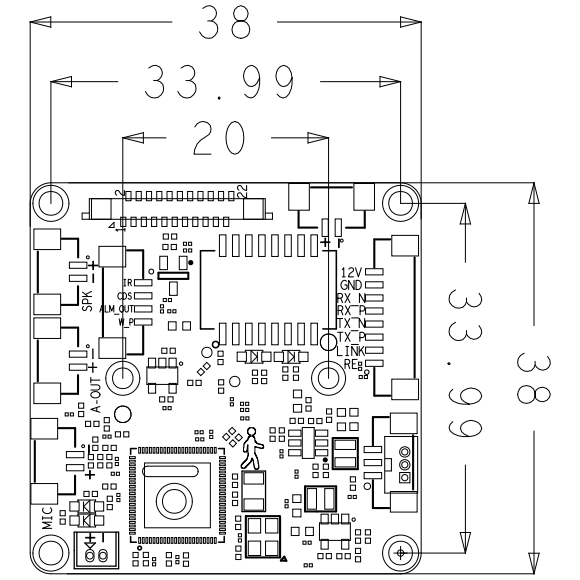

- H4-38-sheet.png (document, 78 KB)
- H4-38-Intelligent-Camera-module-specification.pdf (document, 1.1 MB)
