H4-W
4MP Dual-band Network High-Definition WIFI Camera Module · IP Camera Module
- Maker:
- Ruision
- Listed:
- 2026
Ruision
4MP Dual-band Network High-Definition WIFI Camera Module
WI-FI 6 transmmission; APP configure network by bluetooth; Intelligent light collection ; watch face clearly;Support humanoid/ Vehicle detection; Auto tracking; 4MP Full color/ Intelligent Dual light; Support 512G TF card
Features
- The chip is equipped with a 1T computing power NPU, and the device is equipped with an AI algorithm large model;
- Supports wired and wireless connections; Wireless connection supports Wi Fi 6 for more stable transmission;
- Equipped with Wi Fi hotspot, it can be monitored even without a network; The APP supports Bluetooth networking, making it more convenient to connect to Wi Fi· Intelligent detection of light reception, allowing for clear facial recognition at night;
- Built in WEB 2.0 page, supporting Edge, Non IE kernel browsers such as Chrome, Safari, and Firefox· Supports 512G TF cards; Supports intelligent recording/regular recording, with automatic overwrite when fully stored;
- 4MP high-definition resolution, supporting dual stream simultaneous output;
- A brand new app page, convenient to use, supporting app alarm push· Support sharing function, The app can share up to 16 people;
- Built in human and vehicle shape detection functions; Expand the application scenarios of electronic fences, boundary crossing detection, departure detection, and passenger flow statistics· Supports humanoid tracking and automatically returns to its original position after tracking;
- Support linked sound and light alarms; Alarm sound supports custom recording and text to speech conversion· Supports alarm output and can be linked to red and blue lights for alarms;
- Supports ONVIF protocol and can access third-party NVR· Support screen occlusion and protect privacy areas;
- Support OSD character overlay function and network synchronization;
- Supports audio input and output, two-way intercom, and audio and video synchronization;
| Day&night format | Black light full-color, intelligent dual light, infrared mode, intelligent face recognition without exposure |
|---|---|
| Image adjustment | Supports automatic white balance, digital wide dynamic, backlight compensation, and adjustable parameters such as brightness, contrast, and chromaticity |
| Privacy occlusion | Support privacy occlution areas setting |
| Mirror | Support |
| OSD | Support OSD setting ，Support OSD moving |
| Electronic fence | Support detection of human form, support polygon defense area; Support the device to alarm after entering or leaving the warning area |
| Cross-borber detection | Support humanoid/vehicle detection, support A→B, B→A, A↔B direction detection |
| Dimission detection | Set the detection area, the equipment will alarm after the personnel leave for a certain period of time, and the alarm will stop after returning |
| Passenger flow statistics | Support for detecting the number of people entering and leaving |
| Human tracking | Support human tracking ，when camera detect human and then auto tracking； |
| Voice broadcasting | Support linkage voice broadcast, voice content can be customized recording |
| Camera alarm function | Light alarm, voice broadcast, alarm output |
| Video recorder alarm linkage | Support linkage video recorder big picture, local voice, AI video, push and other functions |
| Compression format | H.264 ，H.265 |
| Resolution | Mainstream：4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080)/1MP(1280*720); Sub-stream：448P(800*448)/360P(640*360)/ CIF(352*288) |
| Storage | Support 512G TF card，Support NVR record； |
| Internet | RJ-45 10M/100M automatically |
| Protocol | ONVIF ，P2P ，CGI ，HTTP ，TCP/IP ，IPv4 ，RTSP ，UDP ，NTP ，DHCP ，DNS ，IP Filter |
| WI FI | Support WI-FI 6 ，2.4G ，802.11 b/g/n |
| Bluetooch | Support configure network by bluetooth |
| Connecting protocol | ONVIF protocol/ private protocol/ CGI |
| EasyVMS | App：HiEasy，VMS ：EasyVMS ，NVR connecting |
| Audio compression | G.711U、G711A |
| Audio input | Support（recommend-36DB MIC） |
| Audio output | Support，Built-in power amplifier（recommend 8Ω2W） |

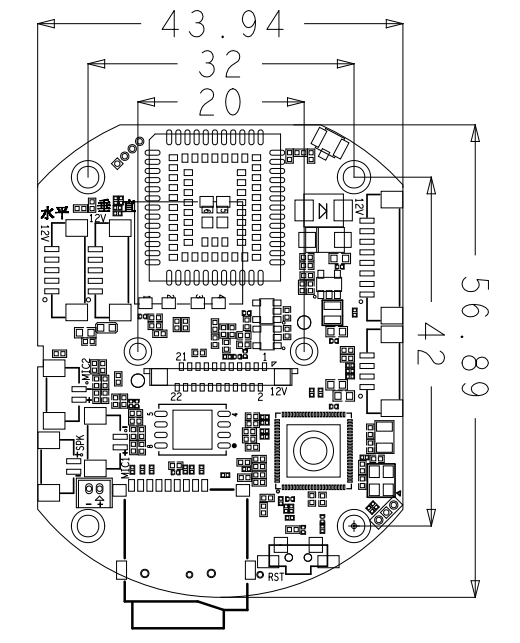

| Size | 58*44 ，WiFi board screw hole |
| Work temperature | -30℃ ~ +60℃ |
| Power supplier | DC 12V |
| PCB marking | H4-W/G-A0-A |

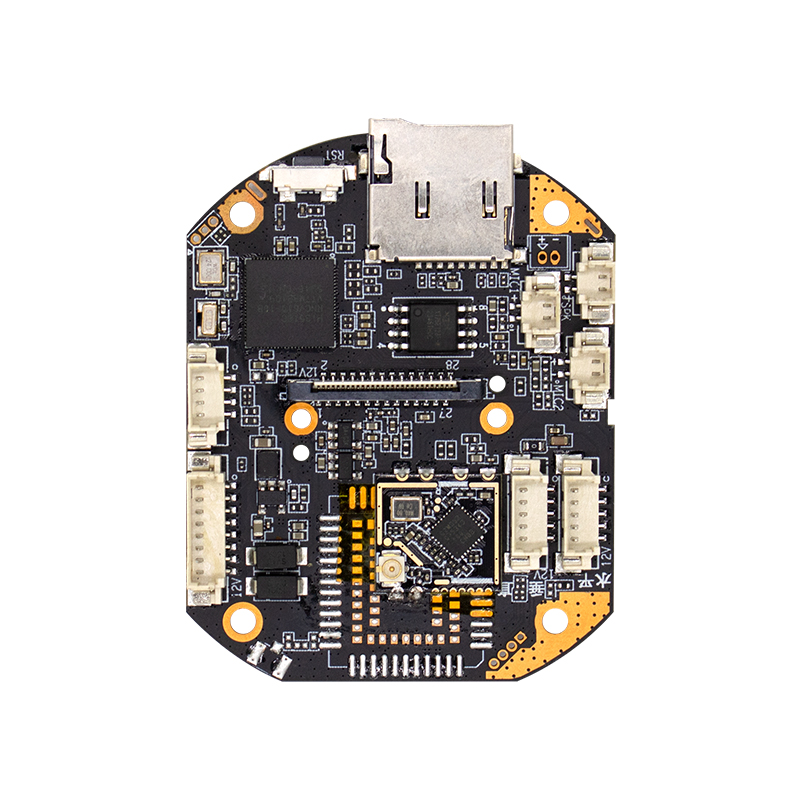

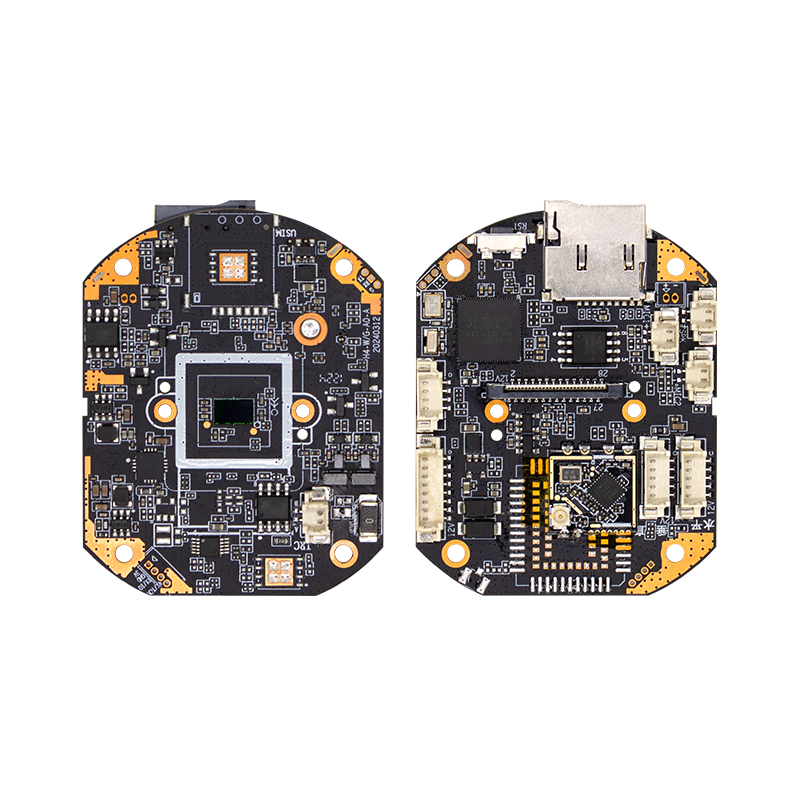

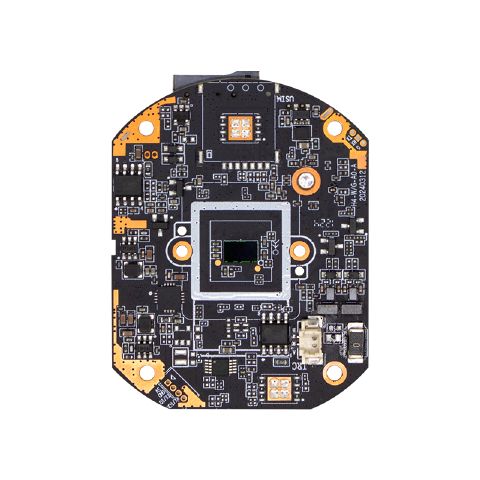

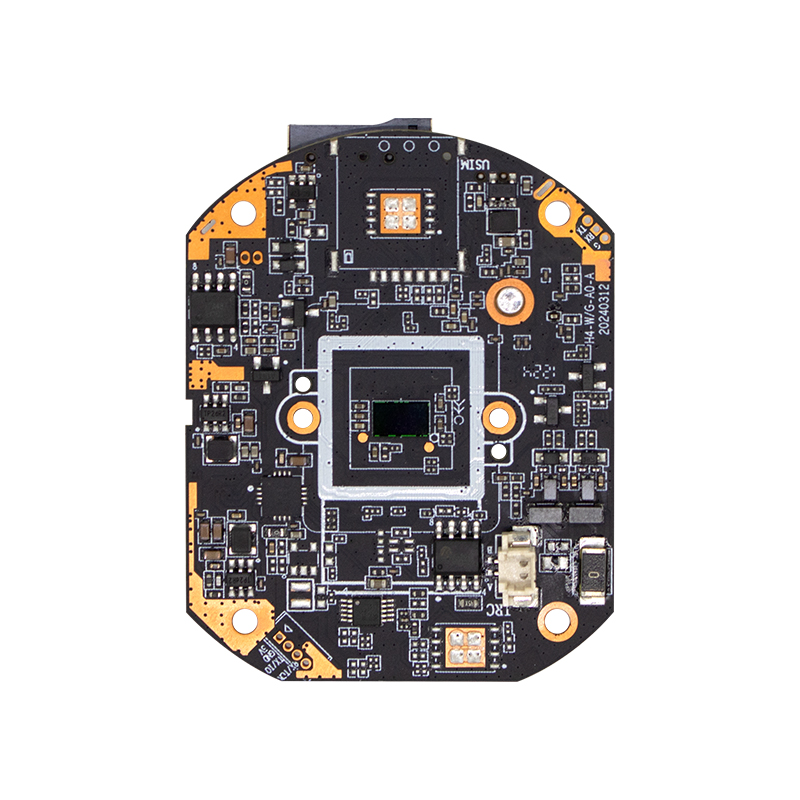

Photos
Files
- H4-W-sheet.png (document, 97 KB)
- H4-W-WIFI-Intelligent-camera-module-specification.pdf (document, 239 KB)
