H4SVX-W
5MP Black Light Network High-Definition WIFI Camera Module · IP Camera Module
- Maker:
- Ruision
- Listed:
- 2026
Ruision
5MP Black Light Network High-Definition WIFI Camera Module
1/1.8 sensor, Big size high-sensitivity；Built-in AI ISP image algorithm, higher definition at night；5MP@30FPS，Smart black light full color；Human Shape & Vehicle Shape Detection；Intelligent PWM light technology, see face clearly
38x38 double board，Support RTC battery function
Support 512GB TF card storage
Features
- 1/1.8 big size high sensitivity sensor, black light full color; recommended lens：YT10196、YT10151；
- Built-in AI ISP image algorithm to significantly improve night effects；
- 5MP@30FPS，support dual stream output；Intelligent PWM light technology, see face clearly at night；
- ISP built-in 1T computility NPU, device built-in AI algorithm large mode；
- Support human & vehicle shape detection, extended to E-fence, cross border, out of duty, people counting application scenarios, etc.
- Support sound & light linkage alarm, alarm sound supports customized and text to speech.
- Support alarm output, enable linkage to red & blue light alarm
- Support RTC battery function, can save time when power off
- Built-in amplifier and can be directly connected to speakers;
- Built-in reset function
- WEB 2.0 page, support Edge, Chrome, Safari, Firefox browsers, etc.
- Expandable to support 512G TF card; supports intelligent recording/common recording, automatically overwriting when full;
- Support ONVIF protocol, enable to work with the 3rd party NVR
- Support image mask occlusion, protect privacy area
- Support OSD overlay function and network synchronization
- Support audio_in/out, two-way-talk, audio & video synchronization
| D/N mode | Blacklight full-color, Intelligent PWM light technology to prevent overexposure of faces; supports AI ISP image algorithms for even clearer night vision.Blacklight full color recommended lens: YT10196, YT10151.Dual light recommended lens：YT10207+IR0316； |
|---|---|
| Image Adjustment | AWB, DWDR, BLC, Brightness, Contrast Ratio, Chroma adjustable, etc |
| Privacy Mask | Support |
| Mirror | Support mirror setting； |
| OSD | Support OSD setting and drag OSD； |
| E-Fence | Support human/vehicle shape detection, devices will trigger alarm once enter alert area |
| Crossing | Detect human/Vehicle shape detection，Support A->B、B->A、A<->B direction detection |
| Off-duty detection | Support setting detection area. The device will alarm after a person leaves for a certain period of time, and the alarm will stop after the person returns. |
| People Counting | Detect people in & out and statistic numbers, overlay OSD to screen, can check daily data ； |
| Voice Alarm | Support voice broadcast and voice content customized |
| IO Alarm | Support；enable linkage red&blue lights alarm |
| NVR Linkage | Support NVR big screen, local voice, AI recording, notification push, etc. |
| Compression code | H.264，H.265，H.265+ |
| Resolution | Mainstream：5MP(2880*1620)@30FPS/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080); Sub-stream：448P(800*448)/360P(640*360)/ CIF(352*288) |
| Storage | Support NVR storage, and TF card storage, Max 512G； |
| Ethernet | RJ-45 10M/100M self-adaptive |
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，GB28181，DDNS |
| Access protocol | ONVIF/Private protocol/CGI |
| Client | NVR，Computer：EasyVMS |
| Code | G.711U、G.711A |
| Input | Support（recommend-36DB MIC） |
| Output | Support，built-in（recommend-8Ω2W） |
| Size | 38*38mm double board |
| working environment | -30℃～+60℃ |
| Power | DC 12V |

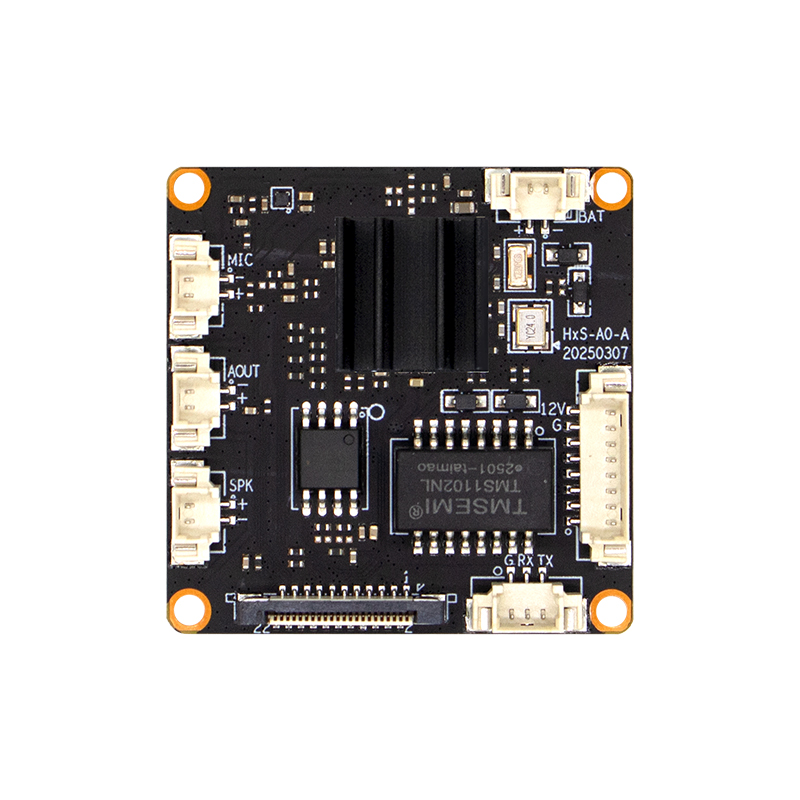

| PCB marking | H4SVX-A0-B, HxS-A0-A, IPC-PWG |

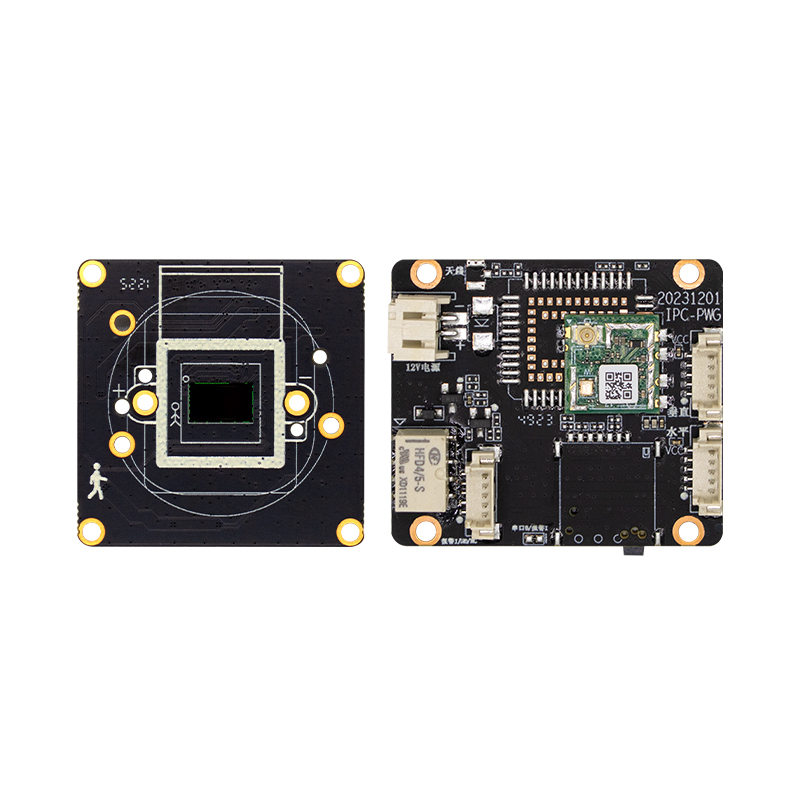

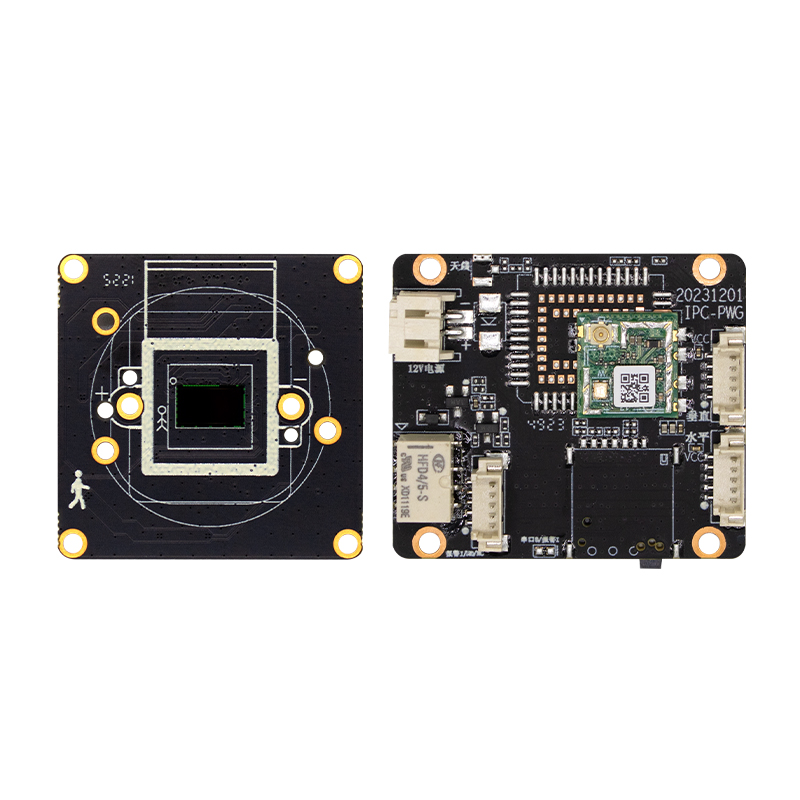

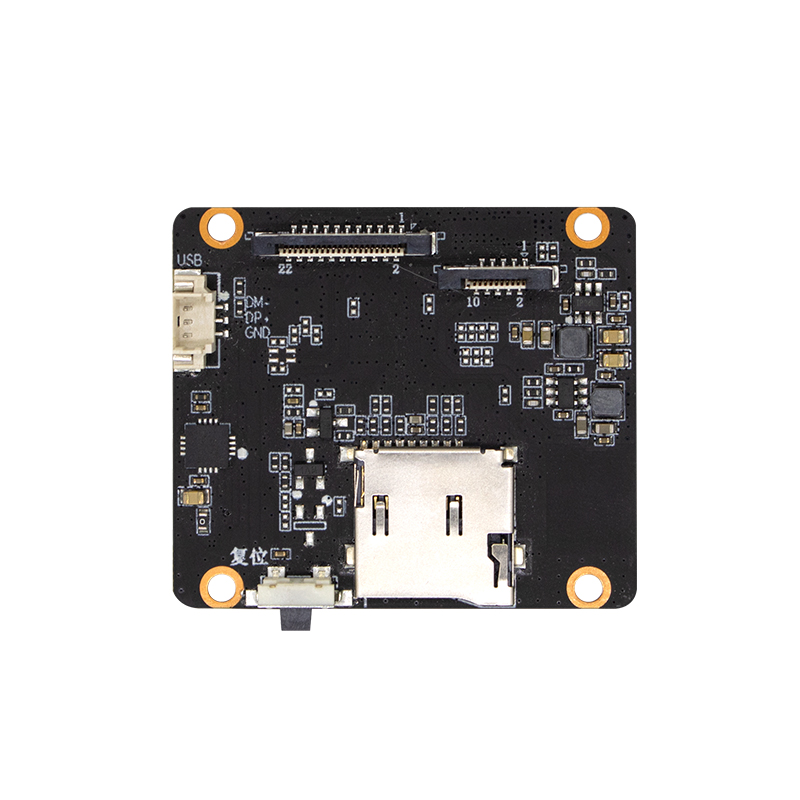

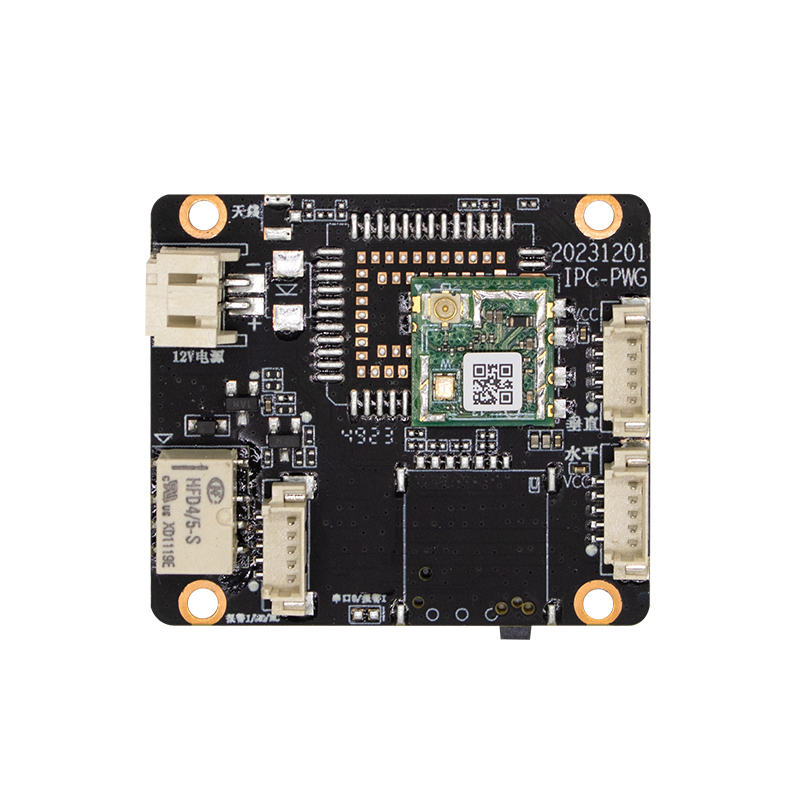

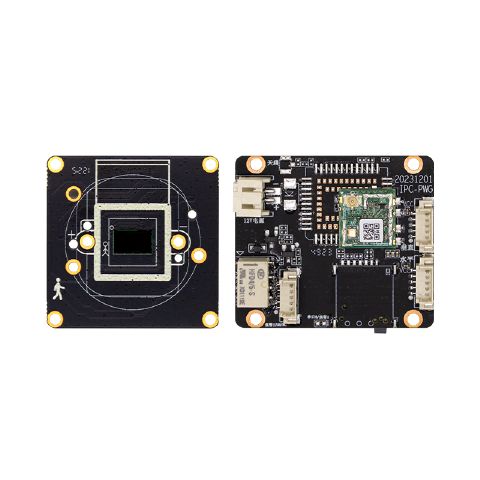

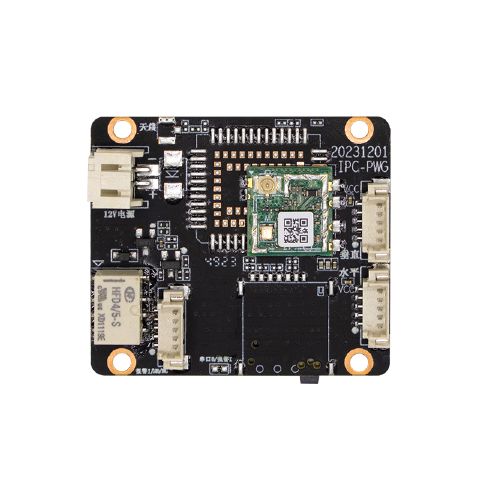

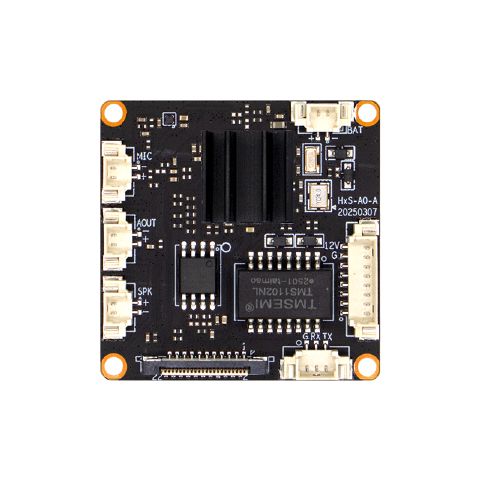

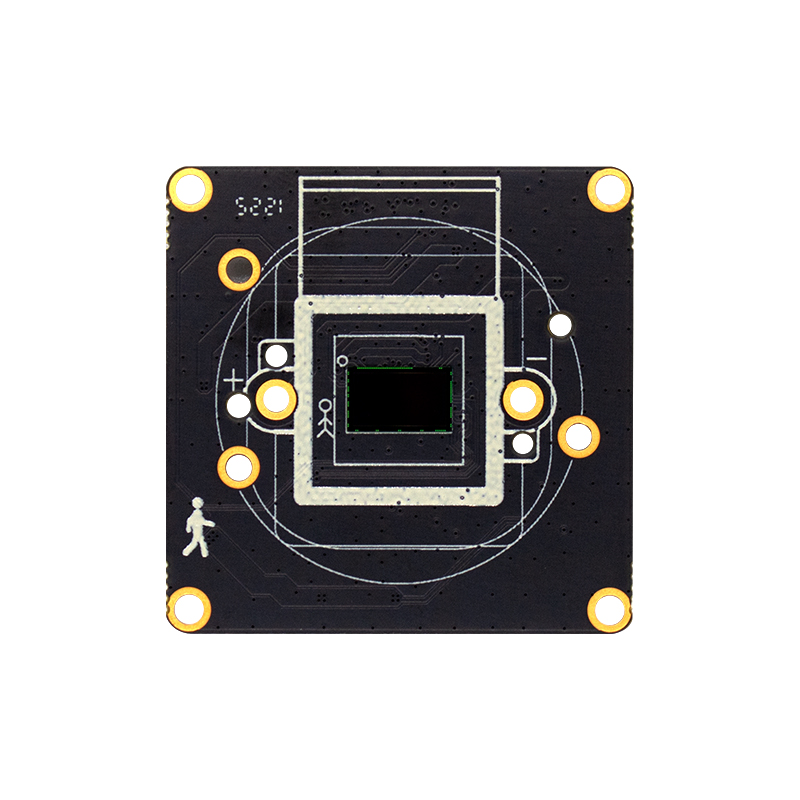

Photos
Files

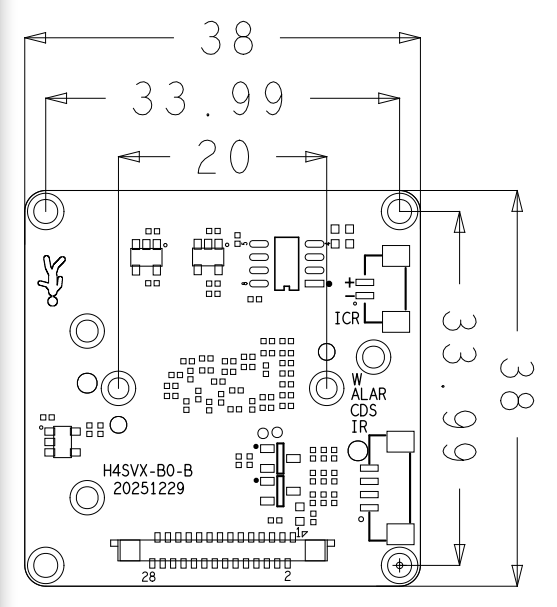

- H4SVX-W-sheet.png (document, 67 KB)
