H5SVP
5MP Dual-band Network High-Definition Camera Module · IP Camera Module
- Maker:
- Ruision
- Listed:
- 2026
Ruision
5MP Dual-band Network High-Definition Camera Module
1/2.8”Sony sensor；5MPvideo, dual light；Built-in 1236/4578 power supply automatic recognition；Human Shape & Vehicle Shape Detection；Intelligent PWM light technology, see face clearly
Features
- 1/2.8”Sony sensor，；
- 5MP (2880*1624)/30fps resolution，support dual stream output；
- Intelligent PWM light technology, see face clearly at night
- ISP built-in 1T computility NPU, device built-in AI algorithm large mode
- Support POE (1236/4578) power supply, automatic recognition of electrification
- Built-in amplifier
- Built-in reset function
- WEB 2.0 page, support Edge, Chrome, Safari, Firefox browsers, etc.
- Support human&vehicle shape detection, extended to E-fence, cross border, out of duty, people counting application scenarios, etc.
- Support sound&light linkage alarm, alarm sound supports customized and text to speech
- Support alarm_out, enable linkage red&blue light for alarm
- Support TF card recording (optional), Max. 512G. Support intelligent record and common record, if record full, will be cover automatically.
- New APP, support alarm push. New app support share max. 16 persons to others.
- Support ONVIF protocol, enable to work with the 3rd party NVR
- Support image mask occlusion, protect privacy area
- Support OSD overlay function and network synchronization
- Support audio_in/out, two-way-talk, audio & video synchronization
| Day & Night | Black light full color image&video，Smart PWM technology (no face overexposure)；suggested Lens：YT10196, YT10151 |
|---|---|
| Image Adjustment | AWB, DWDR, BLC, Brightness, Contrast Ratio, Chroma adjustable, etc |
| Privacy Mask | Support |
| Mirror | Support |
| OSD | Support OSD setting and drag OSD |
| Electronic Fence | Support human/vehicle shape detection, devices will trigger alarm once enter alert area |
| Cross Border | Detect human shape，Support A->B、B->A、A<->B direction detection |
| Out-of Duty Area | Support to set detect area, people out - alarm, people back - stop alarm |
| People Counting | Detect people in & out and statistic numbers, overlay OSD to screen, can check daily data |
| Voice Alarm | Support voice broadcast and voice content customized |
| IO Alarm | Support；enable linkage red&blue lights alarm |
| NVR Linkage | Support NVR big screen, local voice, AI recording, notification push, etc. |
| Code | H.264，H.265，H.265+ |
| Resolution | Mainstream：5MP(2880*1624)/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080); Sub-stream：448P(800*448)/360P(640*360)/ CIF(352*288) |
| Ethernet | RJ-45 10M/100M automatically |
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，IP Filter，GB28181,P6S |
| Client | NVR / Computer：EasyVMS |
| Code | G.711U、G.711A |
| Audio_In | Support（recommend-36DB MIC） |
| Audio_Out | Support，built-in（recommend-8Ω2W） |

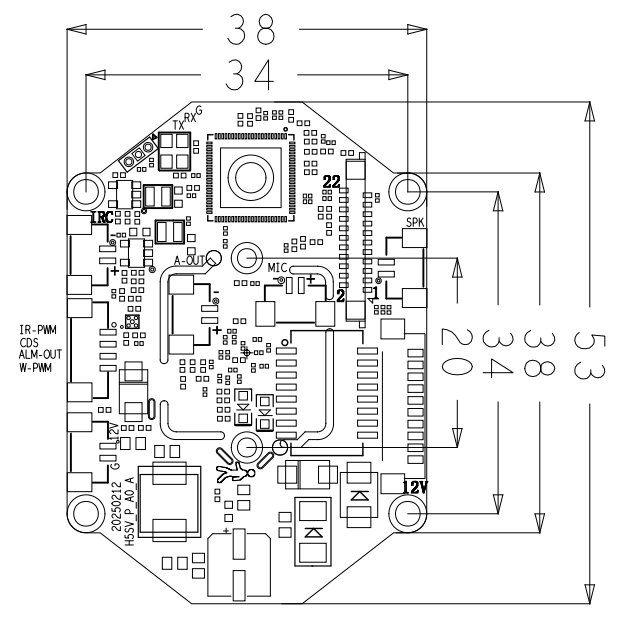

| Size | 38*53 ，38*38 |
| Working Temperature | -30℃～+60℃ |
| Power | DC 12V/POE |
| Size | 38*53 尺寸，38*38 孔位 |
| PCB marking | H5P A0 A |

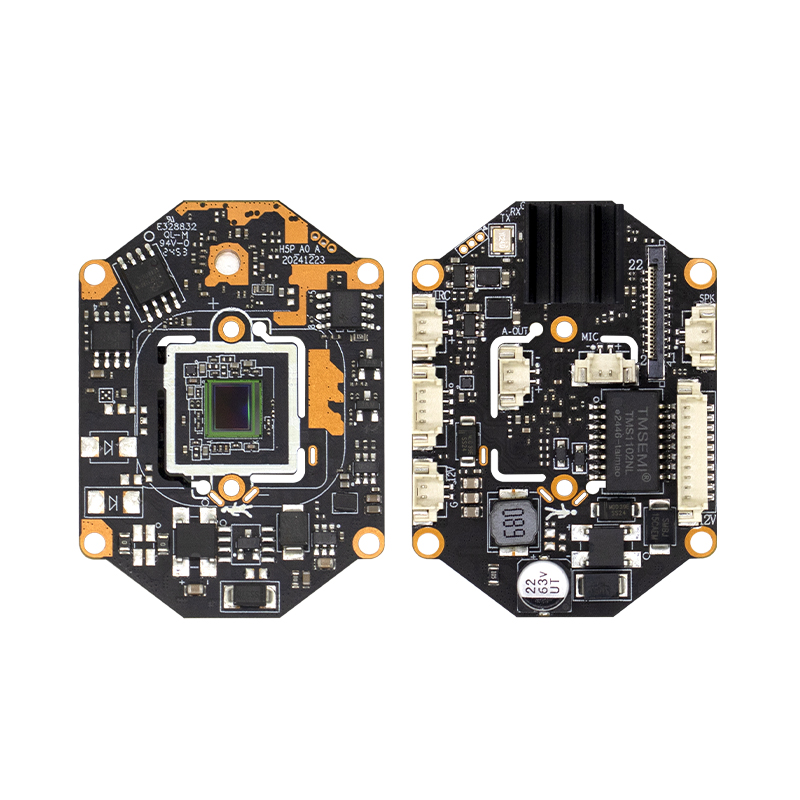

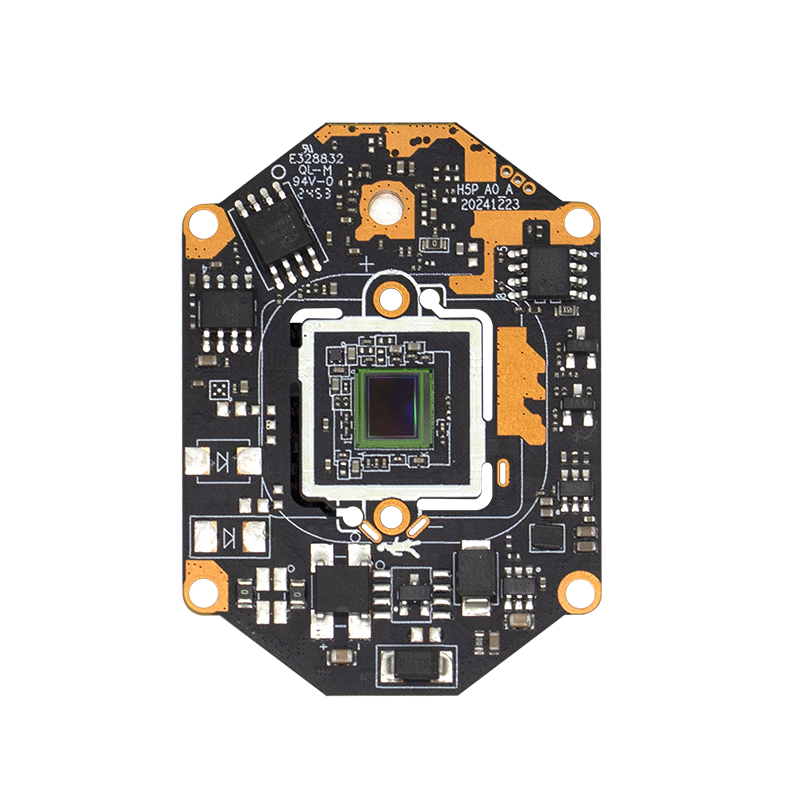

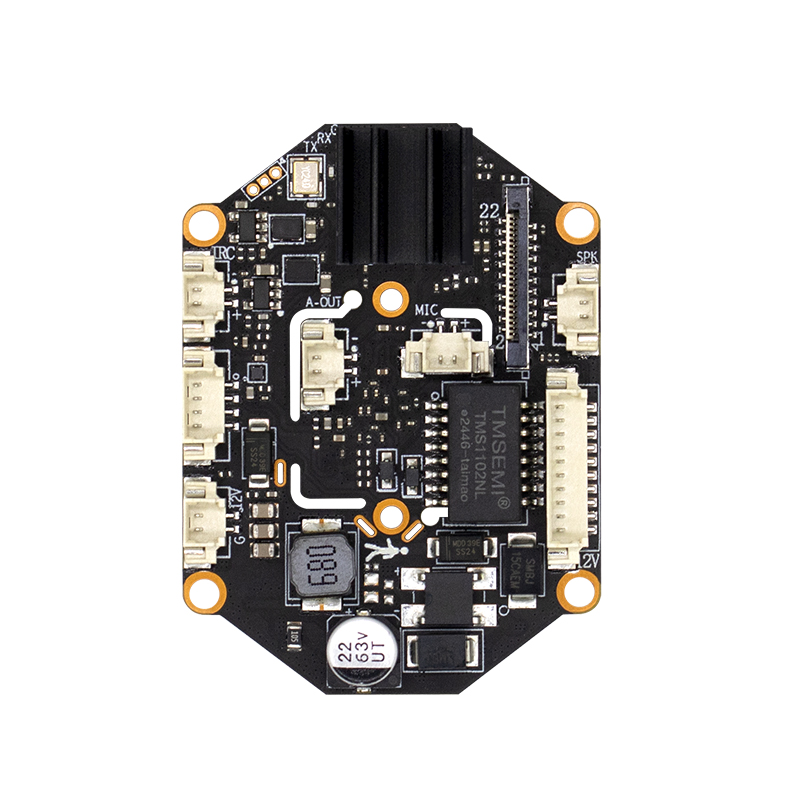

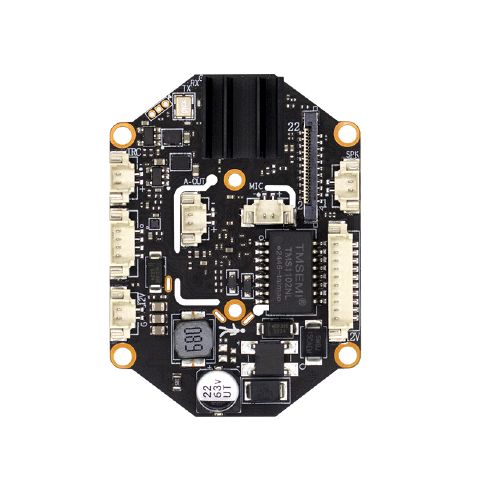

Photos
