H82-W
8MP Dual-band Network High-Definition WIFI Camera Module · IP Camera Module
- Maker:
- Ruision
- Listed:
- 2026
Ruision
8MP Dual-band Network High-Definition WIFI Camera Module
WI-FI 6 transmission + Bluetooth APP pairing;2.4G+5G dual-band WIFI;Dual 4MP HD images;Dual-channel linkage AI detection;Human/vehicle detection & auto human tracking;Support 512G TF card storage
Features
- Built-in 1T computing power NPU and embedded AI large algorithm model
- Wired & wireless dual connectivity; Wi-Fi 6 (2.4G+5G dual-band) for stable transmission
- Built-in Wi-Fi hotspot for offline monitoring; Bluetooth APP pairing for easy Wi-Fi connection
- Intelligent light sensing, clear face vision at night
- OSD text overlay with multi-line display and global language input support
- Built-in WEB 2.0 page, compatible with Chrome, Edge, Safari, Firefox and other modern browsers
- Support 512G TF card; intelligent/regular recording with auto loop overwrite
- 8MP total HD resolution (4MP fixed lens + 4MP PTZ lens), dual main/sub stream output
- New intuitive APP UI, supports alarm push notifications
- Device sharing function, support up to 16 shared users
- Support human & vehicle shape detection, extended to E-fence, cross border, out of duty, people counting application scenarios, etc.
- Human auto-tracking with auto return after tracking; dual-lens linkage enabled
- Support sound & light linkage alarm, alarm sound supports customized and text to speech
- Support alarm output, enable linkage to red & blue light alarm
- Support RTSP, ONVIF protocol
- Support image mask occlusion, protect privacy area
- Support audio in/out, two-way-talk, audio & video synchronization
| Day & Night | Full color、Smart dual light、IR，Smart PWM technology (no face overexposure) |
|---|---|
| Image Adjustment | AWB, D-WDR & BLC supported; adjustable brightness, contrast & saturation. |
| Privacy Mask | Support |
| Mirror | Support |
| OSD | Support OSD setting and drag OSD |
| Electronic Fence | Support human/vehicle shape detection, devices will trigger alarm once enter alert area |
| Cross Border | Detect human shape，Support A->B、B->A、A<->B direction detection |
| Human tracking | Supports automatic human tracking once human targets detected. |
| Voice alarm | Linked custom-recordable voice announcement. |
| IO alarm | Supports red-blue light alarm linkage. |
| NVR linkage | Links to NVR for full-screen view, local audio, AI recording and alert push |
| Code | H.264，H.265，H.265+，H.265 Ultra |
| Resolution | Fixed camera：mainstream：4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080)/1MP(1280*720)PTZ：mainstream：4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080)/1MP(1280*720); Sub-stream：448P(800*448)/360P(640*360)/ CIF(352*288) |
| Storage | Support up to 512G TF card & NVR storage ； |
| Ethernet | RJ-45 10M/100M self-adaptive |
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，IP Filter |
| WIFI | Support WI-FI 6，2.4G+5G band，802.11 b/g/n |
| BLE | Bluetooth pairing |
| Access Protocols | ONVIF/Private/CGI protocols |
| Client Software | APP: HiEasy; PC: EasyVMS; NVR centralized management |
| Audio | G.711U、G711A |
| Audio In | Support (-36dB MIC recommended) |
| Audio Out | Support, Built-in amp, for 8Ω 2W speaker |

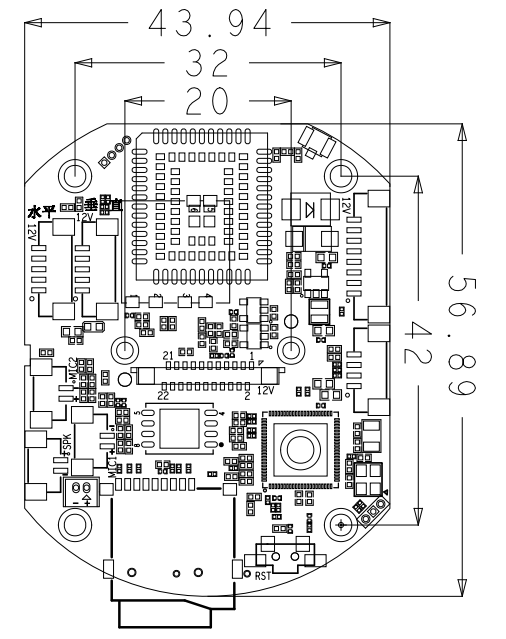

| Size | PTZ：58*44, Minion mounting hole ；Fixed lens：38*38 size |
| Working Temperature | -30℃～+60℃ |
| Power | DC 12V |

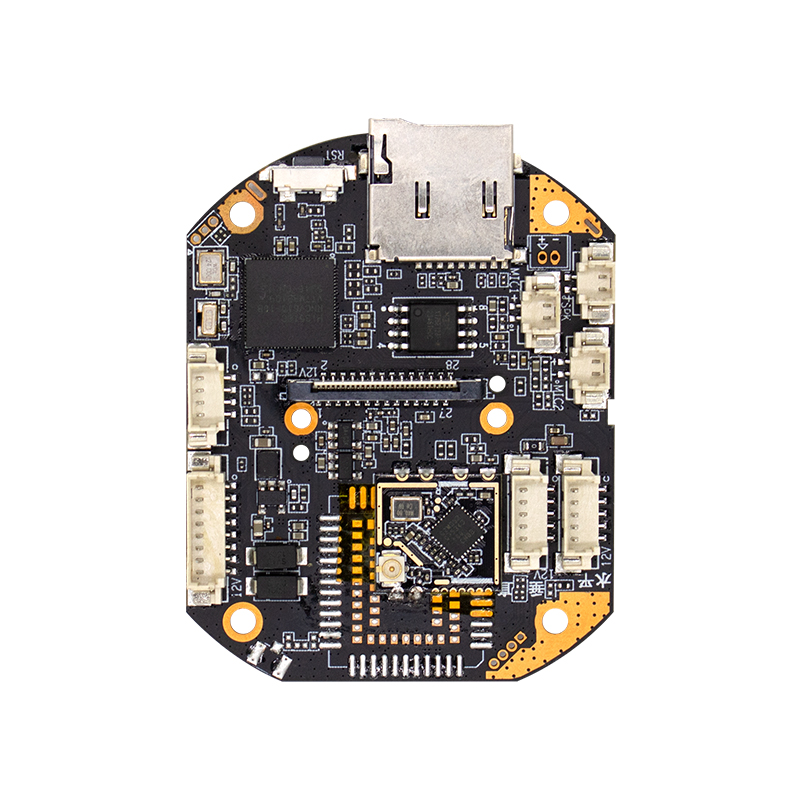

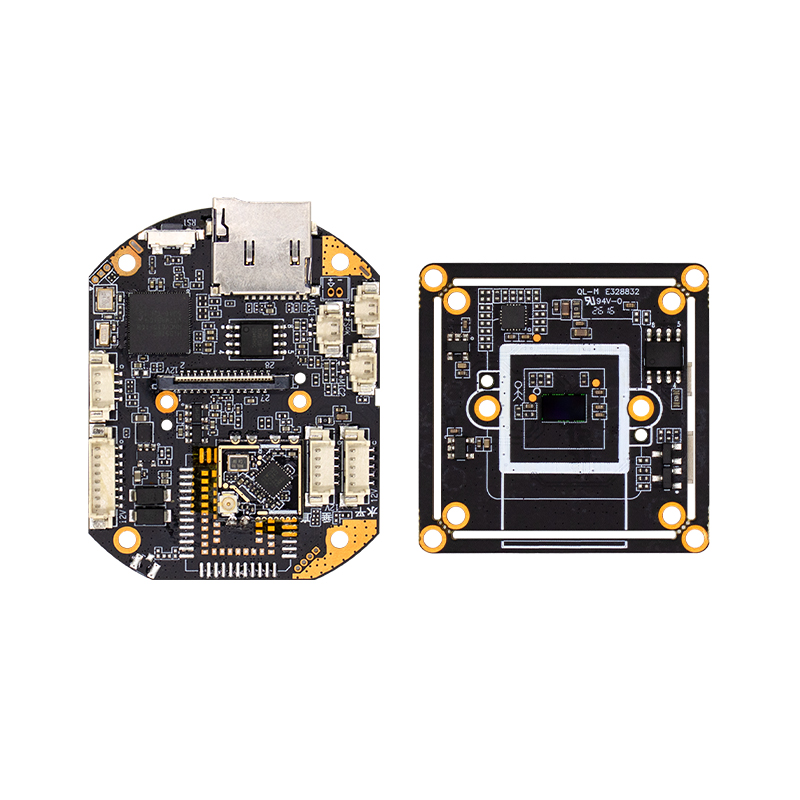

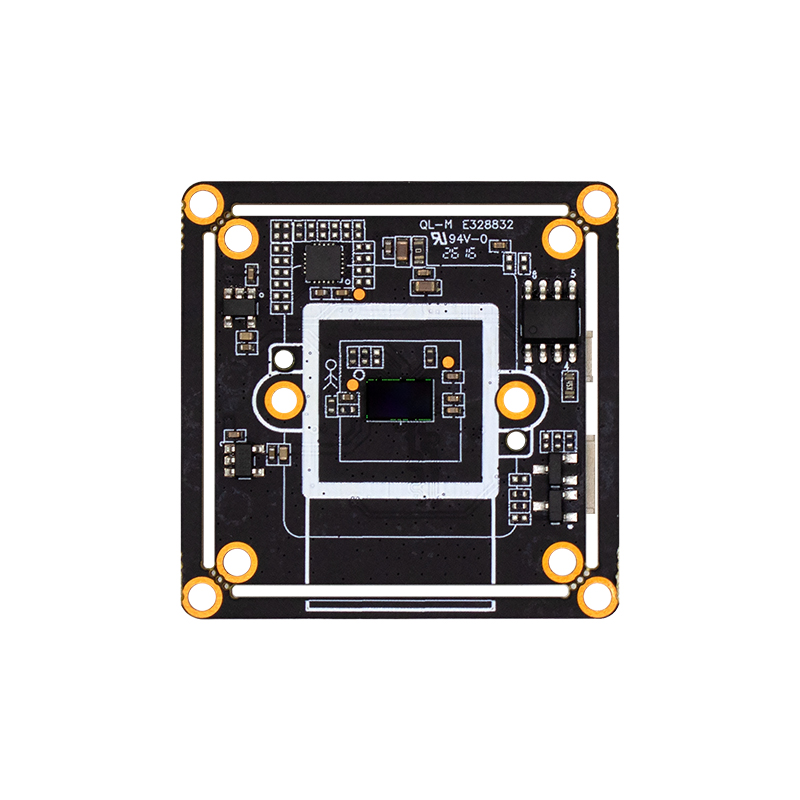

Photos
Files
- H82-W-sheet.png (document, 96 KB)
- H82-W-WIFI-Intelligent-camera-datasheet.pdf (document, 1.6 MB)
