T5AI-W
5MP Intelligent AI Network High-Definition WIFI Camera Module · IP Camera Module
- Maker:
- Ruision
- Listed:
- 2026
Ruision
5MP Intelligent AI Network High-Definition WIFI Camera Module
Support face capture and face recognition;Support China LPR & global license plate capture;Human, Vehicle, Non-motorized vehicle detection;Multiple AI application;Support 512G TF card & BAT battery function;Can expend to alarm_in/out, Pan&Tilt, Wi Fi, 4G function
HTTP/HTTPS, MQTT, FTP, GB28181, ONVIF protocol
Features
- 1/2.8 Sony high sensitivity sensor
- Support H.265+、 H.265、 H.264 coding； dual stream simultaneous output；
- Main-stream： 5MP(2592*1944)/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080)
- Sub-stream：448P(800*448)/360P(640*360 )/ C IF(352*288)；
- Support human, vehicle, non-motorized vehicle shape detection (need to activate license plate code) ----AI application： electric fence, cross border, people counting & statistics, traffics statistics；
- Support intelligent face recognition algorithm (Activated required) and License plate structured algorithm (Activated required)
- Face Recognition Structured Algorithm：
- Each frame support 6 people face detection and tracking
- Supports fast capture and quality capture, customized mode, face photo quality adjustable. Max Capture 6 people face simultaneously, minimum facial pixel size of 20 x 20
- Support face comparison function, white list, black list, visitor, stranger alarm
- Support people eigenvalue output： gender、age、with or without hat, mask, glass
- Support transfer face photo to device and configure alarm rules by EasyVMS and APP
- License Plate Recognition Structured Algorithm
- Support global license plate capture(need to close license plate number identification)
- Can recognize vehicle color, license plate number and overlay its information to video screen
- Working mode auto switch: surveillance surrounding environment if no vehicle, will adjust lighting to
- recognize license plate if detect vehicle
- Support auto capture and manual capture mode, suitable for multiple application scenarios ---Support license plate deployment and distribute to device by EasyVMS
- Support license plate follow, strange license plate, not green license plate, yellow license plate, no license plate deployment
- Suggest 6mm lens for face or LPR version completed camera；
- Support alarm_in/out, two-way-talk, on-board amplifier, can connect speaker directly
- Support alarm_in and extended to switch quantity alarm_out
- Support ONVIF, P2P, GB/T-28181、MQTT、 HTTP/HTTPS, FTP, CGI, DNS protocols
- Support OSD overlay and channel name text input by global languages
- Support extend to TF card storage, max 512GB
- Wi Fi (Wi-Fi 6 /2.4g+ Bluetooth function) and 4G version available
- Support screen occlusion,protect privacy area, NTP function
- Support APP (iOS/Android) and computer software remote control
| White Balance | Auto |
|---|---|
| Noise Reduction | 3D-NR |
| WDR | WDR (120db) |
| Privacy Mask | Support |
| OSD | Support global OSD overlay, channel name support global languages input |
| Smart Detection | Can detect human/vehicle shape and push alarm. can support non-motorized vehicle detection（ need to activate license plate code）; Inclusive AI: electric fence, cross border, people counting & statistics, traffics statistics |
| Face Capture | Supports facial duplication, fast capture and quality capture, customized mode optional； Fast Capture: quick push facial images that appearQuality Capture: Push the best facial image in the period of facial appearanceFacial quality adjustable , supporting 6 person face detection and tracking per frame； Capture 6 people simultaneously, minimum facial pixel size of 20 x 20；Support people eigenvalue output：gender、age、with or without hat, mask, glass,etc. |
| Face Comparison | Support white list, black list, visitor, stranger alarm setting, etcSupport upload face database to device by EasyVMS、APP ，support standalone version； Support configure alarm rule by EasyVMS、APP ，support receive alarm event message； |
| Face Database | Max support 5000 face photo（Work with EasyVMS software & Hi Easy APP） |
| Detection Distance | 6mm lens：3-5 meters； |
| Functions Linkage | Support voice broadcast, alarm output, TF card photo capture、TF card recording、FTP upload Support MQTT, HTTP protocol report； |
| Install Requirement | Ensure camera can capture the positive face of all incoming or outgoing people Need stable lighting environment, too bright or too dark will cause error |
| Recognition Mode | Support auto mode and manual modeCan balance monitoring & license plate recognition, surveillance surrounding environment if no vehicle, will shrink lighting if detect vehicleSupport global license plate photo capture, Chinese license plate recognitionSupport license plate deployment and distribute to device by EasyVMSSupport license plate follow, strange license plate, not green license plate, yellow license plate, no license plate deployment |
| License PlateDatabase | Max support 5000 license plate photo（Work with EasyVMS software） |
| Output Content | License plate color, license plate number, support OSD overlay license plate number and color to video part |
| Vehicle Speed | Auto mode：60Km/h or below ，Manual mode: speed adjustable |
| Detection Distance | 6mm lens：4-13 meters； |
| Functions Linkage | Support voice broadcast, alarm output, TF card recording, FTP uploadSupport MQTT, HTTP protocol reportSupport alarm message pushWork with AI NVR to realize license plate database, strange license plate record, white/black list alarm linkage, query recording by license plate. (N310B、N316B、N336A) |
| Install Requirement | Need stable lighting environment, need additional LED lighting for vehicle body if environment not match requirement. The camera is located in the forward direction of the vehicle and can capture photos of the front license plate |
| Compression | H.264 ，H.265、H.265+ |
| Resolution | Main：5MP(2592*1944)，4MP(2560*1440) ，3MP(2304*1296) ，2MP(1920*1080); Sub：448P(800*448)/360P(640*360 )/ CIF(352*288) |
| Frame rate | 5MP / 30fps |
| Ethernet | RJ-45 10M/100M self-adaptive |
| Network Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，FTP，GB/T-28181， MQTT、HTTP/HTTPS |
| Access Protocol | ONVIF /Private/CGI/P2P |
| Max Connection | 3x mainstream ，3x sub-stream |
| Clients | APP: Hi Easy(iOS & Android)、Computer: EasyVMS |
| Code | G.711U、G711A |
| Audio_in | Support |
| Audio_out | Support 1CH active output, 1CH amplifier output |
| TF Card | With expanded board support 512GB storage |
| Alarm_in | With expanded board support alarm input |
| Alarm_out | Support 1CH alarm output |
| Size | 38x38mm |
| WorkingTemperature | -30℃ ~ +60℃ |
| Power | DC12V |

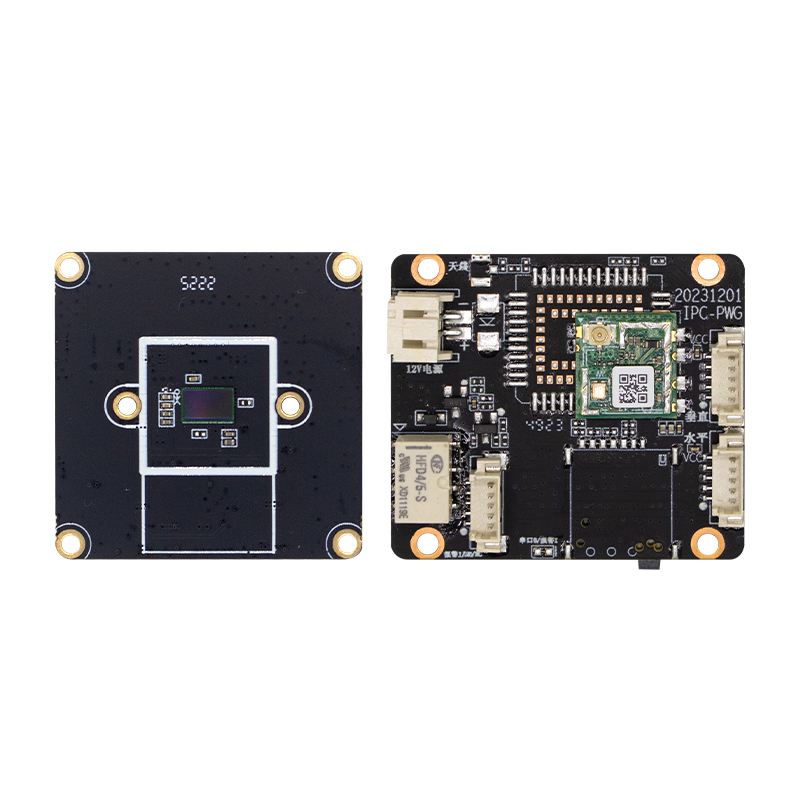

| Size | 38*38 double board |
| PCB marking | IPC-PWG |

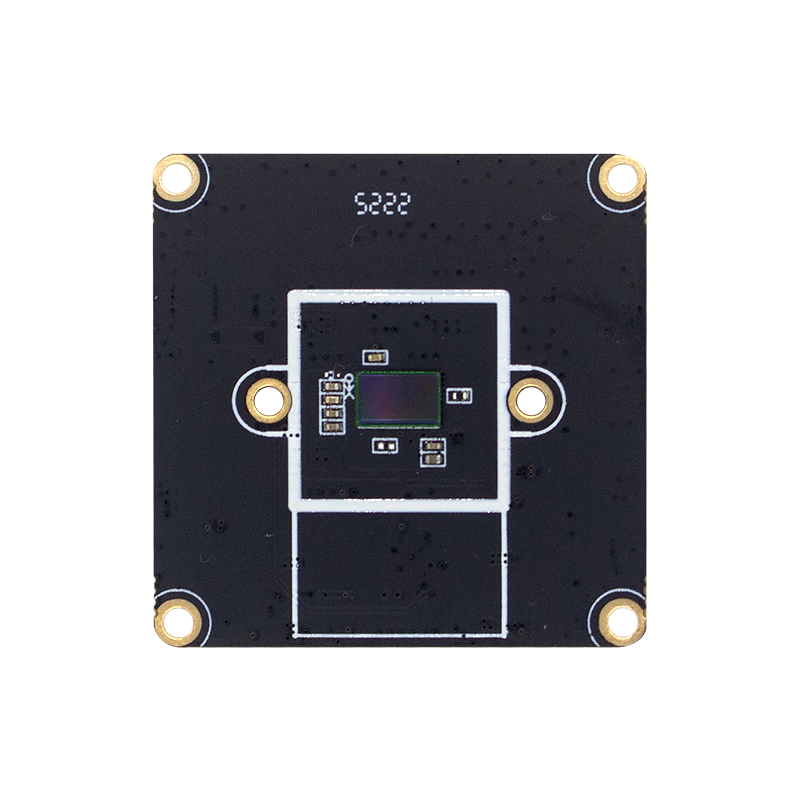

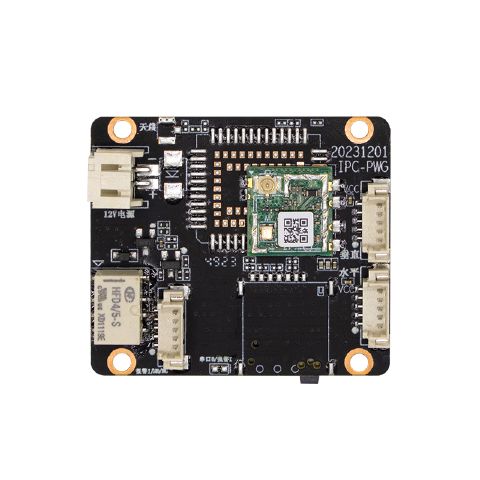

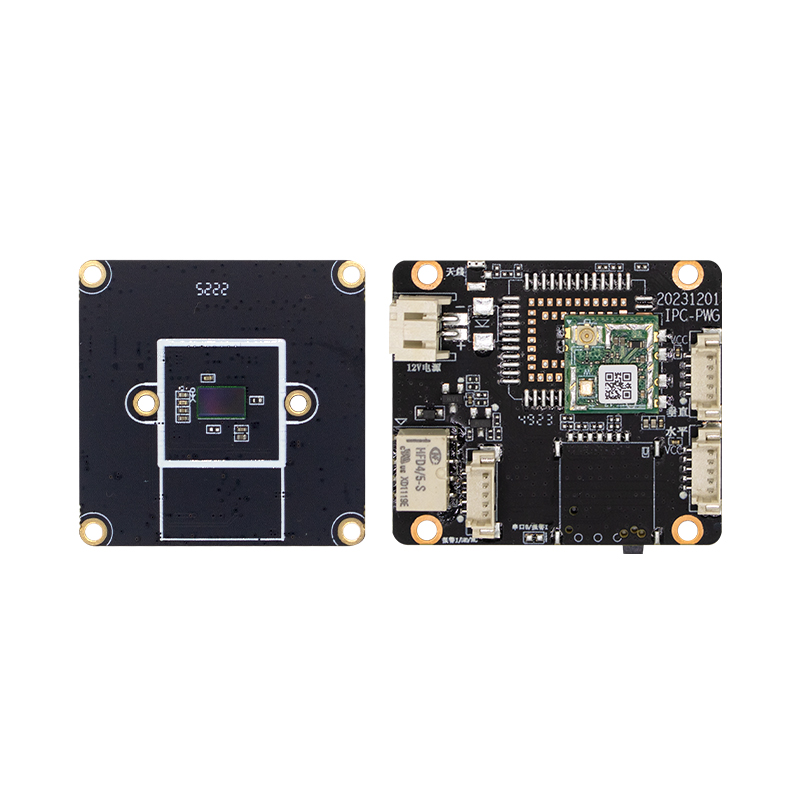

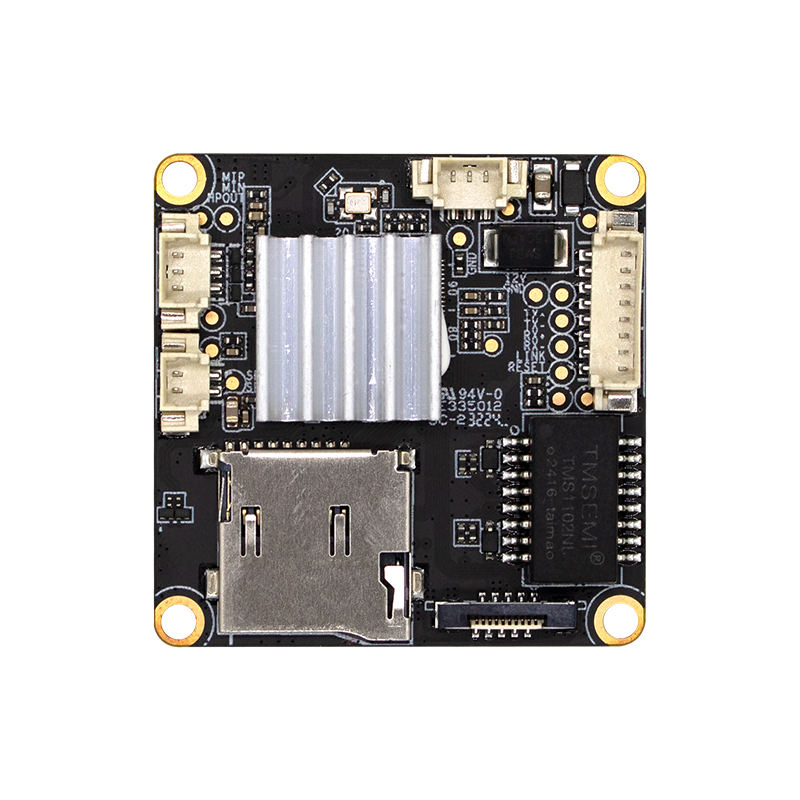

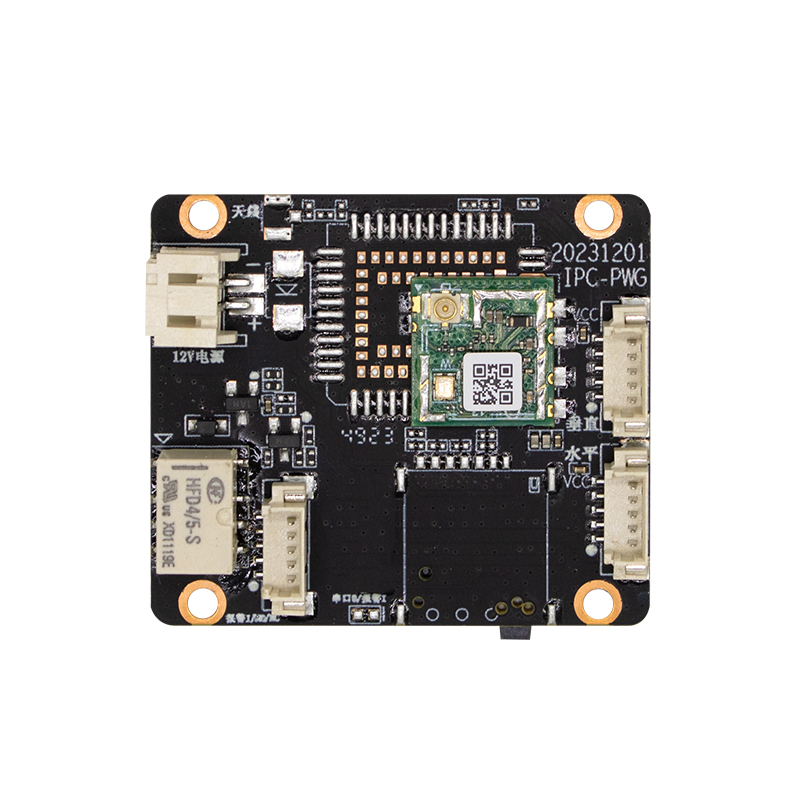

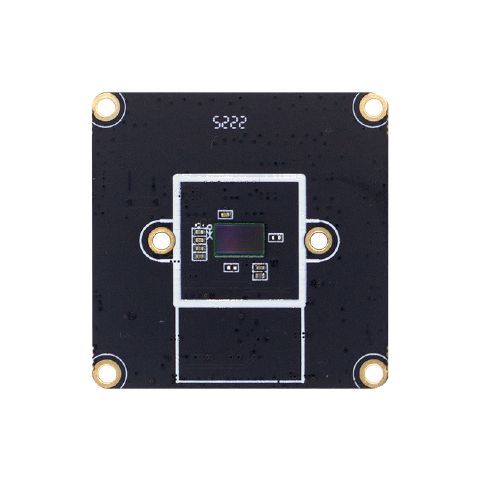

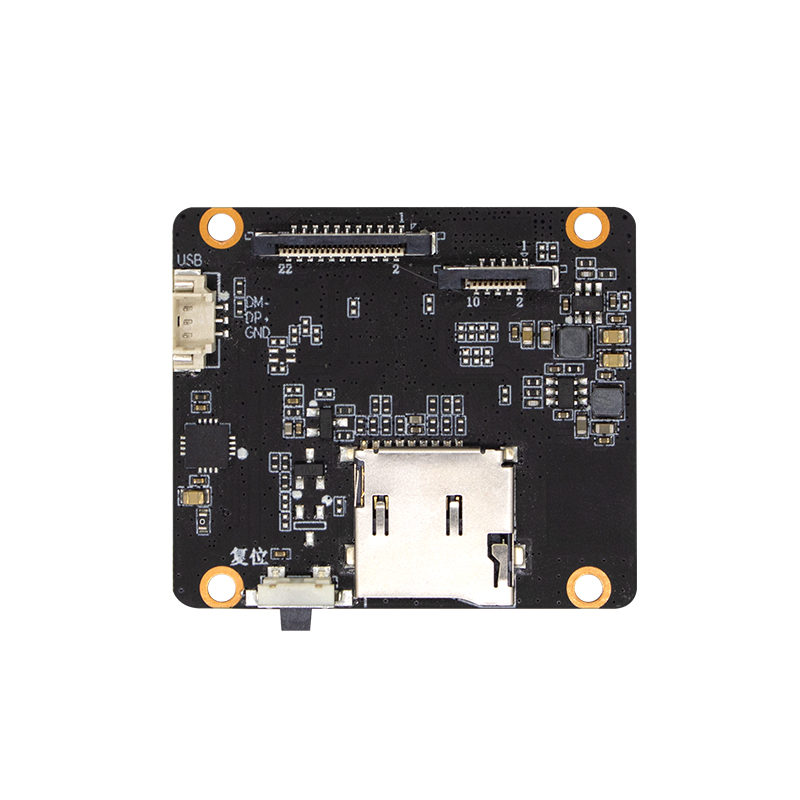

Photos
Files

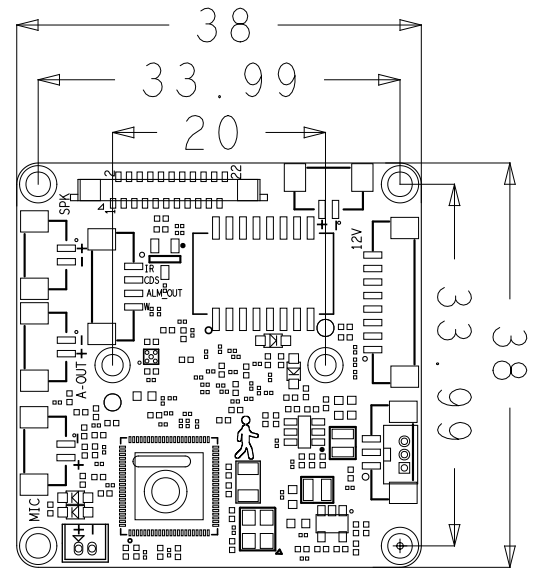

- T5AI-W-sheet.png (document, 78 KB)
- T5AI-W-WIFI-Intelligent-camera-module-specification.pdf (document, 582 KB)
