ADVR8004A-NGS-V4
Coaxial Video Recorder
- Maker:
- Xiongmai
- Device IDs:
- C638024T
- Listed:
- 2023
JFTech
1 SATA H.265 4ch Analog HD DVR A Series
Support 4ch 4K-N unreal-time encoding;
Support XVI,AHD, TVI,CVI, CVBS, IP video input;
support VGA maximum 1080P output, HDMI up to 4K output;
Mini 1U Case, 1SATA(Up to 14TB);
1*10/100Mbps auto-sensing Ethernet port, RJ45 port；
Automatic networking support, a key to add equipment;
Support the Onvif protocol;
Support GB28181 (Optional);
Cloud services, P2P, alarm information push to phone;
Support remote access, support ARSP;
Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,
3G, WIFI, IP search, Alarm center, etc ;
Mobile phone remote monitoring (iOS, Android);
Multi browser access (IE, Chrome, Firefox, Safari);
Support for more than twenty languages;
Perfect protection circuit,unique triple watchdog function
Support WEB, CMS, VMS, MYEYE Platform;
Support coaxial control
Support coaxial audio
Support intelligent analysis: Human detection, face detection, Vehicle shape detection;
| processor | NT98331 |
|---|---|
| Codec | H.265+/H.265/H.264 |
| Preview | 4ch4K-N@12fps(6 in 1)/4ch4M@15fps(6 in 1)/4ch3M@18fps(6 in 1)/4ch1080P(6 in 1) default：4K-N |
| Encode | 4ch4K-N@12fps(6 in 1)/ 4ch4M@15fps(6 in 1)/ 4ch3M@18fps(6 in 1)/4ch1080P (6 in 1) default：4K-N |
| Decode | 1ch4K-N12fps(6 in 1)/ 1ch4M@15fps(6 in 1)/ 1ch3M@18fps(6 in 1)/1ch1080P default：4K-N |
| Multi-mode | Analog: 4ch 4K-N; hybrid：4*4K-N（analog）+4*5M（network）; IP:16ch 1080P/16ch 5M |
| Playback | 4/2/1ch |
| Coaxial audio | support |
| Compression | G.711a |
| Intercom | Support |
| Record mode | Manual>Alarm>Motion detection>Timing |
| Inquire mode | Inquire by Time/Calendar/Event/Channel |
| Storage mode | HDD Storage, Network Storage |
| Backup | Network, USB, SATA |
| Video input | 4*BNC(Support Coaxitron) |
| HDMI output | 1*HDMI (MAX:4K) |
| VGA output | 1*VGA (MAX:1080P) |
| Audio I/O | 1*in/1*out |
| Alarm I/O | 0/0 |
| Ethernet port | 1*10/100Mbps Ethernet port, RJ45 port |
| PTZ control | Support for multiple PTZ protocol |
| USB Port | 2*USB2.0 ports |
| HDD | 1*SATA interface (Up to14TB) |
| Temperature | 0 ℃ - + 55 ℃ |
| Humidity | 10% -90% RH |
| Power supply | 12V/2A |
| Consumption | <10W(Without HDD) |
| Weight | Around1KG |
| Dimension | 255mm(L)* 215mm(W)* 44mm(H) |

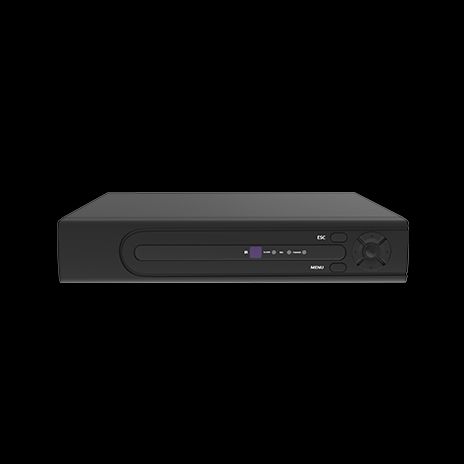

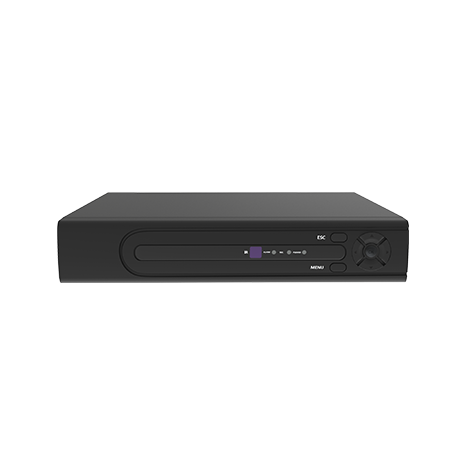

Photos
Files
- ADVR8004A-NGS-V4.pdf (document, 173 KB)
