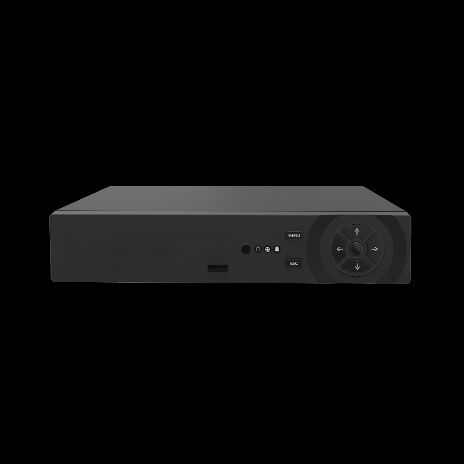

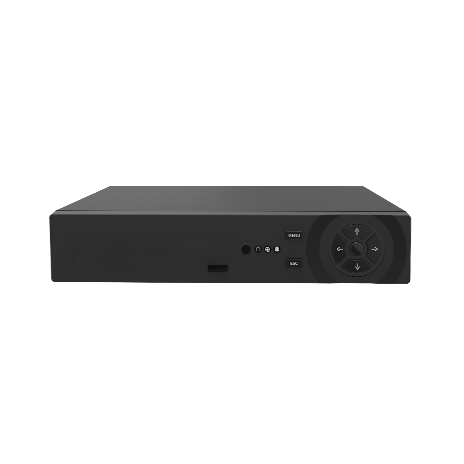

ADVR8016B-NLME-V4
Coaxial Video Recorder
- Maker:
- Xiongmai
- Device IDs:
- C638024S
- Listed:
- 2023
JFTech
2 SATA H.265 16ch Analog HD DVR B Series
Support 16ch 5M-N unreal-time encoding
Support XVI,AHD, TVI,CVI, CVBS, IP video input
Support VGA maximum 1080P output, HDMI up to 1080P output
1.5U Case, 2 SATA(Up to 14TB)
1*10/100Mbps auto-sensing Ethernet port, RJ45 port
Automatic networking support, a key to add equipment
Support the Onvif protocol
Support GB28181 (Optional)
Cloud services, P2P, alarm information push to phone
Support remote access, support ARSP
Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL
3G, WIFI, IP search, Alarm center, etc
Mobile phone remote monitoring (iOS, Android)
Multi browser access (IE, Chrome, Firefox, Safari)
Support for more than twenty languages
Perfect protection circuit,unique triple watchdog function
Support WEB, CMS, VMS, MYEYE Platform
Support coaxial control
Support coaxial audio
Support intelligent analysis: Human detection, face detection, Vehicle shape detection;
| processor | NT98332 |
|---|---|
| Codec | H.265+/H.265/H.264 |
| Preview | 16ch5M-N@12fps(6 in 1)/16ch 4M-N@15fps(6 in 1)/16ch1080P@15fps(6 in 1)，default 5M-N |
| Encode | 16ch5M-N@6fps(6 in 1)/16ch 4M-N@8fps(6 in 1)/16ch1080P@8fps(6 in 1)，default 5M-N |
| Decode | 16ch5M-N@6fps(6 in 1)/16ch 4M-N@8fps(6 in 1)/16ch1080P@8fps(6 in 1)，default 5M-N |
| Multi-mode | Analog:16ch 5M-N; hybrid：16*5M-N（analog）+4*1080P（network）; IP: 16ch 1080P/4ch 5M |
| Playback | 16ch |
| Compression | G.711a |
| coaxial audio | Support |
| Intercom | Support |
| Record mode | Manual>Alarm>Motion detection>Timing |
| Inquire mode | Inquire by Time/Calendar/Event/Channel |
| Storage mode | HDD Storage, Network Storage |
| Backup | Network, USB, SATA |
| Video input | 16*BNC（Support Coaxitron） |
| HDMI output | 1*HDMI (MAX:4K) |
| VGA output | 1*VGA (MAX:1080P) |
| Audio I/O | 6*in/1*out |
| Alarm I/O | 4*in/1*out |
| Ethernet port | 1*10/100Mbps Ethernet port, RJ45 port |
| PTZ control | 1*RS485, Support for multiple PTZ protocol |
| USB Port | 2*USB2.0 ports |
| HDD | 2*SATA interface (Up to 14TB) |
| Temperature | 0℃-＋55℃ |
| Humidity | 10% -90% RH |
| Power supply | 12V/4A |
| Consumption | <10W（Without HDD） |
| Weight | Around 1.8KG |
| Dimension | 310mm(L)* 298mm(W)* 60mm(H) |
Photos
Files
- ADVR8016B-NLME-V4.pdf (document, 188 KB)
