ADVR8016DA-NLME-V4
Coaxial Video Recorder
- Maker:
- Xiongmai
- Device IDs:
- C638024S
- Listed:
- 2023
JFTech
2 SATA H.265 16ch Analog HD DVR DA Series
Support 16ch 5M-N unreal-time encoding;
Support XVI,AHD, TVI,CVI, CVBS, IP video input;
Support VGA maximum 1080P output, HDMI up to 4K output
1U Case, 2 SATA(Up to 14TB);
1*10/100Mbps auto-sensing Ethernet port, RJ45 port；
Automatic networking support, a key to add equipment;
Support the Onvif protocol;
Support GB28181 (Optional);
Cloud services, P2P, alarm information push to phone;
Support remote access, support ARSP;
Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,
WIFI, IP search, Alarm center, etc ;
Mobile phone remote monitoring (iOS, Android);
Multi browser access (IE, Chrome, Firefox, Safari);
Support for more than twenty languages;
Perfect protection circuit,unique triple watchdog function
Support WEB, CMS, VMS, MYEYE Platform;
Support coaxial control
Support coaxial audio
Support human detection, face detection and other intelligence
| processor | NT98332 |
|---|---|
| Codec | H.265+/H.265/H.264 |
| Preview | 16ch5M-N@12fps(6 in 1)/16ch4M-N@15fps(6 in 1)/16ch1080P@15fps(6 in 1)，default 5M-N |
| Encode | 16ch5M-N@6fps(6 in 1)/16ch4M-N@8fps(6 in 1)/16ch1080P@8fps(6 in 1)，default 5M-N |
| Decode | 16ch5M-N@6fps(6 in 1)/16ch4M-N@8fps(6 in 1)/16ch1080P@8fps(6 in 1)，default 5M-N |
| Multi-mode | Analog:16ch 5M-N; hybrid：16*5M-N（analog）+4*1080P（network）; IP: 16ch 1080P/4ch 5M |
| Playback | 16ch |
| Compression | G.711a |
| Coaxial audio | Support |
| Intercom | Support |
| Record mode | Manual>Alarm>Motion detection>Timing |
| Inquire mode | Inquire by Time/Calendar/Event/Channel |
| Storage mode | HDD Storage, Network Storage |
| Backup | Network, USB, SATA |
| Video input | 16*BNC（Support Coaxitron） |
| HDMI output | 1*HDMI (MAX:4K) |
| VGA output | 1*VGA (MAX:1080P) |
| Audio I/O | 6*in/1*out |
| Alarm I/O | 4*in/1*out |
| Ethernet port | 1*10/100Mbps Ethernet port, RJ45 port |
| PTZ control | 1*RS485, Support for multiple PTZ protocol |
| USB Port | 3*USB2.0 ports |
| HDD | 2*SATA interface (Up to 14TB) |
| Temperature | 0 ℃ - + 55 ℃ |
| Humidity | 10% -90% RH |
| Power supply | 12V/4A |
| Consumption | <10W（Without HDD） |
| Weight | Around 1.8KG |
| Dimension | 350mm(L)* 296mm(W)* 44mm(H) |

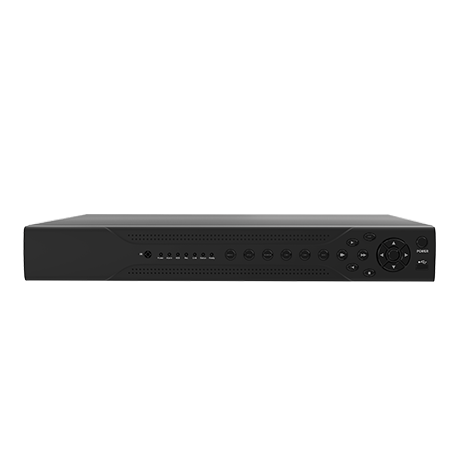

Photos
Files
- ADVR8016DA-NLME-V4.pdf (document, 181 KB)
