AHB7004T-LME-V3
4/8/16ch 1080N Intelligent AHD DVR Board(V3) · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3520D
- Listed:
- 2017
Xiongmai
4/8/16ch 1080N Intelligent AHD DVR Board(V3)
Features
- Support H.264+（Quasi H.265） encoding, ultra-low bitrates, compatible with H.264 surroundings
- Support VGA, HDMI HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (ios, android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support AHD/TVI/CVI/CVBS/IP five signals
- Support XVI，image quality is better
- Support intelligent video analysis
| Model | AHB7004T-LME-V3 / AHB7008T-LME-V3 / AHB7016T-LME-V3 |
|---|---|
| System | Main processor / Hi3520D V300 / Hi3520D V300 / Hi3521A |
| Video | Codec / H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA、HDMI：HD |
| Preview ability | 4*4M-N@15fps(AHD)/4*1080N (5 in 1) / 8*4M-N@15fps(AHD)/8*1080N (5 in 1) / 16*4M-N@15fps(AHD)/16*1080N (5 in 1) |
| Encode ability | 4*4M-N@15fps (AHD)/ 4*1080N (5 in 1) / 8*4M-N@8fps (AHD)/ 8*1080N@12fps (5 in 1) / 16*4M-N@8fps(AHD)/ 16*1080N@12fps(5 in 1)/16*960H |
| Decode ability | 2*4M-N@15fps (AHD)/4*1080N (5 in 1) / 8*4M-N@8fps (AHD)/8*1080N@12fps (5 in 1) / 16*4M-N@6fps(AHD)/ 16*1080N@12fps(5 in 1)/16*960H |
| Multi-mode input | analog:4*4M-N;4*1080N; hybrid: 2*1080N(analog)+2*960P(network); network:8*1080P;12*960P;8*720P;1*1080P; / analog:8*4M-N;4*1080P; hybrid: 2*1080P(analog)+2*1080P(network); 4*1080N(analog)+4*960P(network); network:16*1080P;9*1080P;16*960P;4*5M; / analog:16*4M-N;8*1080N;16*960H; hybrid: 8*1080N(analog)+8*960P(network); network:8*1080P+8*960P;4*4M;4*5M; |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record | Record mode / manual>alarm>motion detection>timing |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 4ch BNC / 8ch BNC / 16ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Audio I/O | 4/1 / 4(8)/1 / 2(6)/1 |
| Alarm I/O | 0(4)/0(1) |
| Network | RJ45 10M/100M self-adaption |
| Extension interface | 2* USB 2.0 ports(3G、WIFI can be extended); 1*RS485,Support kinds of PTZ protocols; |
| HDD | 2*SATA ports (Max 8TB/per) |
| General | Power supply / 12V/4A |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 200mm*78mm / 200mm*78mm / 235mm*90mm |
| Weight | 160g / 186g / 284g |
Photos
Files

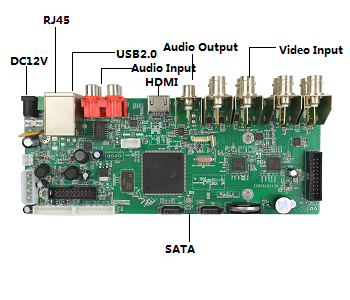

- interface-1.png (pinout, 130 KB)

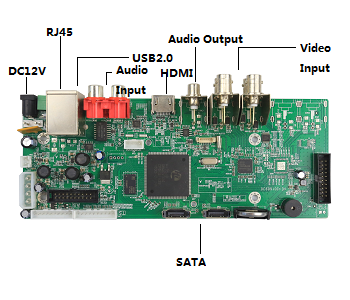

- interface-2.png (pinout, 138 KB)

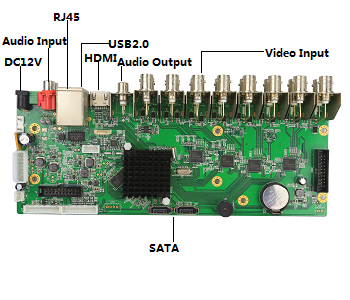

- interface-3.png (pinout, 146 KB)
