AHB7004T-MH-V2
4/8ch 1080P AHD DVR Board(V2) · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3521A
- Device IDs:
- 00000142, C6380142
- Listed:
- 2015
Xiongmai
4/8ch 1080P AHD DVR Board(V2)
Features
- Support VGA, HDMI full HD output simultaneously
- support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP searches, etc.)
- Remote Access, With DNS (ARSP),easy to monitor remotely
| Model | AHB7004T-H-V2 / AHB7004T-MH-V2 / AHB7008T-MH-V2 |
|---|---|
| System | Main processor / Hi3521A / Hi3520D V300 / Hi3521A |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4 / 1/4/8/9 |
| Video | Codec / H.264 |
| Monitor quality | VGA、HDMI：HD |
| Encode ability | 4*AHD-H / 4*1080N/4*AHD-H@15fps / 8*1080N/8*AHD-H@12fps |
| Decode ability | 4*AHD-H / 4*1080N/4*AHD-H@15fps / 8*1080N/4*AHD-H@12fps |
| Multi-mode input | analog: 4*AHD-H ； hybrid: 4*AHD-H ( analog ) +4*1080P ( network ) Network only : 8*1080P;16*960P; 4*5M; 4*3M / analog: 4*AHD-H ； 4*1080N ； hybrid: 2*AHD-H(analog)+2*1080P(network) Network only : 8*1080P; 16*960P; 4*5M; / analog: 8*AHD-H ； 8*1080N ； hybrid: 4*AHD-H(analog)+4*1080P(network) Network only : 8*1080P; 16*960P;4*3M ; 4*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 4ch(local input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 4ch BNC / 4ch BNC / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 4ch RCA / 4ch RCA / 4ch RCA( Can be extended to 8ch ) |
| Audio output | 1ch RCA |
| Alarm input | 0( Can be extended to 4ch ) |
| Alarm output | 0( Can be extended to 1ch ) |
| Network interface | RJ45 10M/100M |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 2*USB 2.0 ports |
| HDD | 2*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / 12V/4A / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 200mm*78mm / 171mm*78mm / 200mm*78mm |
| Weight | 171g / 135g / 196g |
Photos
Files

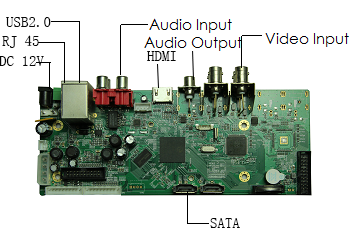

- interface-1.png (pinout, 114 KB)

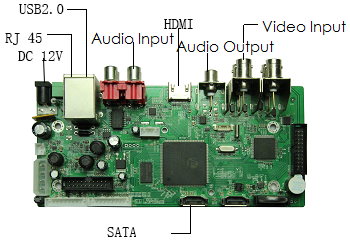

- interface-2.png (pinout, 127 KB)

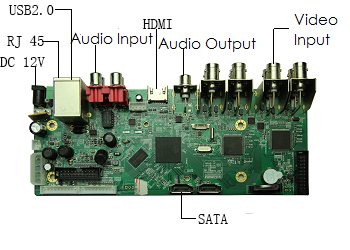

- interface-3.png (pinout, 118 KB)
