AHB7008F8-G-V4
8ch 5MP AHD DVR Board(V4) · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3531A
- Listed:
- 2017
Xiongmai
8ch 5MP AHD DVR Board(V4)
Features
- Support H.264+（Quasi H.265） encoding, ultra-low bitrates, compatible with H.264 surroundings
- Support VGA, HDMI HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (iOS, Android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support AHD/TVI/CVI/CVBS/IP five signals
- Support XVI，image quality is better
| Model | AHB7008F2-G-V4 / AHB7008F4-G-V4 / AHB7008F8-G-V4 |
|---|---|
| System | Main processor / Hi3531A*2 |
| Video | Codec / H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA（1080P at most）；HDMI（4K at most ） |
| Preview ability | 8*5M@20fps (AHD) /8*4M (AHD) |
| Encode ability | 8*5M@20fps(AHD)/8*4M (AHD)/ 8*3M (AHD)/8*1080P (5 in 1) |
| Decode ability | 4*5M@ 20fps (AHD)/4*4M(AHD)/ 4*3M (AHD)/8*1080P (5 in 1) |
| Multi-mode input | analog:8*5M; hybrid:4*5M(analog)+4*5M(network); network:32*1080P ;16*3M; 8*5M; |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record | Record mode / manual>alarm>motion detection>timing |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Audio I/O | 0（8）/0（1） |
| Alarm I/O | 8/1 / 16/4 |
| Network interface | RJ45 10M/100M/1000M self-adaption |
| Extension interface | 2* USB 2.0 ports(3G、WIFI can be extended);1*RS485;Support kinds of PTZ protocols;1*RS232 |
| HDD | 2*SATA ports (Max 8TB/per) / 4*SATA ports (Max 8TB/per) / 8*SATA ports (Max 8TB/per) |
| General | Power supply / 12V/4A / 12V/6A / DVR dedicated ATX Power Supply |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 286mm*148mm |
| Weight | 314g / 315g / 317g |
Photos
Files

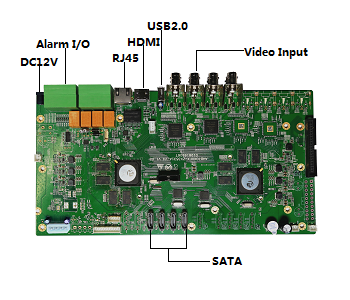

- interface-1.png (pinout, 149 KB)

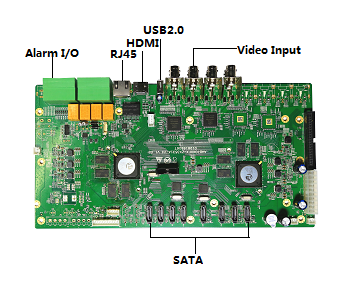

- interface-2.png (pinout, 133 KB)
- interface-3.png (pinout, 149 KB)
