AHB7008T-GL-V4
4/8ch 5MP AHD DVR Board（V4） · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3521A
- Listed:
- 2016
Xiongmai
4/8ch 5MP AHD DVR Board（V4）
Features
- Support H.264+（Quasi H.265） encoding, ultra-low bitrates, compatible with H.264 surroundings
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (ios, android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support AHD/TVI/CVI/CVBS/IP five signals
| Model | AHB7004T-GL-V4 / AHB7008T-GL-V4 |
|---|---|
| System | Main processor / Hi3521A / Hi3531A |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4 / 1/4/8/9 |
| Video | Codec / H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA、HDMI：HD / VGA(1080P at most);HDMI(4K at most) |
| Preview ability | 4*5M@20fps/4*4M / 8*5M@20fps/ 8*5M |
| Encode ability | 4*5M@11fps/ 4*4M@15fps(AHD)/ 4*3M@18fps(AHD)/4*1080P(5 in 1) / 8*5M@11fps/ 8*4M@15fps(AHD)/ 8*3M@18fps(AHD)/ 8*1080P(5 in 1) |
| Decode ability | 4*5M@11fps/ 4*4M@15fps(AHD) / 4*3M@18fps(AHD)/ 4*1080P(5 in 1) / 8*5M@11fps/ 8*4M@15fps(AHD) / 8*3M@18fps(AHD)/ 8*1080P(5 in 1) |
| Multi-mode input | analog： 4*5M； hybrid： 2*5M（analog）+2*5M（network） network：8*1080P+ 8*960P; 4*5M; 4*3M； / analog： 8*5M; hybrid： 4*5M（analog）+4*5M（network） network：8*3M ;4*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 4ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 4ch BNC / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 4ch RCA / 4（Can be extended to 8ch）RCA |
| Audio output | 1ch RCA |
| Alarm input | 0(Can be extended to 4ch) |
| Alarm output | 0(Can be extended to 1ch) |
| Network interface | RJ45 10M/100M |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / 12V/4A / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 171mm*78mm / 200mm*78mm |
| Weight | 135g / 196g |
Photos
Files

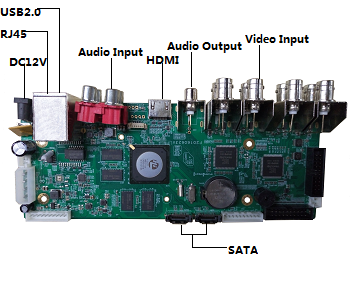

- interface-1.png (pinout, 133 KB)

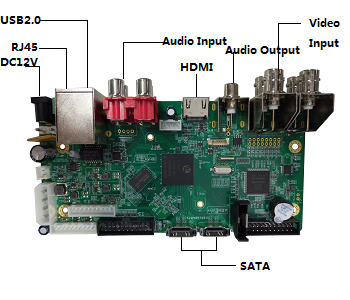

- interface-2.png (pinout, 136 KB)
