AHB7008T4-H-V2
16ch 1080P AHD DVR Board(V2) · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3531A
- Listed:
- 2015
Xiongmai
16ch 1080P AHD DVR Board(V2)
Features
- Support VGA, HDMI full HD output simultaneously
- support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (iPhone, Android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
| Model | AHB7008T-H-V2 / AHB7008T4-H-V2 |
|---|---|
| System | Main processor / Hi3531A |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4/8/9 |
| Video | Codec / H.264 |
| Monitor quality | VGA、HDMI：HD |
| Encode ability | 8*AHD-H |
| Decode ability | 8*AHD-H |
| Onvif | support |
| Multi-mode input | analog: 8*AHD-H； hybrid:8*AHD-H（analog）+8*1080P（network） Network only： 8*1080P+8*960P;8*3M ;4*5M ； |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 8ch(local input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 2（Can be extended to 6ch） RCA / 0（Can be extended to 8ch） RCA |
| Audio output | 1ch RCA |
| Alarm input | 0（Can be extended to 4ch） / 0（Can be extended to 16ch） |
| Alarm output | 0（Can be extended to 1ch） / 0（Can be extended to 4ch） |
| Network interface | RJ45 10M/100M |
| PTZ control | 1*RS485； Support kinds of PTZ protocols / 0（Can be extended to 1*RS485, 1*RS232；Support kinds of PTZ protocols） |
| USB | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 8TB/per) / 4*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / 12V/4A / 12V/6A / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 235*90mm |
| Weight | 253g |
Photos
Files

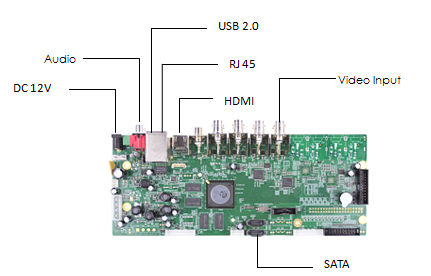

- interface-1.png (pinout, 82 KB)
