AHB7016F8-GS-V3
16ch 4MP AHD DVR Board(V3) · XVI/AHD DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3531A
- Listed:
- 2017
Xiongmai
16ch 4MP AHD DVR Board(V3)
Features
- Support H.264+（Quasi H.265） encoding, ultra-low bitrates, compatible with H.264 surroundings
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile phone、pad monitoring (ios, android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support AHD/TVI/CVI/CVBS/IP five signals
| Model | AHB7016F8-GS-V3 |
|---|---|
| System | Main processor / Hi3531A |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4/8/9/16 |
| Video | Codec / H.264+（Quasi H.265）/H.264 |
| Monitor quality | VGA(1080P at most);HDMI(4K at most) |
| Preview ability | 16*4M@15fps(AHD)/ 16*3M@18fps(AHD)/16*1080P ( 5 in 1) |
| Encode ability | 16*4M@8fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @15fps (5 in 1) / 16*720P( 5 in 1) |
| Decode ability | 8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/8*1080P @15fps (5 in 1) / 8*720P( 5 in 1) |
| Multi-mode input | analog：16*4M； hybrid：8*4M（analog）+8*4M（network） network：8*3M ;4*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 8ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 16ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 0ch RCA（Can be extended to 16ch) |
| Audio output | 0ch RCA（Can be extended to 1ch） |
| Alarm input | 16ch |
| Alarm output | 4ch |
| Network interface | RJ45 10M/100M/1000M self-adaption |
| PTZ control | 1*RS485;1*RS232;Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 8*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / DVR dedicated ATX Power Supply / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 285mm*127mm |
| Weight | 343g |
Photos
Files

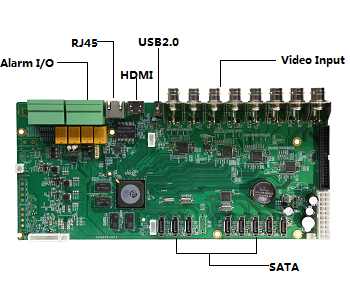

- interface-1.png (pinout, 151 KB)
