AHB7032F8-LM-V2
32ch 1080N AHD DVR Board(V2) · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3531A
- Listed:
- 2016
Xiongmai
32ch 1080N AHD DVR Board(V2)
Features
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support various mobile monitoring (iPhone, Android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
| Model | AHB7032F4-LM-V2 / AHB7032F8-LM-V2 |
|---|---|
| System | Main processor / Hi3531A |
| Interface | Preview / 1/4/8/9/16/32 |
| Video | Codec / H.264 |
| Monitor quality | VGA,HDMI：HD |
| Encode ability | 32*1080N@15fps |
| Decode ability | 8*1080N@15fps |
| Onvif | support |
| Multi-mode input | analog: 32* 1080N，24*1080N，16* 1080N； hybrid: 8* 1080N（analog）+8* 960P（network） Network only：32*1080P，16*3M，8*5M; |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 8ch(local input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 32ch BNC |
| Video output | 1ch VGA, 1ch HDMI |
| Loop Vout | N/A |
| Audio input | 16ch RCA |
| Audio output | 1ch RCA |
| Alarm input | 16ch |
| Alarm output | 4ch |
| Network interface | RJ45 10M/100M /1000M self-adaption |
| PTZ control | 1*RS485;1*RS232, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 4*SATA ports (Max 8TB/per) / 8*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / 12V/6A / DVR dedicated ATX Power Supply / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 282mm*142mm |
| Weight | 259g |
Photos
Files

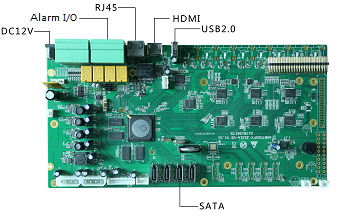

- interface-1.png (pinout, 121 KB)
