AHB7804R-MS-V3
Economic type 4/8ch 1080N AHD DVR Board（V3） · DVR Board
- Maker:
- Xiongmai
- Listed:
- 2016
Xiongmai
Economic type 4/8ch 1080N AHD DVR Board（V3）
Features
- Support VGA, HDMI full HD output simultaneously
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, etc.)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, easy to control leading end through back end
- Support AHD/TVI/CVI/CVBS signal 4 in 1 input
| Model | AHB7804R-MS-V3 / AHB7808R-MS-V3 |
|---|---|
| System | Main processor / The newest processor |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4 / 1/4/8/9 |
| Video | Codec / H.264 |
| Monitor quality | VGA、HDMI：HD |
| Encode ability | 4*1080N / 8*1080N@12fps |
| Decode ability | 4*1080N / 4*1080N@12fps |
| Multi-mode input | analog: 4*1080N support CVBS(960H/D1) / analog: 8*1080N support CVBS(960H/D1) |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 4ch(local input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 4ch BNC / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI(not support audio) |
| Loop Vout | N/A |
| Audio input | 1ch RCA |
| Audio output | 1ch RCA |
| Alarm input | 0 |
| Alarm output | 0 |
| Network interface | RJ45 10M/100M |
| PTZ control | 0 |
| USB | 2* USB 2.0 ports |
| HDD | 1*SATA ports (Max 8TB/per) / 2*SATA port s (Max 8TB/per) |
| Wireless | 0 |
| General | Power supply / 12V/2A / 12V/4A / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 136mm*81mm / 168mm*81mm |
| Weight | 135g / 182g |
Photos
Files

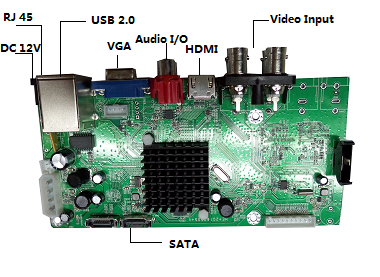

- interface-1.png (pinout, 164 KB)

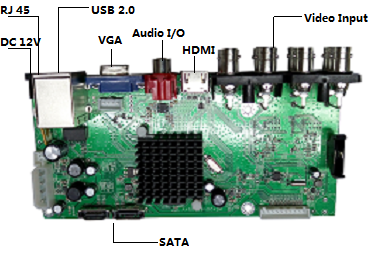

- interface-2.png (pinout, 150 KB)
