AHB7808R-MH-V3
4/8ch 1080P AHD DVR Board(V3) · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3520D
- Listed:
- 2017
Xiongmai
4/8ch 1080P AHD DVR Board(V3)
Features
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (ios, android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support AHD/TVI/CVI/CVBS/IP five signals
- Support XVI，image quality is better
| Model | AHB7804R-MH-V3 / AHB7808R-MH-V3 |
|---|---|
| System | Main processor / Hi3520D V300 / Hi3521A |
| Video | Codec / H.264 |
| Monitor quality | VGA,HDMI：HD |
| Preview ability | 4*5M-N@20fps(5 in 1)； 4*4M-N(5 in 1)； 4*1080P(5 in 1) / 8*1080P (5 in 1) |
| Encode ability | 4*5M-N@12fps(5 in 1)；4*4M-N@15fps(5 in 1)； 4*1080P@15fps(5 in 1) / 8*1080P@12fps(5 in 1)/8*1080N(5 in 1) |
| Decode ability | 2*5M-N@12fps(5 in 1)；4*4M-N@15fps(5 in 1)； 4*1080P@15fps(5 in 1) / 4*1080P@12fps(5 in 1)/8*1080N(5 in 1) |
| Multi-mode input | analog:4*1080P; hybrid :2*1080P(analog)+2*1080P(network);4*1080N(analog)+4*960P(network); network:16*1080P;9*1080P;16*960P;4*5M; / analog:8*1080P;8*1080N; hybrid: 4*1080P(analog)+4*1080P(network); network:8*1080P+8*960P;4*3M;4*5M; |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record | Record mode / manual>alarm>motion detection>timing |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 4ch BNC / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Audio I/O | 1/1 / 1/1 |
| Alarm I/O | 0/0 |
| Network interface | RJ45 10M/100M self-adaption |
| Extension interface | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 8TB/per) |
| General | Power supply / 12V/4A |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 168mm*81mm / 168mm*81mm |
| Weight | 125g / 151g |
Photos
Files

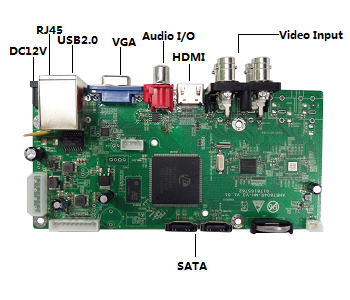

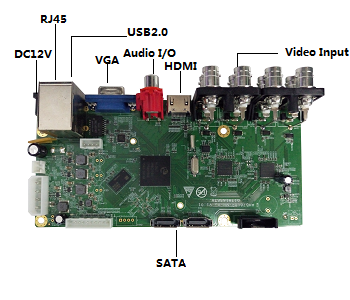

- interface-1.png (pinout, 134 KB)
- interface-2.png (pinout, 145 KB)
