AHB8016T4-GS
16ch 4MP AHD DVR Board · DVR Board
- Maker:
- Xiongmai
- SoC:
- Hi3531D
- Device IDs:
- 0000020B
- Listed:
- 2018
Xiongmai
16ch 4MP AHD DVR Board
Features
- Support H.265+encoding, ultra-low bitrates
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, CMS, center platform management software MYEYE, provide SDK development
- Support various mobile phone、pad monitoring (ios, android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support XVI/AHD/TVI/CVI/CVBS/IP six signals
- Support intelligent analysis: functions like Perimeter alert、item retention、Video diagnosis、intelligent fast play and intelligent retrieval
| Model | AHB8016T4-GS |
|---|---|
| System | Main processor / Hi3531D |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4/8/9 |
| Video | Codec / H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(4K at most) |
| Preview ability | 16*4K-N@15fps(6 in 1)；16*5M@12.5fps(6 in 1)；16*4M@15fps(6 in 1) ； 16*3M@18fps(6 in 1)；16*1080P(6 in 1 |
| Encode ability | 16*4K-N@7fps(6 in 1)；16*5M@6fps(6 in 1)；16*4M@8fps(6 in 1)； 16*3M@10fps(6 in 1)；16*1080P@12fps(6 in 1) |
| Decode ability | 4*4K-N@7fps(6 in 1)；4*5M@6fps(6 in 1)；16*4M@8fps(6 in 1)； 16*3M@10fps(6 in 1)；16*1080P@12fps(6 in 1) |
| Multi-mode input | analog： 16*4M；16*5M；16*1080P； Digital to analog conversion： support（except 16+16 hybrid mode） hybrid： 16*4M（analog）+16*4M（network）；8*4M（analog）+8*4M（network） network：8*3M; 4*5M； |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 16ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 16ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 0 (Can be extended to 16ch) |
| Audio output | 1ch |
| Alarm input | 0(Can be extended to 16ch) |
| Alarm output | 0(Can be extended to 4ch) |
| Network interface | RJ45 10M/100M |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 4*SATA ports (Max 8TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / 12V/6A / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 270mm*90mm |
| Weight | 260g |
Photos
Files

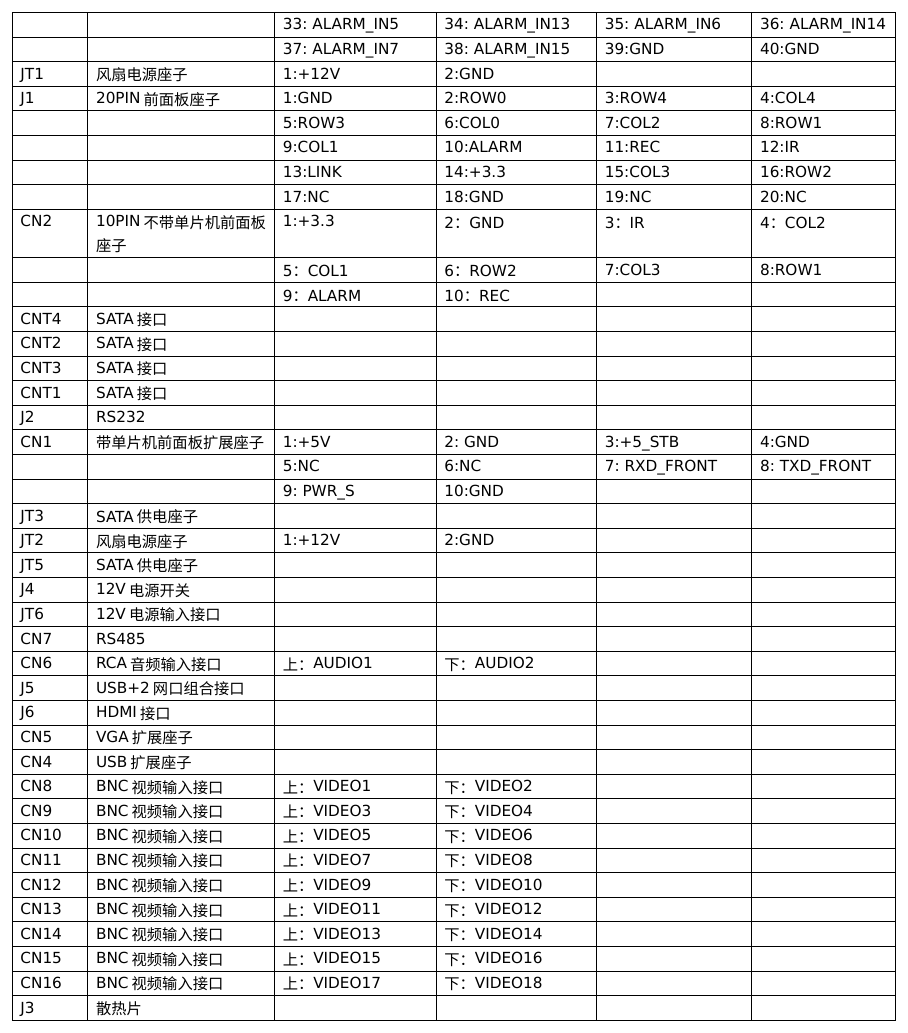

- AHB8016T4-GS-pinout-1.png (pinout, 166 KB)
- AHB8016T4-GS-datasheet.pdf (document, 173 KB)
- AHB8016T4-GS-interface-zh.doc (document, 192 KB)
- AHB8016T4-GS-interface-zh.pdf (document, 226 KB)

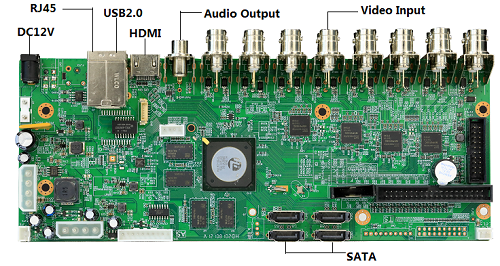

- interface-1.png (pinout, 284 KB)
