AHB8032F8-GS

32ch 5M AHD DVR Board · H.265 XVI DVR Board

Maker:
Xiongmai
SoC:
Hi3531D
Device IDs:
0000020W
Listed:
2019

Xiongmai

32ch 5M AHD DVR Board

Features

  • Support H.265+ encoding, ultra-low bitrates
  • Support VGA, HDMI full HD output simultaneously
  • Support ONVIF; access third party
  • Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
  • Support web, CMS, center platform management software MYEYE, provide SDK development
  • Support various mobile phone、pad monitoring (ios, android)
  • Remote Access, With DNS (ARSP),easy to monitor remotely
  • Support UTC, control signal& video stream transmit through one single coaxial
  • Support XVI/AHD/TVI/CVI/CVBS/IP six signals
  • Support intelligent analysis: functions like Perimeter alert、item retention、Video diagnosis、intelligent fast play and intelligent retrieval
Specifications
ModelAHB8032F8-GS
SystemMain processor / Hi3531D*2
InterfaceOperating interface / support 16-bit true color graphical menu interface and mouse operation
Preview1/4/8/9/16/32
VideoCodec / H.265+
Monitor qualityVGA(1080P at most);HDMI(1080P at most)
Preview ability32*4K-N@15fps(6 in 1)；32*5M@12fps(6 in 1)；32*4M@15fps(6 in 1) ；32*3M@18fps(6 in 1)；32*1080P(6 in 1)
Encode ability32*4K-N@7fps(AHD)；32*5M@6fps(6 in 1)；32*4M@8fps(6 in 1)； 32*3M@10fps(6 in 1)；32*1080P@15fps(6 in1)
Decode ability8*4K-N@7fps(AHD)；8*5M@6fps(6 in 1)；16*4M@8fps(6 in 1)； 16*3M@10fps(6 in 1)；16*1080P@15fps(6 in 1)
Multi-mode inputanalog： 32*5M；32*4M； Digital to analog conversion： support network：32*1080P； 16*3M；8*5M；
Motion DetectionEach screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
AudioAudio compression / G.711A
Intercomsupport
Record & playbackRecord mode / manual>alarm>motion detection>timing
Local Playback8/16ch(analog input mode)
Search modeSearch by time, calendar, event, channel
Storage & backupVideo storage / HDD, network
Backup modeNetwork, USB hard disk, USB burner, SATA burner
External InterfaceVideo input / 32ch BNC
Video output1ch VGA,1ch HDMI
Loop VoutN/A
Audio input0(Can be extended to 16ch)
Audio output0(Can be extended to 1ch)
Alarm input0(Can be extended to 16ch)
Alarm output0(Can be extended to 4ch)
Network interfaceRJ45 10M/100M/1000M
PTZ controlSupport kinds of PTZ protocols
USB2* USB 2.0 ports
HDD8*SATA ports (Max 8TB/per)
Wireless3G, WIFI (extend via USB)
GeneralPower supply / ATX / Power Consumption
Working environmentTemperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa
Dimension294mm*147mm
Weight470g

Photos

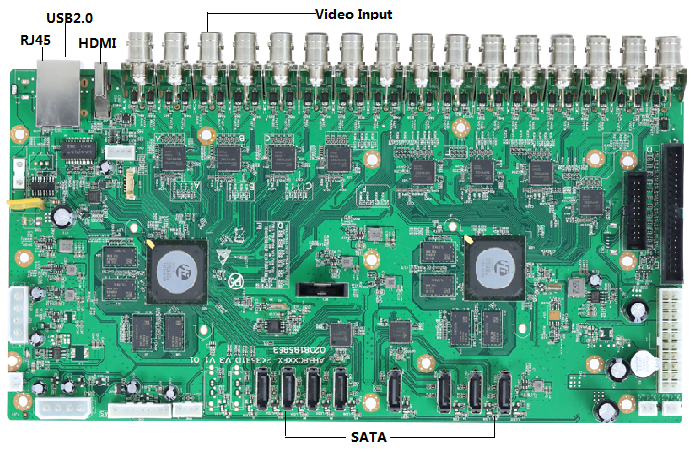

  • front of AHB8032F8-GS
