AHB80N08RM-GS-V4
DVR Board
- Maker:
- Xiongmai
- Device IDs:
- C638024Z
- Listed:
- 2023
JFTech
8ch 4K-N ADVR Board V4 Series
Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings
Support VGA, HDMI full HD output simultaneously
Support ONVIF; access third party
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
Support web, VMS, center platform management software MYEYE, provide SDK development
Support various mobile monitoring (iPhone, Android)
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support XVI/AHD/TVI/CVI/CVBS/IP six signals
Support coaxial audio bidirectional transmission
Support intelligent analysis: Human detection, face detection, vehicle detection, face check video, car vehicle check video
| Main processor | NT98332 |
|---|---|
| Preview | 1/4/8/9 |
| Codec | H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(4K at most) |
| Preview ability | 8*4K-N@15fps(6 in 1) /8*5M@12fps(6 in 1) /8*4M@15fps（6 in 1）/ 8*3M@18fps（6 in 1）/8*1080P（6 in 1）default4K-N |
| Encode ability | 8*4K-N@9fps(6 in 1) /8*5M@8fps(6 in 1) /8*4M@10fps（6 in 1）/ 8*3M@12fps（6 in 1）/8*1080P@18fps（6 in 1）default4K-N |
| Decode ability | 8*4K-N@9fps(6 in 1) /8*5M@8fps(6 in 1) /8*4M@10fps（6 in 1）/ 8*3M@12fps（6 in 1）/8*1080P@18fps（6 in 1）default4K-N |
| Multi-mode input | Analog：8*4K-N hybrid：8*4K-N（analog）+4*5M（network） network：16*1080P;8*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Coaxial audio | Support coaxial audio bidirectional transmission |
| Audio compression | G.711A |
| Intercom | support |
| Record mode | manual>alarm>motion detection>timing |
| Local Playback | 8ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| Video input | 8ch BNC |
| Video output | 1ch VGA, 1ch HDMI |
| Loop Vout | N/A |
| Audio I/O | 1*in/1*out |
| Alarm I/O | 0*in/0*out |
| Network interface | RJ45 10M/100M self-adaption |
| PTZ control | Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 14TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| Power supply | 12V/2A |
| Power Consumption | <15W (without HDD) |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 170mm*70mm |
| Weight | 140g |

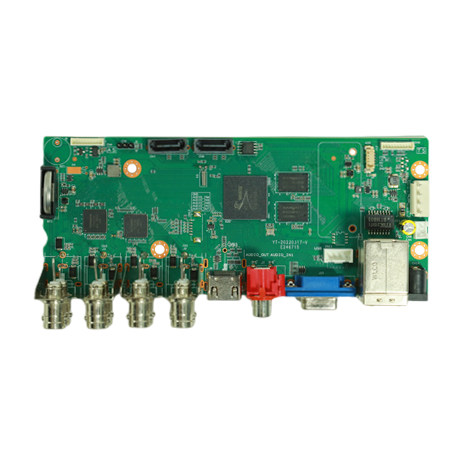

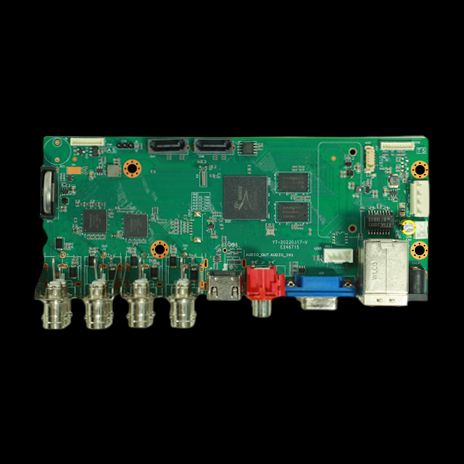

Photos
Files

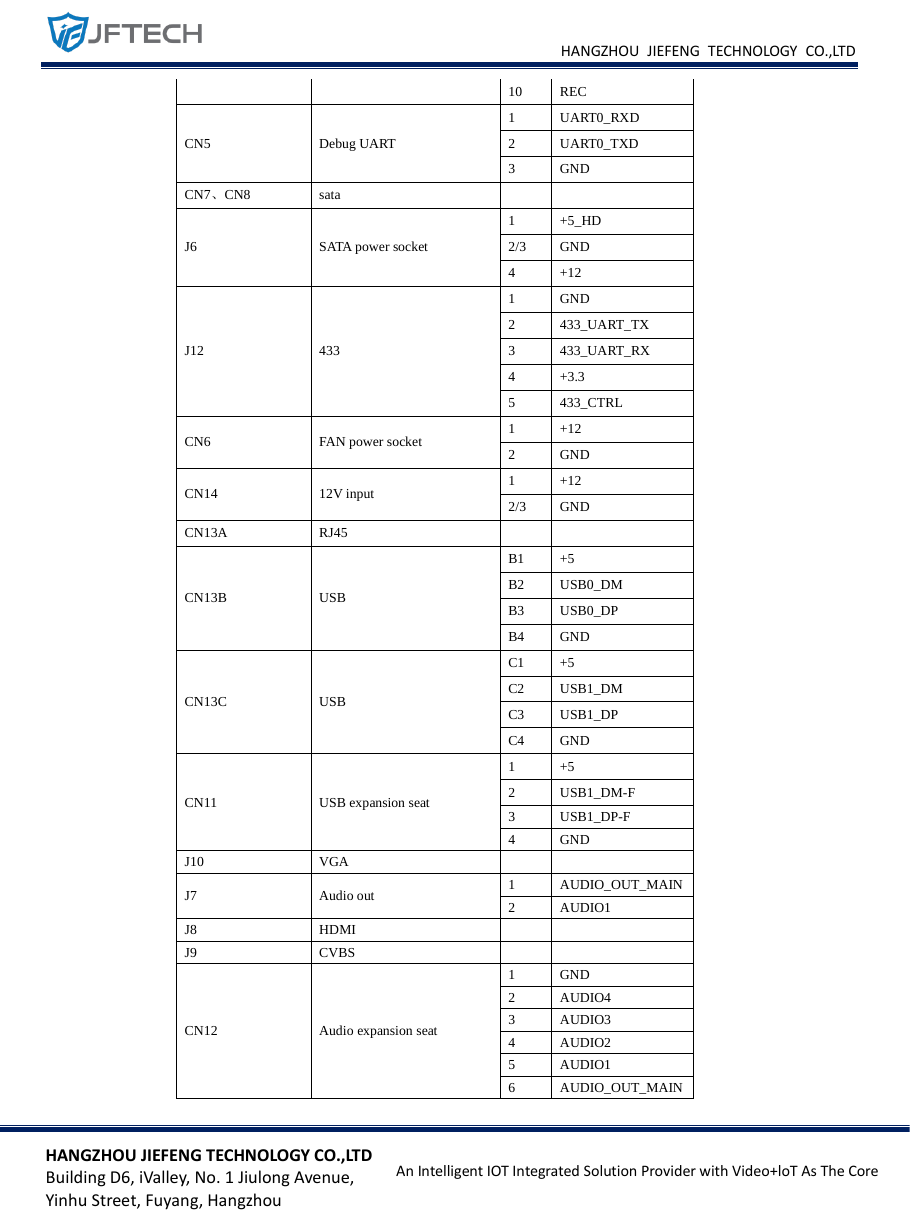

- AHB80N08RM-GS-V4-pinout-2.png (pinout, 91 KB)

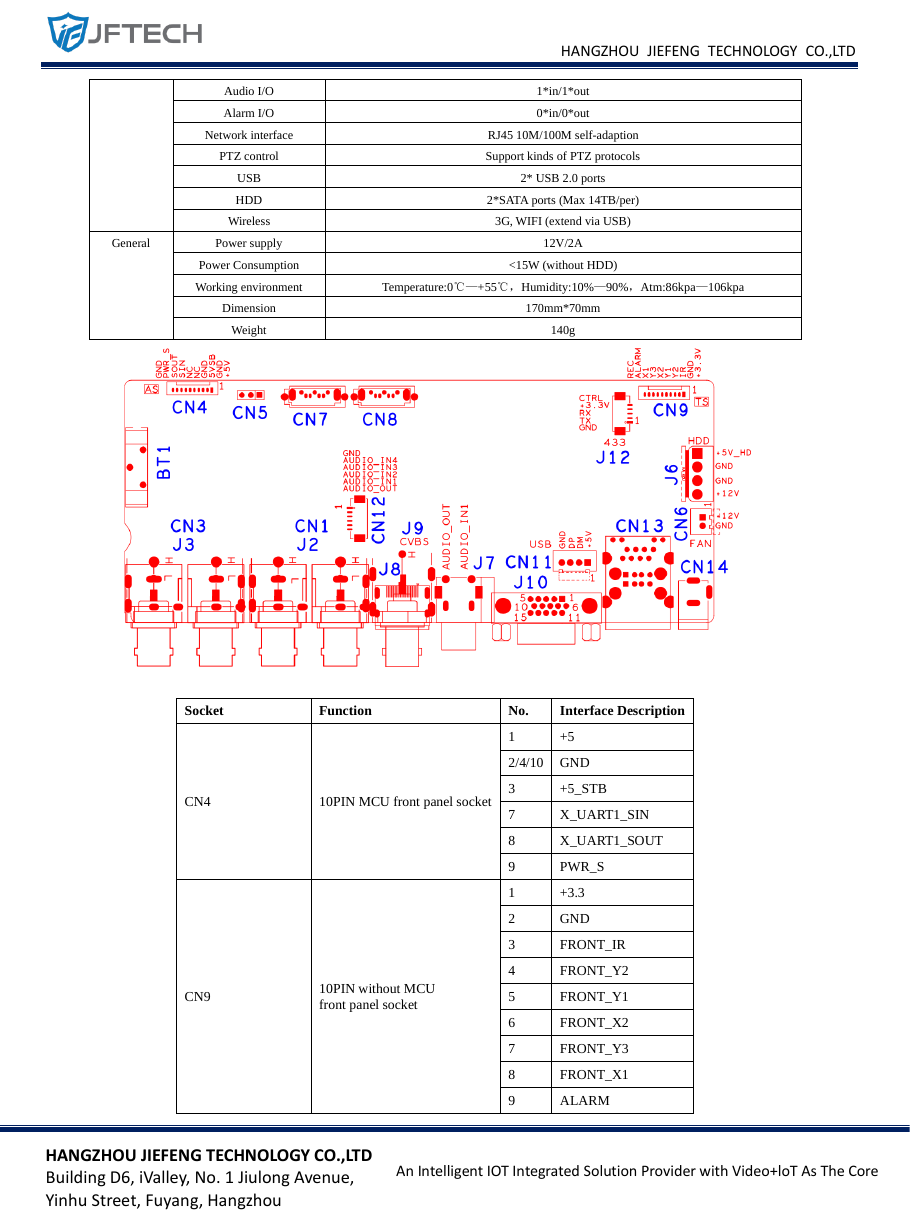

- AHB80N08RM-GS-V4-pinout-1.png (pinout, 146 KB)
- AHB80N08RM-GS-V4.pdf (document, 380 KB)
