AHB80N08RM-LME
8ch 5M-N AHD DVR Board · H.265 XVI DVR Board
- Maker:
- Xiongmai
- Device IDs:
- 00000228
- Listed:
- 2021
Xiongmai
8ch 5M-N AHD DVR Board
Features
- Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings
- Support VGA, HDMI full HD output simultaneously
- Support ONVIF; access third party
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
- Support web, VMS, center platform management software MYEYE, provide SDK development
- Support various mobile monitoring (iPhone, Android)
- Remote Access, With DNS (ARSP),easy to monitor remotely
- Support UTC, control signal& video stream transmit through one single coaxial
- Support XVI/AHD/TVI/CVI/CVBS/IP six signals
- Support intelligent analysis: Human detection, face detection
| Model | AHB80N08RM-LME |
|---|---|
| System | Main processor / NT98321 |
| Interface | Operating interface / support 16-bit true color graphical menu interface and mouse operation |
| Preview | 1/4/8/9 |
| Video | Codec / H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(2K at most) |
| Preview ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps（6 in 1）/ 8*1080P@15fps（XVI），default:5M-N |
| Encode ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps（6 in 1）/ 8*1080P@15fps（XVI），default:5M-N |
| Decode ability | 8*5M-N@12fps(6 in 1)/ 8*4M-N@15fps（6 in 1）/ 8*1080P@15fps（XVI），default:5M-N |
| Multi-mode input | Analog：8*5M-N hybrid：8*5M-N（analog）+4*1080P（network） Network：16*1080P；8*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Audio | Audio compression / G.711A |
| Intercom | support |
| Record & playback | Record mode / manual>alarm>motion detection>timing |
| Local Playback | 4ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Storage & backup | Video storage / HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | Video input / 8ch BNC |
| Video output | 1ch VGA,1ch HDMI |
| Loop Vout | N/A |
| Audio input | 1ch |
| Audio output | 1ch |
| Alarm input | 0 |
| Alarm output | 0 |
| Network interface | RJ45 10M/100M |
| PTZ control | Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 14TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | Power supply / 12V/2A / Power Consumption |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 170mm*60mm |
| Weight | 124g |
Photos
Files

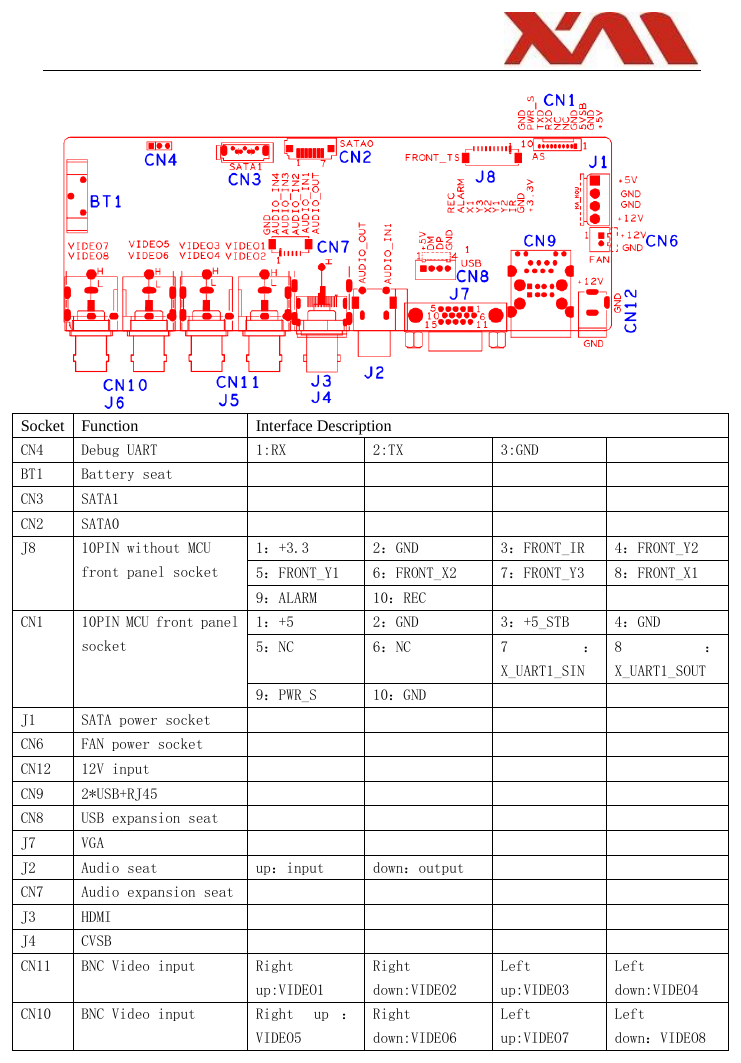

- AHB80N08RM-LME-pinout-1.png (pinout, 149 KB)
- AHB80N08RM-LME-datasheet.pdf (document, 301 KB)
- AHB80N08RM-LME-interface-en.pdf (document, 139 KB)
- AHB80N08RM-LME-interface-zh.pdf (document, 147 KB)
