AHB80N16F4-GL-V4
DVR Board
- Maker:
- Xiongmai
- Device IDs:
- C638024P
- Listed:
- 2023
JFTech
16ch 4K ADVR Board V4 Series
Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support web, CMS, center platform management software MYEYE, provide SDK development;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support coaxial audio bidirectional transmission
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Support intelligent analysis: Vehicle shape detection, Human detection, face detection
| Main processor | NT98336 |
|---|---|
| Preview | 1/4/8/9/16 |
| Codec | H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(4K at most) |
| Preview ability | 16*8M@15fps(6 in 1)；16*5M@20fps(6 in 1)；16*4M(6 in 1)； |
| Encode ability | 16*8M@8fps((6 in 1)；16*5M@13fps(6 in 1)；16*4M@18fps(6 in 1)； 16*3M@21fps(6 in 1)；16*1080P(6 in 1)； |
| Decode ability | 16*8M@8fps(6 in 1)；16*5M@13fps(6 in 1)；16*4M@18fps(6 in 1)； 16*3M@21fps(6 in 1)；16*1080P(6 in 1)； |
| Multi-mode input | Analog：16*8M； Hybird:16*4K(analog)+16*4K (network) network：32*4K |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Coaxial audio | G.711A |
| Audio compression | Support coaxial audio bidirectional transmission |
| Intercom | support |
| Record mode | manual>alarm>motion detection>timing |
| Local Playback | 16ch/8ch |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| Video input | 16ch BNC |
| Video output | 1ch VGA, 1ch HDMI |
| Loop Vout | N/A |
| Audio I/O | 0(Can be extended to16ch)/0(Can be extended to1ch) |
| Alarm I/O | 4月16日 |
| Network interface | RJ45 10M/100M/1000M self-adaption |
| PTZ control | Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports(Can be extended to3ch) |
| HDD | 4*SATA ports (Max14TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| Power supply | 12V/6A |
| Power Consumption | <15W (without HDD) |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 286mm*128mm |
| Weight | 373g |

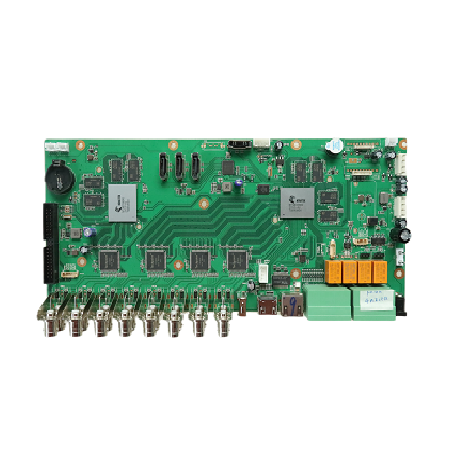

Photos
Files

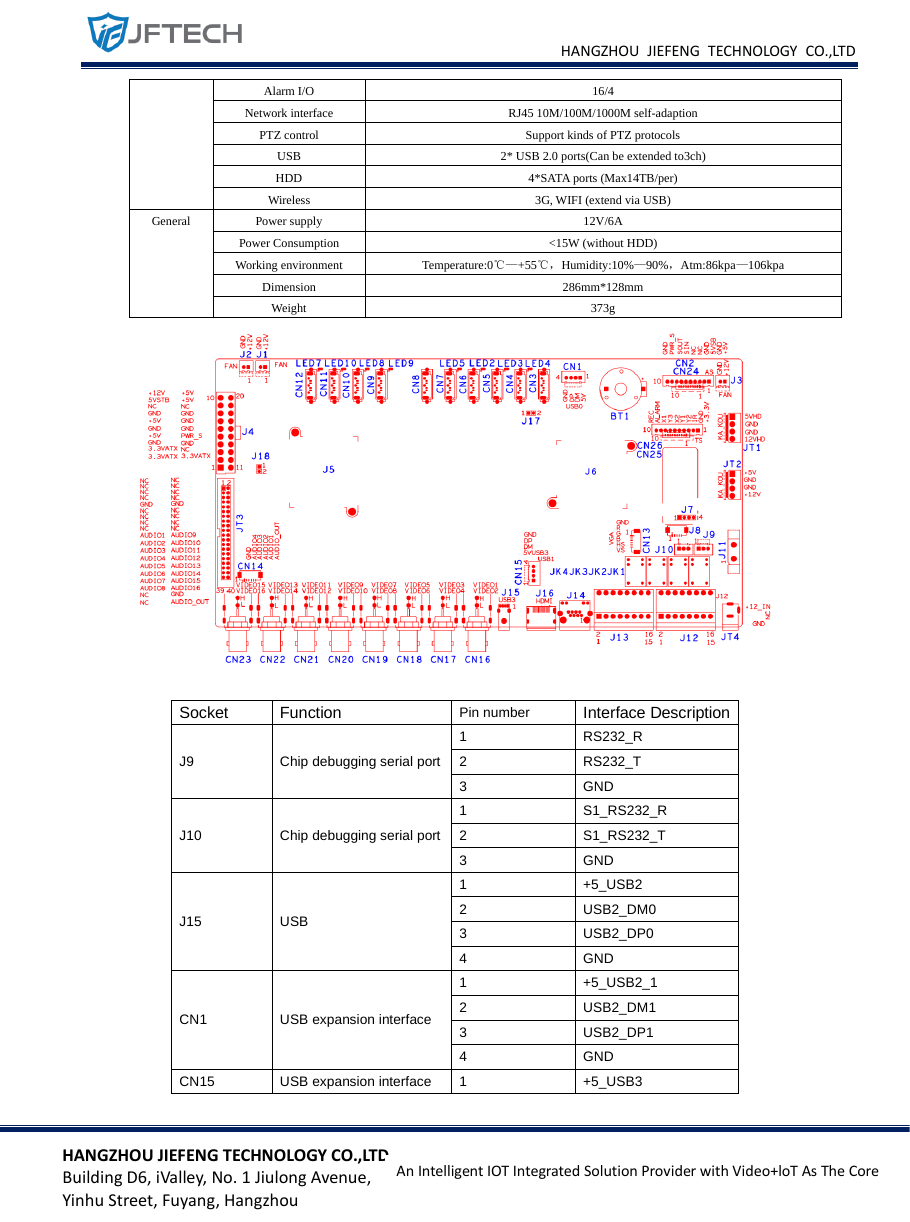

- AHB80N16F4-GL-V4-pinout-3.png (pinout, 104 KB)

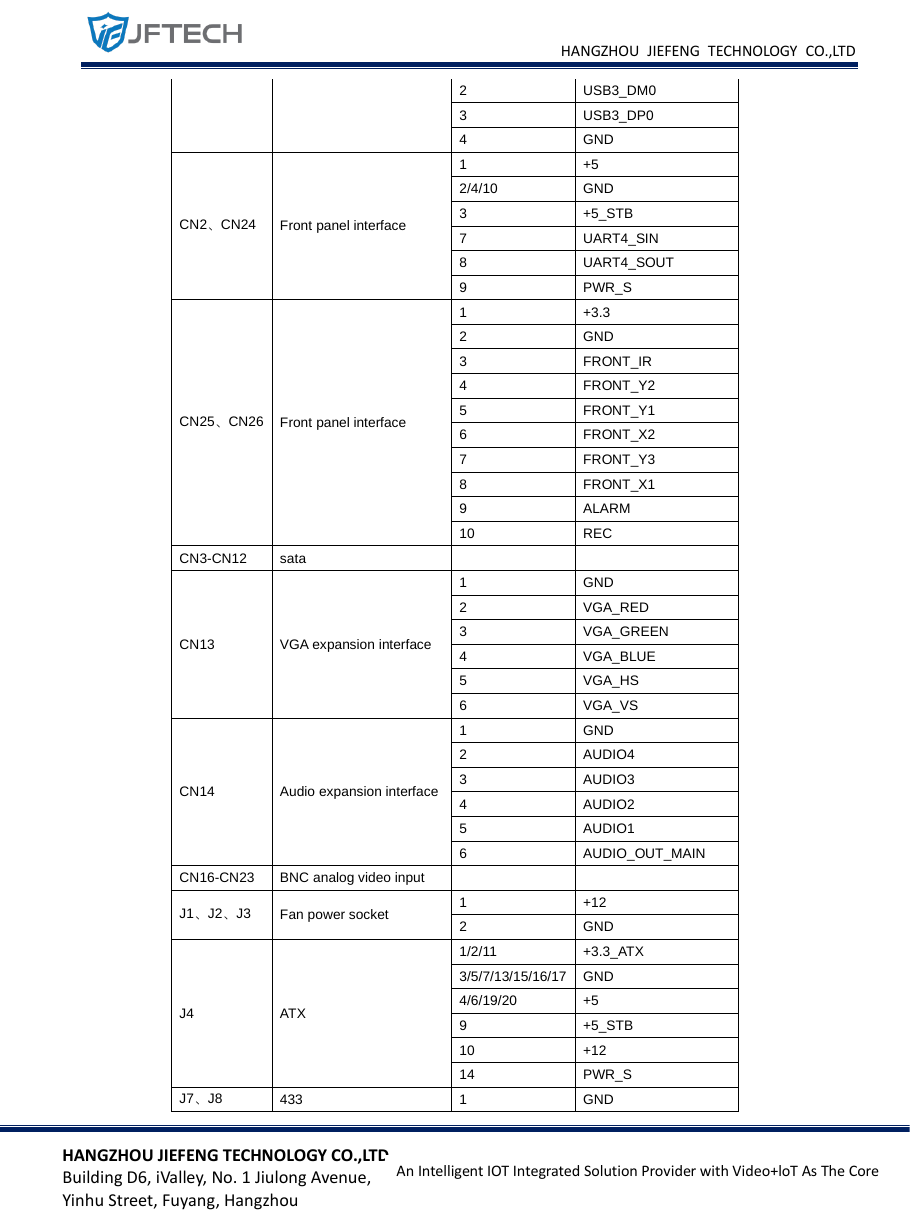

- AHB80N16F4-GL-V4-pinout-2.png (pinout, 103 KB)

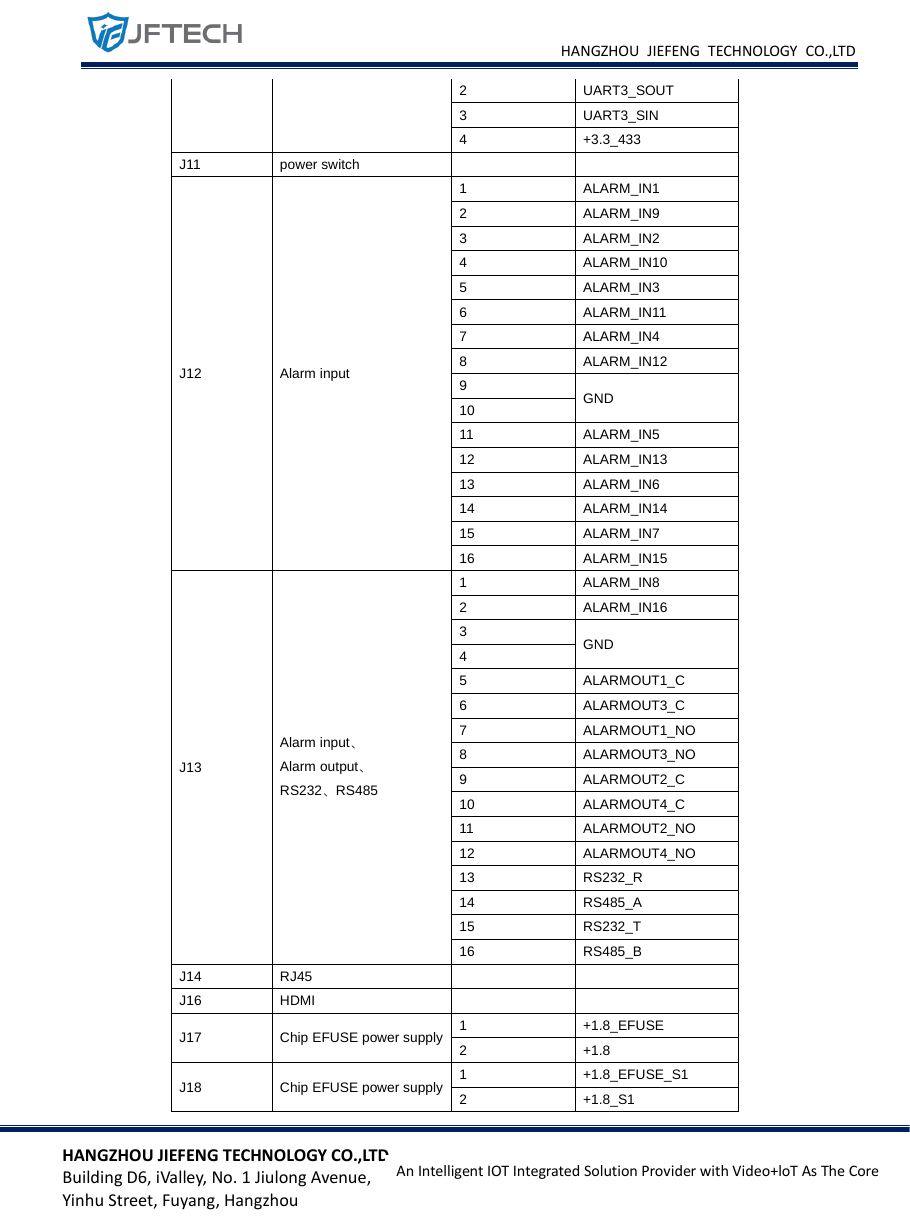

- AHB80N16F4-GL-V4-pinout-1.png (pinout, 188 KB)
