AHB80N16T-LME-V4

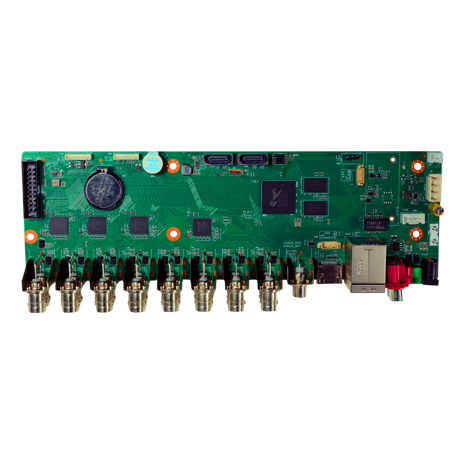

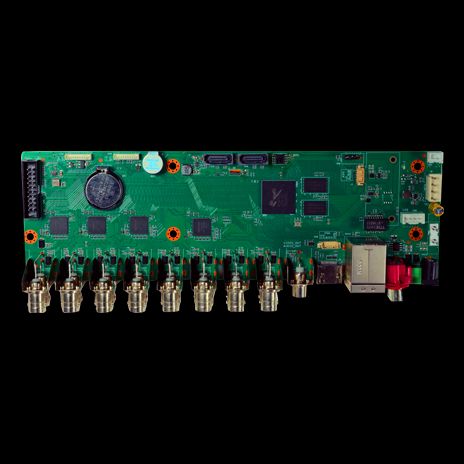

DVR Board
- Maker:
- Xiongmai
- Device IDs:
- C638024S
- Listed:
- 2023
JFTech
16ch 5M-N ADVR Board V4 Series
Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Support HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support web, VMS, center platform management software MYEYE, provide SDK development;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Support intelligent analysis: Human detection, face detection, Vehicle shape detection;
| Main processor | NT98332 |
|---|---|
| Preview | 1/4/8/9/16 |
| Codec | H.265+ |
| Monitor quality | VGA (1080P at most)；HDMI (4K at most) |
| Preview ability | 16*5M-N@12fps(6 in 1)/16*4M-N@15fps(6 in 1)/16*1080P@15fps(6 in 1)，default5M-N |
| Encode ability | 16*5M-N@6fps(6 in 1)/16*4M-N@8fps(6 in 1)/16*1080P@8fps(6 in 1)，default5M-N |
| Decode ability | 16*5M-N@6fps(6 in 1)/16*4M-N@8fps(6 in 1)/16*1080P@8fps(6 in 1)，default5M-N |
| Multi-mode input | Analog：16*5M-N hybrid：16*5M-N（analog）+4*1080P（network） network：16*1080P；8*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Coaxial audio | support |
| Audio compression | G.711A |
| Intercom | support |
| Record mode | manual>alarm>motion detection>timing |
| Local Playback | 16ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| Video input | 16ch BNC |
| Video output | 1ch HDMI（Support extended VGA*1） |
| Loop Vout | N/A |
| Audio I/O | 2（Can be extended to 6ch）/1 |
| Alarm I/O | 0（Can be extended to 4ch）/0（Can be extended to 1ch） |
| Network interface | RJ45 10M/100M self-adaption |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 2*SATA ports (Max 14TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| Power supply | 12V/2A |
| Power Consumption | <15W (without HDD) |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 239mm*75mm |
| Weight | 248g |
Photos
Files

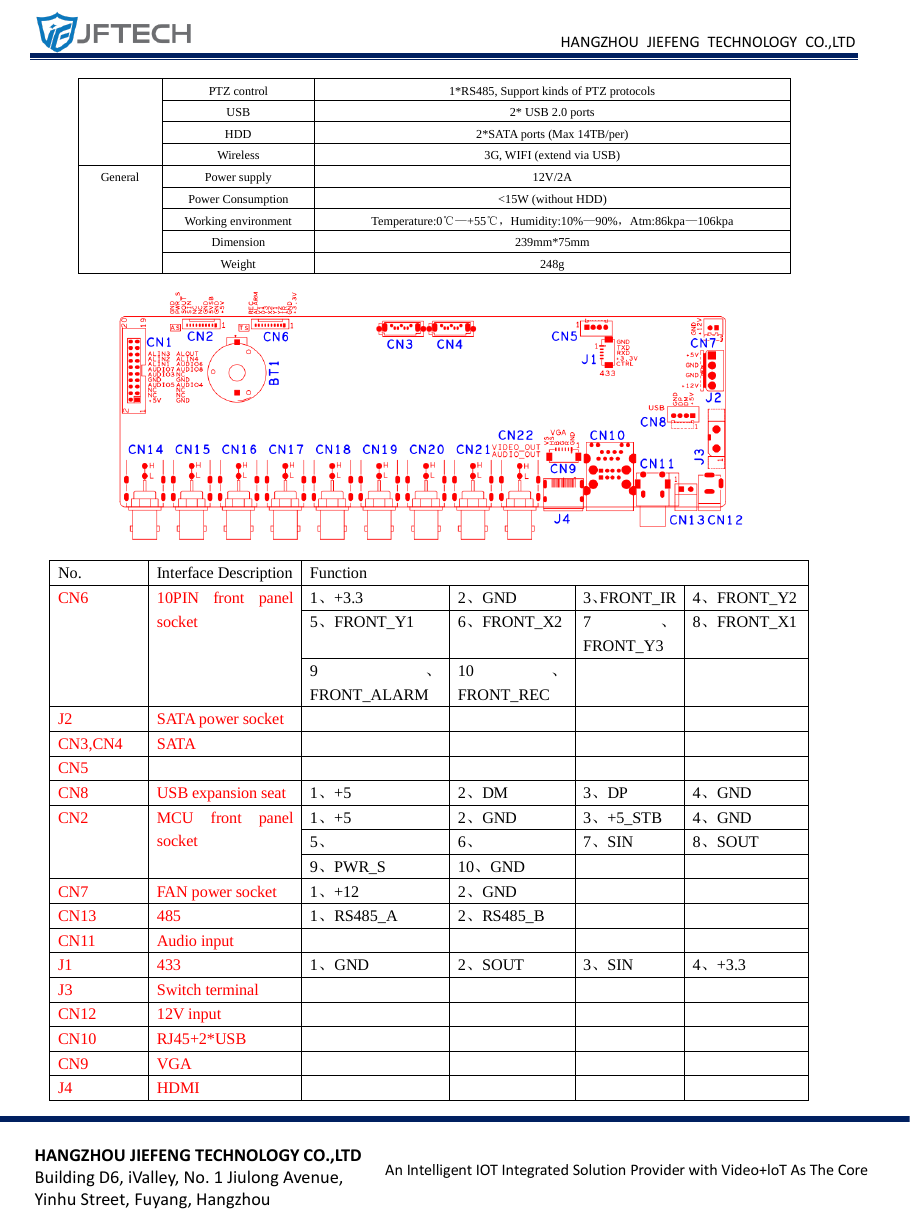

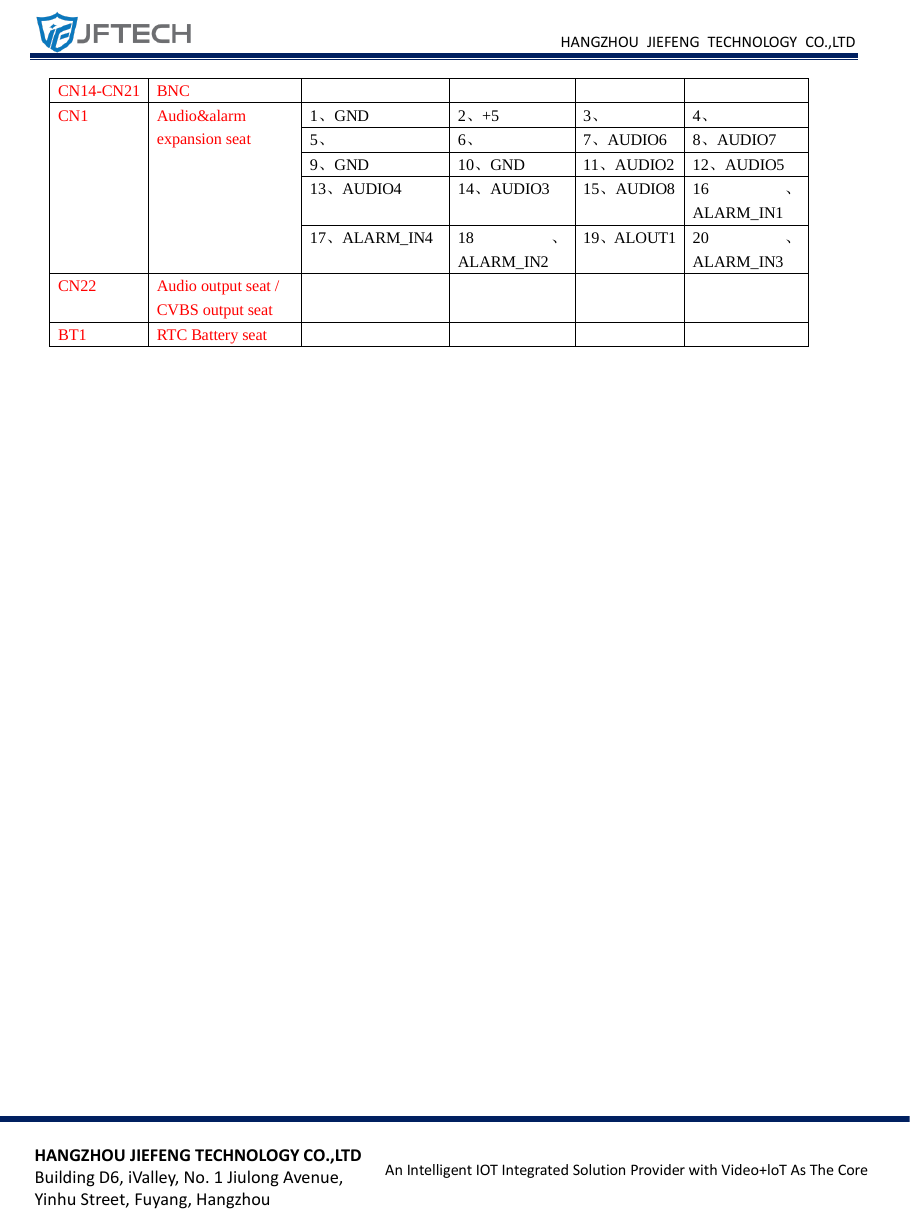

- AHB80N16T-LME-V4-pinout-2.png (pinout, 63 KB)
