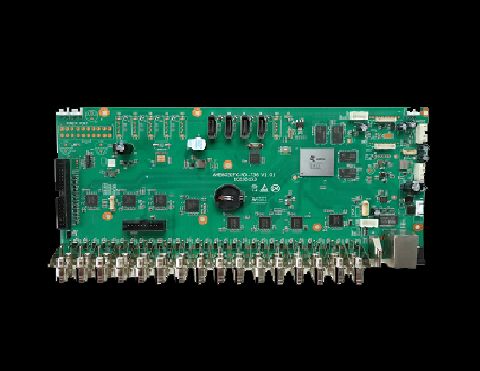

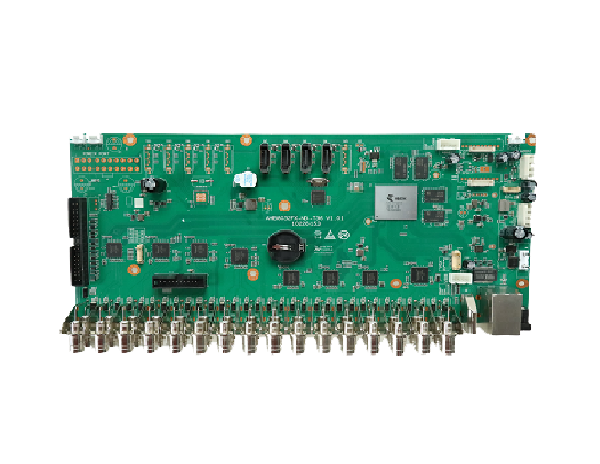

AHB80N32F4-LME-V4
DVR Board
- Maker:
- Xiongmai
- Device IDs:
- C6380249
- Listed:
- 2023
JFTech
32ch 5M-N ADVR Board V4 Series
Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support web, CMS, center platform management software MYEYE, provide SDK development;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely
Support UTC, control signal& video stream transmit through one single coaxial
Support coaxial audio bidirectional transmission
Support XVI/AHD/TVI/CVI/CVBS/IP six signals;
Support intelligent analysis: Human shape detection, face detection, car shape detection
| Main processor | NT98336 |
|---|---|
| Preview | 1/4/8/9/16/32 |
| Codec | H.265+ |
| Monitor quality | VGA(1080P at most);HDMI(4K at most) |
| Preview ability | 32*5M-N@12fps (6 in 1)/32*4M-N@15fps (6 in 1)/ 32*1080P@15fps (XVI), default 5M-N |
| Encode ability | 32*5M-N@6fps (6 in 1)/32*4M-N@9fps (6 in 1)/ 32*1080P@8fps (XVI), default 5M-N |
| Decode ability | 8* 5M-N@6fps(6 in 1)/16* 4M-N@8fps(6 in 1)/ 16* 1080P@8fps (XVI), default 5M-N |
| Multi-mode input | Analog：32* 5M-N/32* 4M-N/32* 1080N； hybrid：16*5M-N（analog）+16*5M（network） network：32*4K；16*5M |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Coaxial audio | support |
| Audio compression | Support coaxial audio bidirectional transmission |
| Intercom | G.711A |
| Record mode | manual>alarm>motion detection>timing |
| Local Playback | 8ch(analog input mode) |
| Search mode | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup mode | Network, USB hard disk, USB burner, SATA burner |
| Video input | 32ch BNC |
| Video output | 1ch HDMI(Can be extended to1chVGA) |
| Loop Vout | N/A |
| Audio I/O | 0(Can be extended to16ch)/0(Can be extended to1ch) |
| Alarm I/O | 0(Can be extended to16ch)/0(Can be extended to4ch) |
| Network interface | RJ45 10M/100M/1000M self-adaption |
| PTZ control | 1*RS485, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 4*SATA ports (Max 14TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| Power supply | 12V/6A |
| Power Consumption | <15W (without HDD) |
| Working environment | Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa |
| Dimension | 296mm*126.5mm |
| Weight | 423g |
Photos
Files

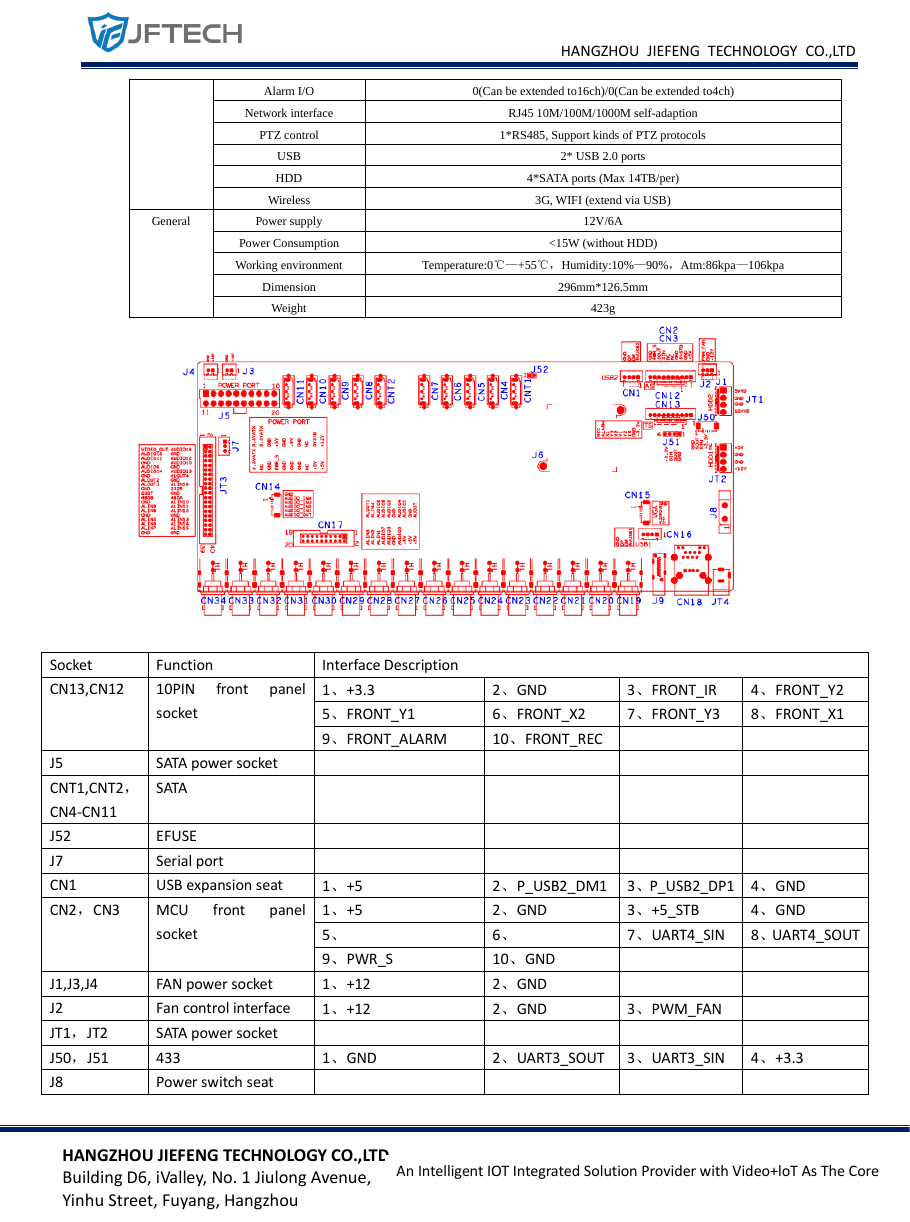

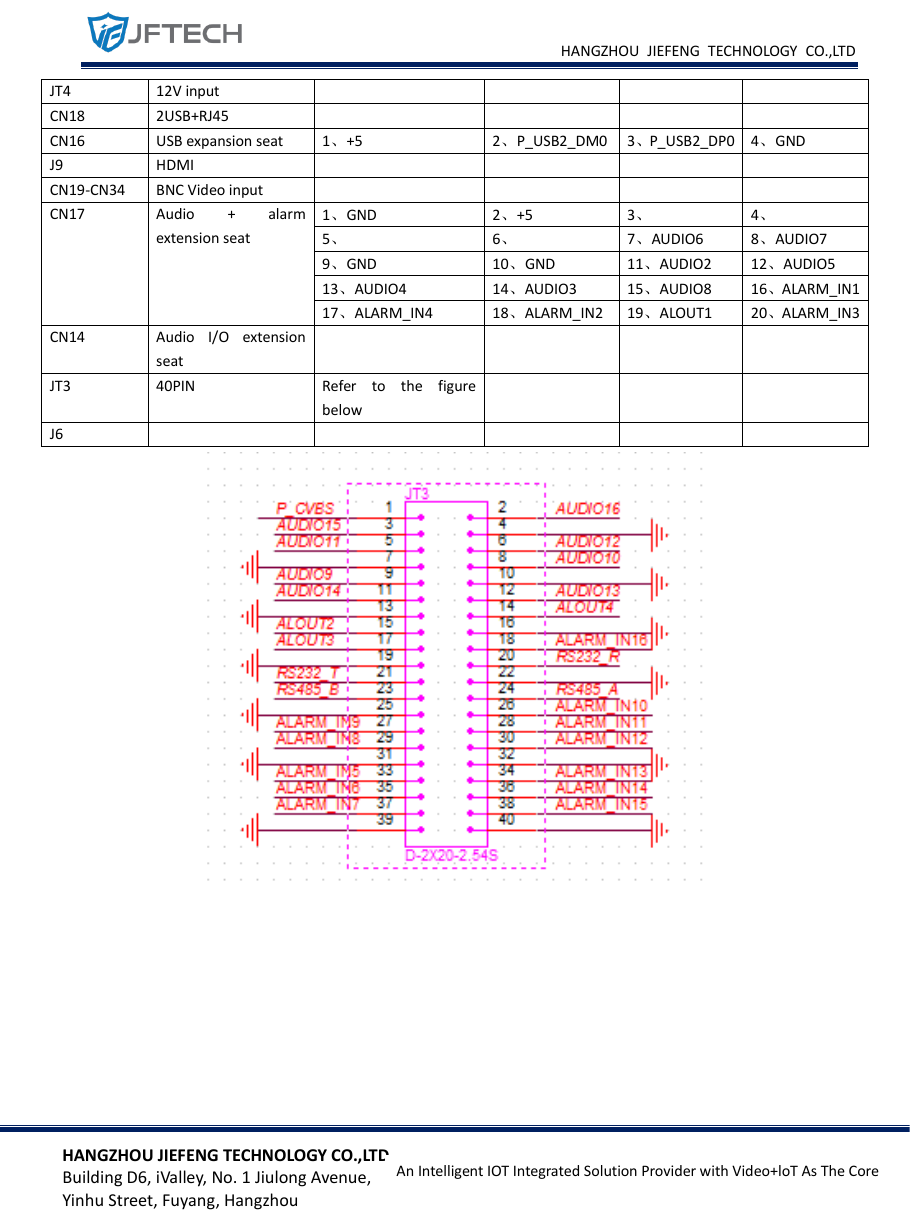

- AHB80N32F4-LME-V4-pinout-2.png (pinout, 176 KB)
