AHC-EN5350PSC-X-IR2R
Coaxial Camera
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech

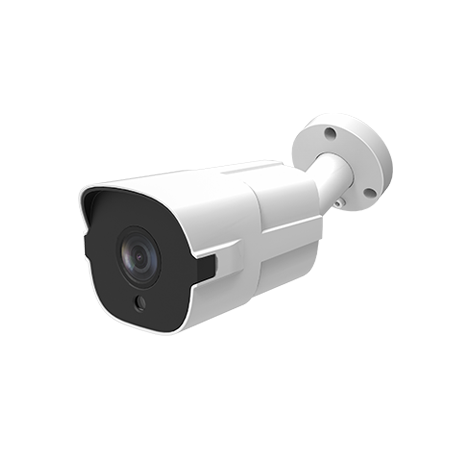

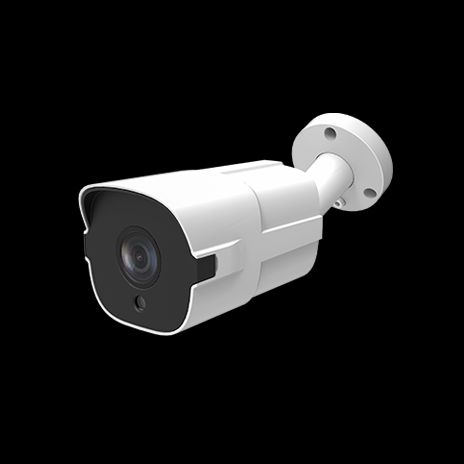

5.0MP Dual-light Bullet Coaxial Camera EN Series
AHC-EN5350PSC-X-IR2R is an outdoor waterproof gun developed by our company, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Sensor | 5.0MP 1/2.7" low illumination CMOS sensor |
|---|---|
| Signal | XVI/AHD/TVI/CVI:5MP@20fps 5MP@12.5fps；CVBS:960H P/N |
| Min.illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter time | 1/50(1/60)s to 1/10,000 s |
| Lens | HD lens 3.6mm @F1.8（6mm、2.8mm optional） |
| Lens mount | M12 |
| Day&night | IR cut filter with auto switch |
| Max.image reolution | 2560*1920 |
| Video output | 1Vp-p Composite Output(75Ω/BNC） |
| Audio I/O | N/A |
| temperature | -10℃-＋60℃ |
| humidity | 10%-90% RH |
| Power supply | DC12V±10% |
| IR range | 1* White lamp 1*array lamp “IR2”:20-30 meters |
| Consumption | MAX 3W |
| Material | metal |
| Ingress Protection | IP66 |
| Weight | Around 300g |
| Dimension | 178mm*67mm*63.5mm |
Photos
Files
- Parameters-for-AHC-EN5350PSC-X-IR2R.pdf (document, 242 KB)
