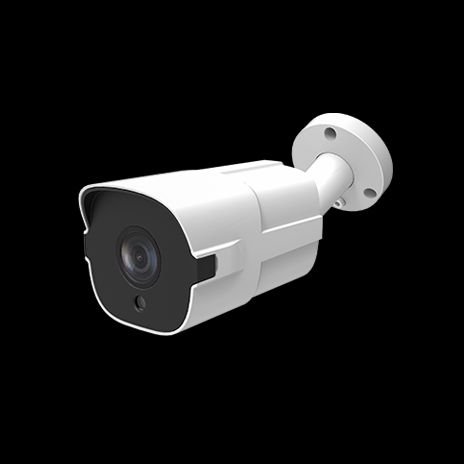

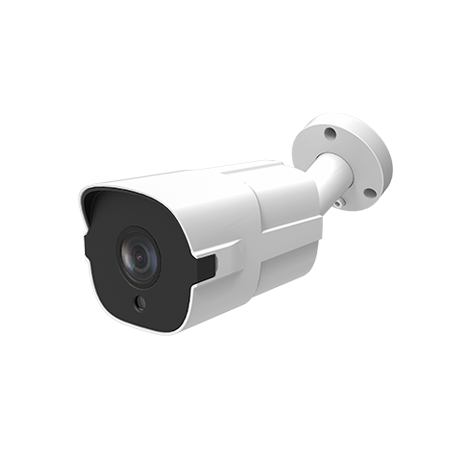

AHC-EN5380PTA-X-IR2
Coaxial Camera
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech
Bullet Coaxial Camera EN Series
AHC-EN5380PTA-X-IR2 is an outdoor waterproof gun camera, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Sensor | 8.0MP 1/2.5" low illumination CMOS sensor |
|---|---|
| Signal | XVI/AHD/TVI@8MP |
| Min.illumination | Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter time | 1/50(1/60)s to 1/10,000 s |
| Lens | HD lens 2.8mm/6mm/3.6mm |
| Lens mount | M12 |
| Day&night | IR cut filter with auto switch |
| Max.image reolution | 3840*2160 |
| Video output | 1Vp-p Composite Output(75Ω/BNC） |
| Audio I/O | N/A |
| temperature | -10℃-＋60℃ |
| humidity | 10%-90% RH |
| Power supply | DC12V±10% |
| IR range | 18 SMD lights “IR2”:20-30 meters |
| Consumption | MAX 3W |
| Material | metal |
| Ingress Protection | IP66 |
| Weight | Around 300g |
| Dimension | 178mm*67mm*63.5mm |
Photos
Files
- Parameters-for-AHC-EN5380PTA-X-IR2.pdf (document, 271 KB)
