AHC-ENB5380PTA-X-IR3-VF
Coaxial Camera
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech
8.0MP Bullet Coaxial Camera ENB Series
AHC-ENB5380PTA-X-IR2R-VF is an manual focus outdoor waterproof Camera developed by our company, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Sensor | 1/2.5" CMOS sensor |
|---|---|
| Signal | XVI/AHD/TVI@8MP |
| Min.illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter time | 1/50(1/60)s to 1/10,000 s |
| Lens | HD lens 2.8mm-12mm manual focus |
| Lens mount | M14 |
| Day&night | IR cut filter with auto switch |
| Max.image reolution | 3840*2160 |
| Video output | 1Vp-p Composite Output(75Ω/BNC） |
| Audio I/O | N/A |
| temperature | 0℃-＋55℃ |
| humidity | 10%-90% RH |
| Power supply | DC12V±10% |
| IR range | 24* led lamp“IR2”:30-40 meters |
| Consumption | MAX 4W |
| Material | ABS plastic+Metal |
| Ingress Protection | IP67 |
| Weight | Around 610g |
| Dimension | 78*78*239mm |

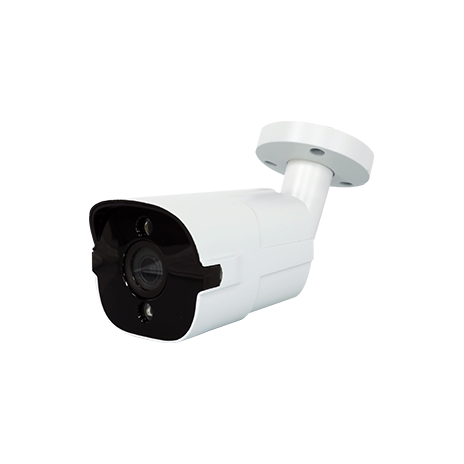

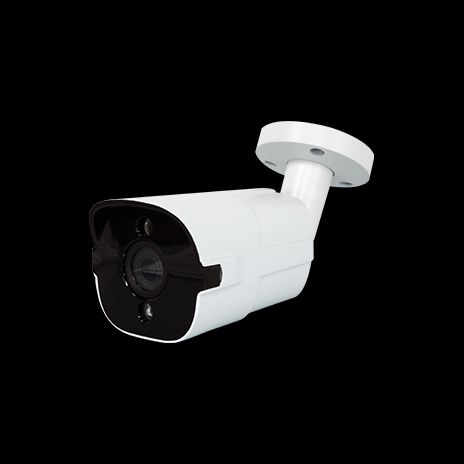

Photos
Files
- Parameters-for-AHC-ENB5380PTA-X-IR3-VF.pdf (document, 243 KB)
