AHC-EQI5380PTA-X-IR2R
Coaxial Camera
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech

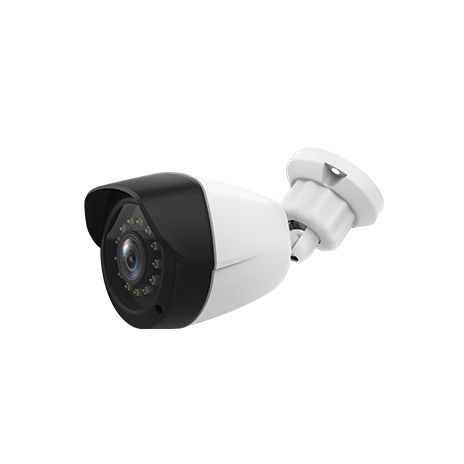

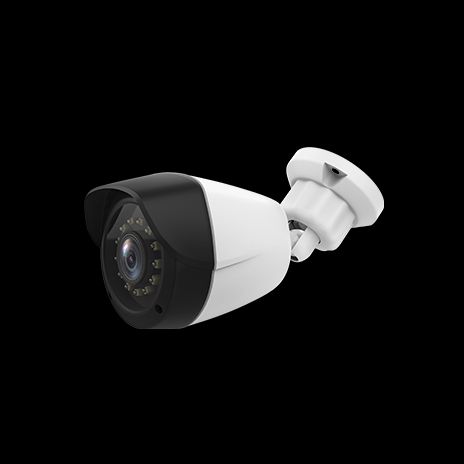

8.0MP Dual-light Bullet Coaxial Camera EQI Series
AHC-EQI5380PTA-X-IR2R is an outdoor waterproof Bullet Coaxial Camera developed by our company, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Sensor | 8.0MP 1/2.5" low illumination CMOS sensor |
|---|---|
| Signal | XVI/AHD/TVI@8MP |
| Min.illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter time | 1/50(1/60)s to 1/10,000 s |
| Lens | HD lens 3.6mm @F2.0 |
| Lens mount | M12 |
| Day&night | IR cut filter with auto switch |
| Max.image reolution | 3840*2160 |
| Video output | 1Vp-p Composite Output(75Ω/BNC） |
| Audio I/O | N/A |
| temperature | -10℃-＋60℃ |
| humidity | 10%-90% RH |
| Power supply | DC12V±10% |
| IR range | 1*led lamps 1*white lamps,20-30 meters |
| Consumption | MAX 3W |
| Material | ABS plastic |
| Ingress Protection | IP66 |
| Weight | Around 170g |
| Dimension | φ69mm*156mm |
Photos
Files
- Parameters-for-AHC-EQI5380PTA-X-IR2R.pdf (document, 231 KB)
