BNVR9004Q-XUW
Wi-Fi Base Station
- Maker:
- Xiongmai
- Device IDs:
- 0000023V
- Listed:
- 2023
JFTech
4ch 5MP Wi-Fi Base Station
BNVR9004Q-XUW is a 4-channel 5MP Wi-Fi base station developed by our company, which enhances Wi-Fi signals, improves connection stability, and supports 4-channel 5M Wi-Fi camera access; Support recording local TF card storage, cloud storage; Support vigilance linkage. warehouses and other scenes.
| Main Processor | XM530 |
|---|---|
| Operating System | Embedded Linux operating system |
| Video Access | 4CH 5M Wi-Fi camera |
| TF Card Storage | Support,MAX 128G |
| Cloud Storage | Support |
| Video Search | Mobile APP search |
| Video Compression | H.265Ai |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Compression | G.711a |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| TF Card Interface | 1 pc (Max. 128G) |
| Button | Reset Button |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Power Supply | DC5V |
| Power Consumption | 5W MAX |
| Bare Weight | About 120g |
| Dimensions | About 182mm*133mm*23mm |

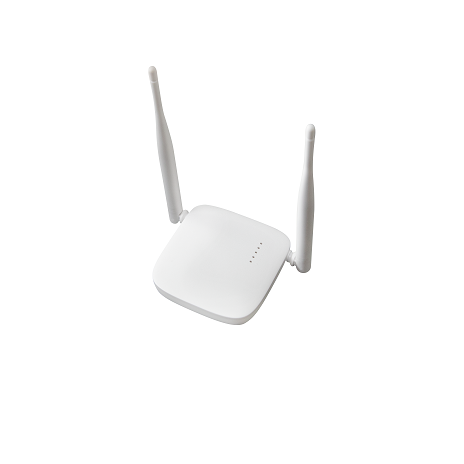

Photos
Files
- Parameters-for-BNVR9004Q-XUW.pdf (document, 233 KB)
