BNVR9004Q2-NUW
Wi-Fi Base Station
- Maker:
- Xiongmai
- Device IDs:
- 0000024A
- Listed:
- 2023
JFTech
4ch 5MP Wi-Fi Base Station
BNVR9004Q2-NUW is a 4-channel 5MP Wi-Fi base station developed by our company, which enhances Wi-Fi signal and improves connection stability. Support access to 4CH 5M Wi-Fi camera, IOT alarm sensor. Comes with alarm light, voice broadcast reminder, support access equipment vigilance linkage. Support recording local TF card storage, cloud storage.
| Main Processor | NT98562 |
|---|---|
| Operating System | Embedded Linux operating system |
| Video Access | 4CH 5M Wi-Fi camera |
| Playback | 4CH 5M |
| TF Card Storage | Support,MAX 128G |
| Cloud Storage | Support |
| Video Search | Mobile APP search |
| Video Compression | H.265AI/H.265+ |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Compression | G.711a |
| Wired Network | 1*RJ45 (10M / 100M Adaptive Ethernet Port) |
| TF Card Interface | 1 pc (Max. 128G) |
| Button | 1*Reset Button/1*Pairing Button |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Power Supply | DC5V |
| Power Consumption | 5W MAX |
| Bare Weight | About 275g |
| Dimensions | About 89mm*89mm*130mm |

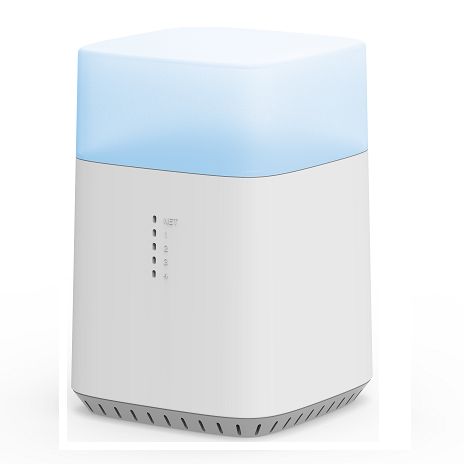

Photos
Files
- Parameters-for-BNVR9004Q2-NUW.pdf (document, 248 KB)
