EGL-4DU
Battery Camera
- Maker:
- Xiongmai
- SoC:
- GK7202V300
- Device IDs:
- 000729Q2
- Listed:
- 2023
JFTech
4MP Floodlight Battery Camera
EGL-4DU is an 4MP Floodlight camera developed by our company with built-in battery power, low power consumption design, ultra-long standby. Night support to open the Floodlight, the brightness can be adjusted, trigger PIR detection, Floodlight automatically open, suitable for villa yard, supermarkets,
| Image Sensor | 1/3" Low illumination Sensor |
|---|---|
| Min. Illumination | Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Speed | 1/50(1/60)s to 1/10,000 s |
| Lens | 3.6mm@ F2.0 |
| Day & Night | IR-cut Filter with Auto-switching |
| brightness | 800 lumens |
| color temperature | 6000K |
| Video Compression | H.265Ai |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Compression | G.711a |
| Max. Image size | 2560*1440 |
| FPS | 12fps |
| Storage Interface | Support TF Card (max. 128G) |
| Audio Input | Built-in High Sensitivity Microphone |
| Audio Output | Built-in Speaker |
| Button | Reset Button |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Awakening Mode | APP Remote Awakening |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Power Supply | 4000mAh Lithium Battery |
| Power Consumption | 5W MAX |
| Bare Weight | About 360g |
| Dimensions | About 117mm*85mm*86mm |

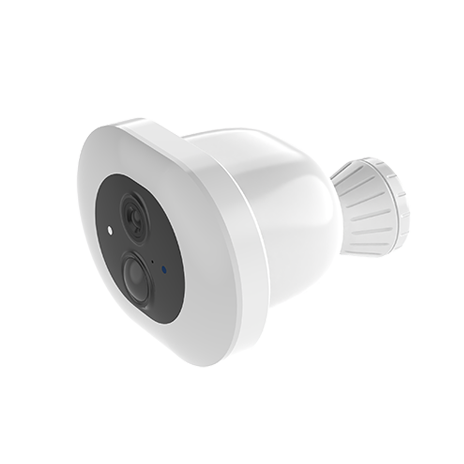

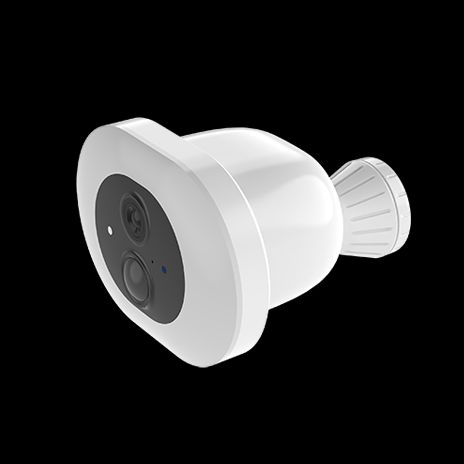

Photos
Files
- file (document, 234 KB)
