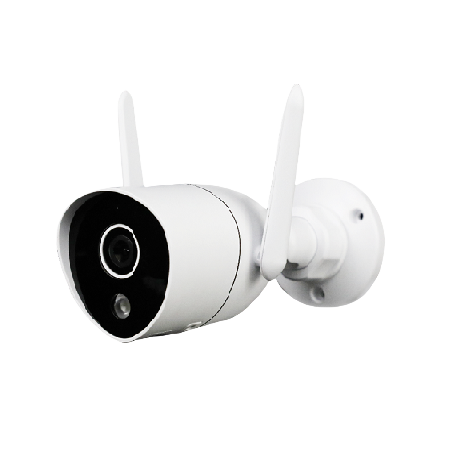

EHA-2D
Wi-Fi Camera
- Maker:
- Xiongmai
- SoC:
- XM530
- Device IDs:
- E92306B6
- Listed:
- 2023
JFTech
2MP Dual Light Wi-Fi Camera
EHA-2D is an outdoor WiFi dual-light waterproof gun camera developed by our company, which supports human detection, dual-light alert, and full-color night vision. It is suitable for home outdoor, villa, park, scenic spot, parking lot and other monitoring places.
| Sensor | 2MP 1/2.8" Low illumination Sensor |
|---|---|
| Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter time | 1/50(1/60)s to 1/10,000 s |
| Lens | HD lens 4mm@F2.0 ( Optional 6mm) |
| Lens mount | M12 |
| Day & Night | IR cut filter with auto switch |
| Video | H.264+/H.265X/H.265 High Profile, JPEG Capture |
| Coding rate | 0.1Mbps~8Mbps |
| Audio | G.711a |
| Max. Image size | 1920*1080 |
| FPS | Default 1080P@12fps (Maximum 1080P@30fps) |
| Network | Support three connection modes: wired /wireless/AP connection |
| Features | 2Mp HD picture quality；AI human detection；Personal voice ringtone；day and night full-color；support two-way talk；support local TF card；Support cloud storage；IP66；Mobile phone remote monitoring |
| Temperature/Humidity | -10℃~60℃, Humidity less than 90% (non-condensing) |
| Power supply | DC12V±10% |
| IR range | 10-30 meters |
| Consumption | MAX 6W |
| Ingress Protection | IP66 |
| Weight | About 300g |
| Dimension | 112mm*169mm*111mm |
Photos
Files
- Parameters-for-EHA-2D.pdf (document, 401 KB)
