HN-4P-GS
Network Camera
- Maker:
- Xiongmai
- Listed:
- 2025
JFTech
4MP PoE Dual-light Dome IP Camera HN Series
HN-4P-GS is a waterproof Dome network camera, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Image Sensor | 1/3" CMOS Sensor |
|---|---|
| Min. Illumination | Color:0.0001Lux;B/W:0.0001 Lux |
| Shutter Speed | 1/50(1/60)s to 1/10,000s |
| Day&Night | IR cut filter with auto switch |
| Adjust angle | Horizontal 0~360°,vertical 0~75° |
| Focal length | 2.8mm/4mm |
| Viewing angle | 4mm D*H*V：92°*78°*38° 2.8mm D*H*V：114°*97°*52° |
| Lens Mount | M12 |
| Lens aperture | F2.0 |
| Led | 2*Dual light bead |
| range | Infrared 30 meters, white light 20 meters |
| Max reolution | 2560*1440 |
| Frame Rate | 2560*1440@30fps,2304*1296@30fps, 1920*1080@30fps |
| Video Coding | H.265AI |
| Bite Rate | 0.1Mbps~10Mbps |
| Aideo Coding | G.711a |
| MIC | Sensitivity:- 33±3dBm; Signal to noise ratio:≥ 60dB; Pick up distance: 5 meters |
| Speaker | Power:1.5W; Rated impedance:8Ω |
| Network | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6) |
| Interface | GB/T28181,GA/T1400,onvif |
| Browser | Chrome，Firefox，Edge |
| Settings | Image can be adjusted through the client or browser |
| Enhancement | Backlight compensation, glare suppression, 3D digital noise reduction |
| WDR | support |
| Network | 1*10/100Mbps Ethernet port, RJ45 port |
| Power Supply | Ø5.5 mm |
| TF card slot | 1*TF Card interface (max 256G) |
| Button | 1*Reset Button |
| AI functions | humanoid/Face//Vehicle detection |
| Temperature | -10℃-＋60℃ |
| Humidity | 10%-95% RH |
| Power Supply | DC12V±10%/POE48V 0.3A |
| Consumption | MAX 5W |
| Material | ABS plastic+Metal |
| Waterproof | IP66 |
| Weight | Around 260g |
| Mounting | Wall mounted, top mounted |
| Dimension | Φ101.59*73.35mm |

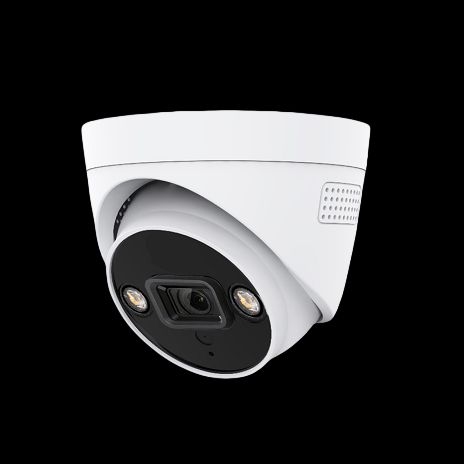

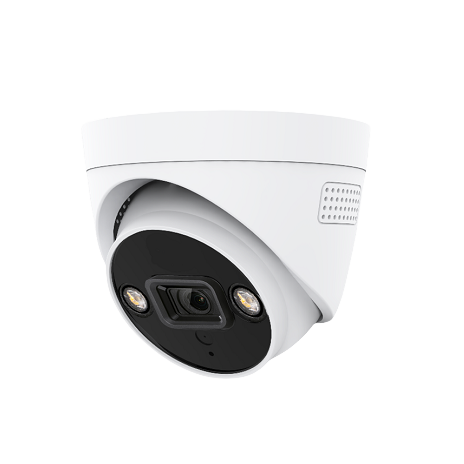

Photos
Files
- Parameters-for-HN-4P-GS.pdf (document, 289 KB)
