IDY3-4R
Smart Video Doorbell
- Maker:
- Xiongmai
- SoC:
- GK7202V300
- Device IDs:
- 000729ML
- Listed:
- 2023
JFTech

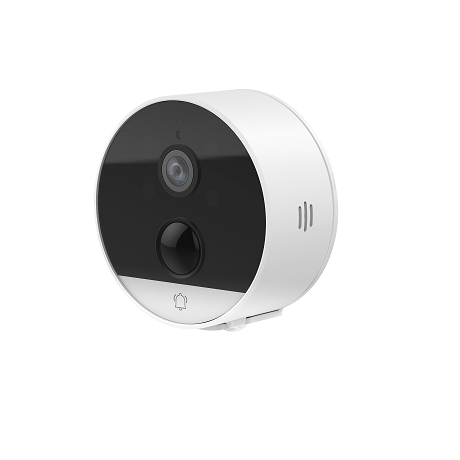

4MP Smart Video Doorbell
IDY3-4R is an 4MP smart video doorbell developed by our company, with low power consumption design and super long standby time. Support APP remote preview real-time monitoring screen, widely used in families, apartments, villas.
| Image Sensor | 1/3" Low illumination Sensor |
|---|---|
| Min. Illumination | Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR; B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Speed | 1/50(1/60)s to 1/10,000 s |
| Lens | 3.0mm@ F2.2 |
| Viewing Angle | 138°×102°×72° |
| Day & Night | IR-cut Filter with Auto-switching |
| IR Distance | 8m (varies with environment) |
| Video Compression | H.265Ai |
| Output Bit Rate | 0.1Mbps~8Mbps |
| Audio Compression | G.711a |
| Max. Image size | 2560*1440 |
| FPS | 12fps |
| Storage Interface | Support TF Card (max. 128G) |
| Audio Input | Built-in High Sensitivity Microphone |
| Audio Output | Built-in Speaker |
| Button | Doorbell button; Reset Button |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Awakening Mode | Ring Awakening/APP Remote Awakening |
| Operating Temperature | -10℃~60℃ |
| Operating Humidity | Humidity less than 90% (non-condensing) |
| Power Supply | 4000mAh Lithium Battery |
| Power Consumption | 5W MAX |
| Bare Weight | About 176g |
| Dimensions | About 78mm*38mm*83mm |
Photos
Files
- Parameters-for-IDY3-4R.pdf (document, 239 KB)
