IOTG-LKA-X2
Video Door Lock Module
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech
2MP Video Door Lock Module
IOTG-LKA-X2 is an 1080P AHD smart video door lock module developed by our company, which is mainly used in smart video door locks.
| Model | IOTG-LKA-X2 |
|---|---|
| System Structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
| LCD Screen | 4"/4.5"/5" |
| Day&Night | Infrared |
| Lens | 3.2mm-F2.2, height 14.5±0.5mm, viewing angle: diagonal 130° |
| Image Output | Main stream: 1920*1080; sub-stream: 800*480 |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Antenna Interface | external antenna |
| Button | 1* Left and right buttons; 1* Wake button; 1* Up and down buttons |
| Network configuration | QR code |
| Remote wake-up | support |
| Video intercom | support |
| Push messages | Door opening message, doorbell call, stay alarm, anti-prying alarm, trial and error alarm, etc |
| Business Functions | Support mobile phone remote monitoring; Cloud Phone; Message push; MJPEG capture |
| Storage Mode | cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | DC6.6V-8.4V |
| Dimension | 47mm*48mm |

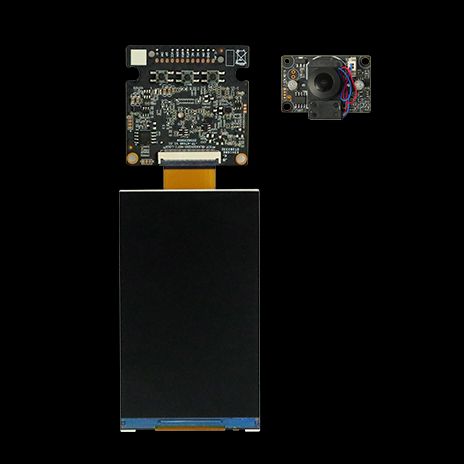

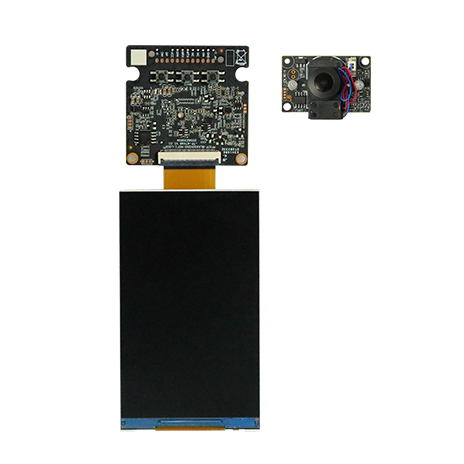

Photos
Files

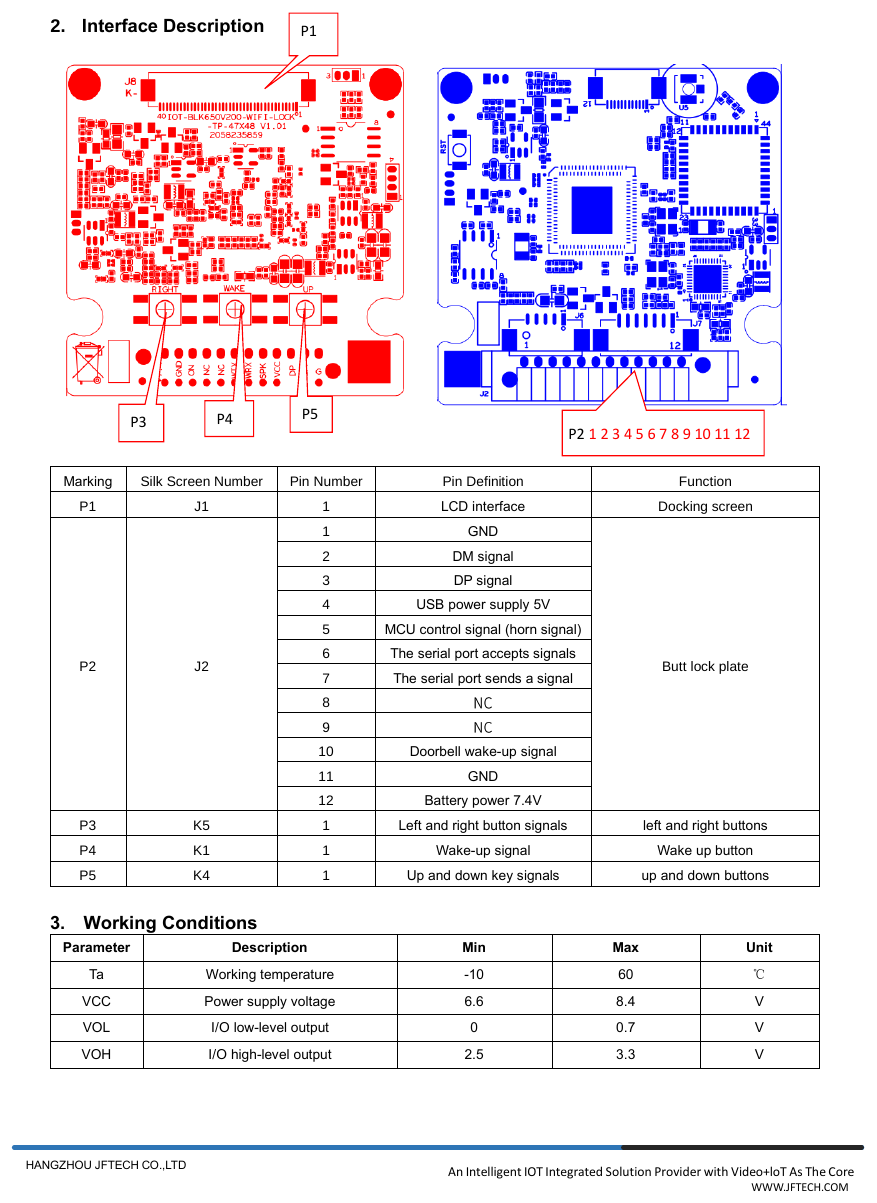

- IOTG-LKA-X2-pinout-1.png (pinout, 202 KB)
- Parameters-for-IOTG-LKA-X2.pdf (document, 418 KB)
