IOTG-LKH-X2-L2
Video Door Lock Module
- Maker:
- Xiongmai
- Listed:
- 2024
JFTech
2MP Dual-lens Video Door Lock Module
IOTG-LKH-X2-L2 is a 2MP dual-lens USB smart before and after video door lock module developed by our company, which supports two-way video intercom and is mainly used in intelligent video door locks.
| Model | IOTG-LKH-X2-L2 |
|---|---|
| System Structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
| LCD Screen | 4"/4.5"/5" |
| Day&Night | Infrared |
| Lens | Lens1：USB lens module 2.5mm-F2.0, height 12.5±0.5mm, viewing angle: diagonal 155° Lens2：mipi lens module , height 5.4±0.2mm, viewing angle: diagonal 120° |
| Image Output | Main stream: 1920*1080; sub-stream: 800*480 |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265 |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Antenna Interface | external antenna |
| Button | 1* Left button; 1* Wake button; 1* Right button |
| Network configuration | QR code |
| Remote wake-up | support |
| Video intercom | support |
| Push messages | Door opening message, doorbell call, stay alarm, anti-prying alarm, trial and error alarm, etc |
| Business Functions | Support mobile phone remote monitoring; Cloud Phone; Message push; MJPEG capture |
| Storage Mode | cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | DC6.6V-8.4V |
| Dimension | 60mm*60mm+27mm*22mm/60mm*36mm+27mm*22mm |

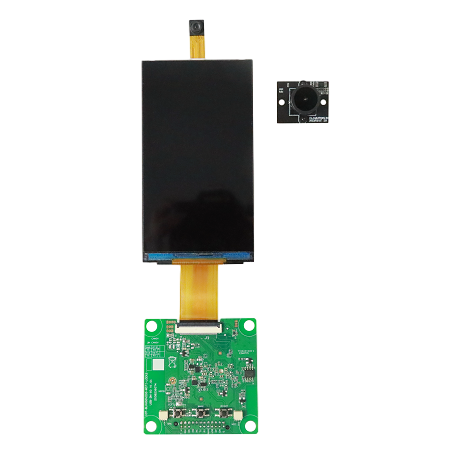

Photos
Files

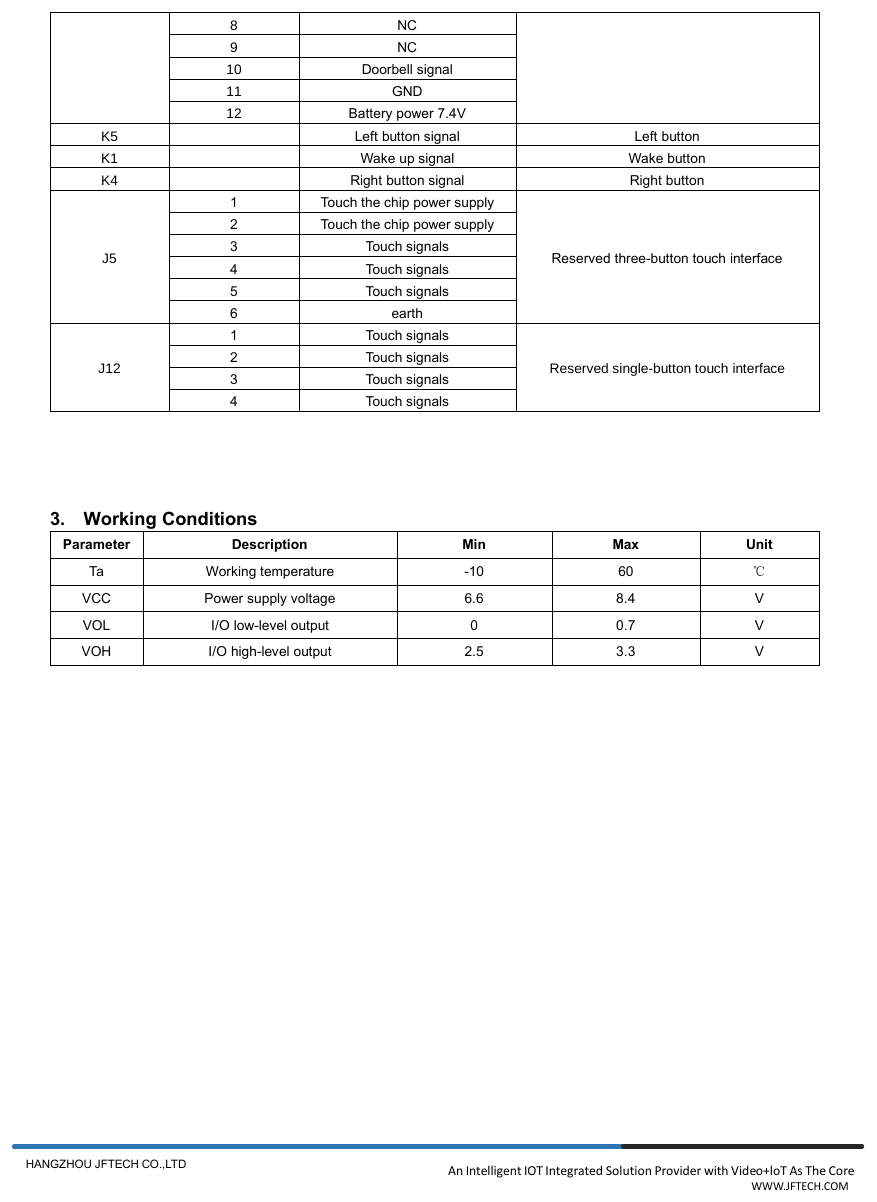

- IOTG-LKH-X2-L2-pinout-3.png (pinout, 77 KB)

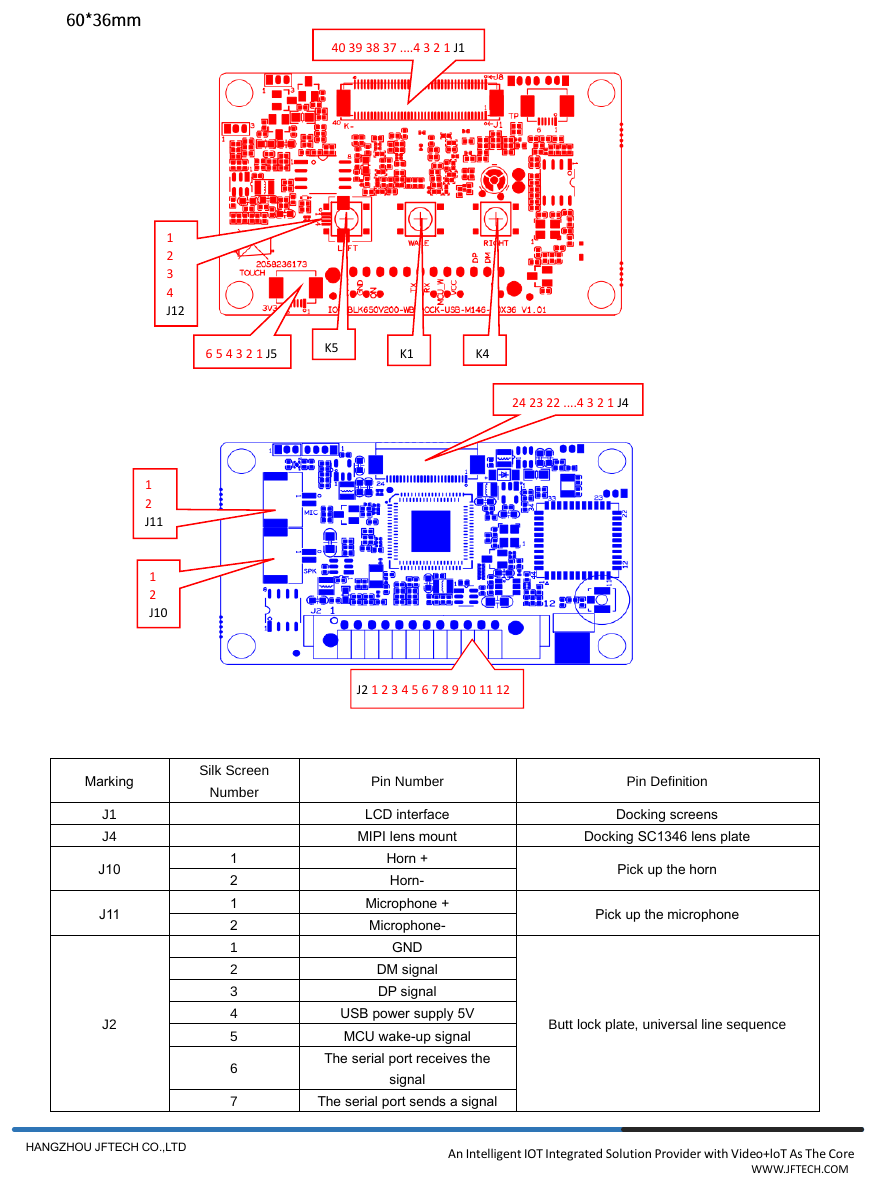

- IOTG-LKH-X2-L2-pinout-2.png (pinout, 172 KB)

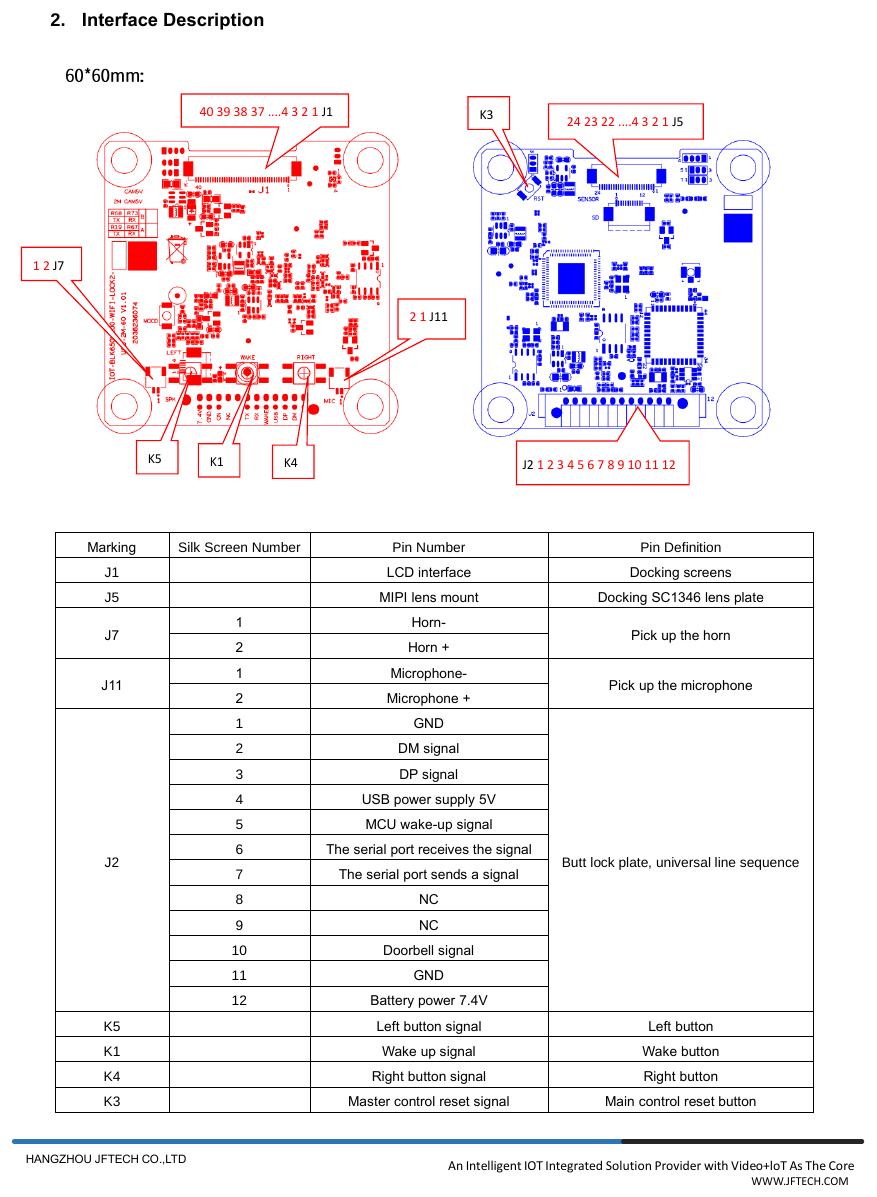

- IOTG-LKH-X2-L2-pinout-1.png (pinout, 179 KB)
- Parameters-for-IOTG-LKH-X2-L2.pdf (document, 559 KB)
