IOTG-P1WB-LS3
Pet Feeder Module
- Maker:
- Xiongmai
- Listed:
- 2023
JFTech
0.3MP Video Pet Feeder Module
IOTG-P1WB-LS3 is n 0.3MP visual pet feeder module developed by our company, which supports remote timing and quantitative feeding, mainly used in smart pet feeders.
| Model | IOTG-P1WB-LS3 |
|---|---|
| System Structure | dual-core 32-bit DSP, pure hard compression ,watch dog |
| Sensor | 1/6.5" high performance CMOS Sensor |
| Min. Illumination | Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black/White: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | 0.3MP - (FPC-5cm) 18PIN- (GC0308-591002) filter |
| Day&Night | Support IR-CUT |
| Image Output | 640*480@6fps |
| DNR | Support 2D/3D DNR |
| WDR | Support |
| Video Compression | H.265AI |
| Audio Compression | G.711A |
| Audio Interface | 1 channel input, support microphone input; 1 channel output, support speaker output playback |
| Network Interface | 1*Wi-Fi antenna interface to support wireless network connection |
| Signal Interface | 1*photoresistor interface, 1*IR-CUT driver interface, support photoresistor input signal and IR-CUT, IR lamp linkage |
| Button | 1*Feed button, 1*Setup button, 1*Record button |
| Business Functions | Support cell phone remote monitoring; alarm message push; MJPEG capture |
| Storage Mode | cloud storage |
| Mobile Monitoring | Support（iOS，Android） |
| Reliability | Comprehensive lightning protection; 3*24 hours high temperature test stable and reliable |
| Power Supply | DC5V |
| Dimension | 60mm*50mm |

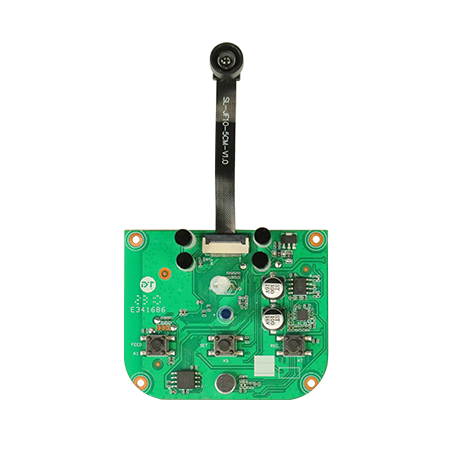

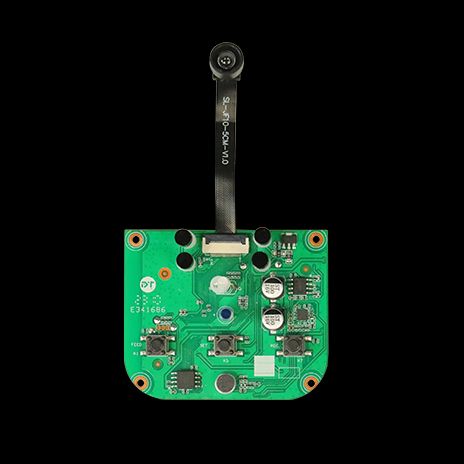

Photos
Files

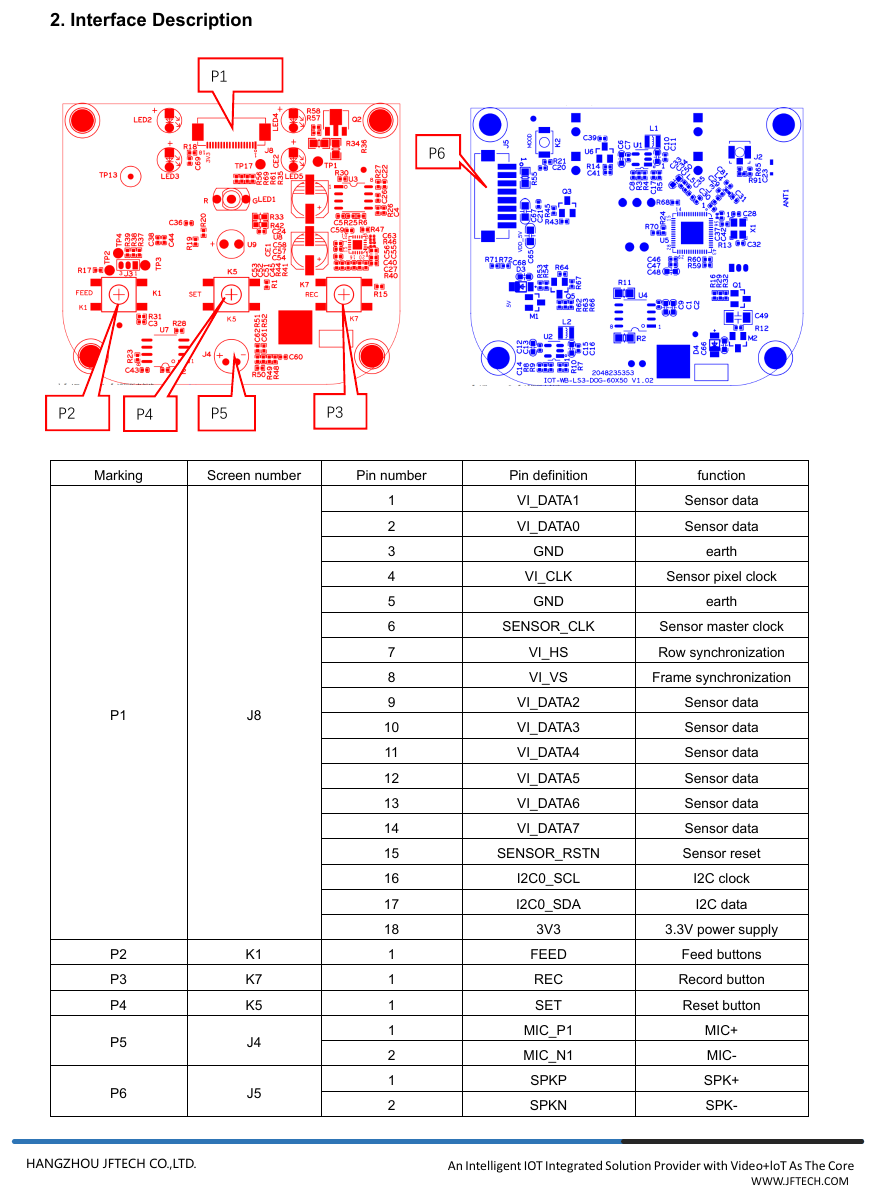

- IOTG-P1WB-LS3-pinout-1.png (pinout, 200 KB)
- Parameters-for-IOTG-P1WB-LS3.pdf (document, 611 KB)
